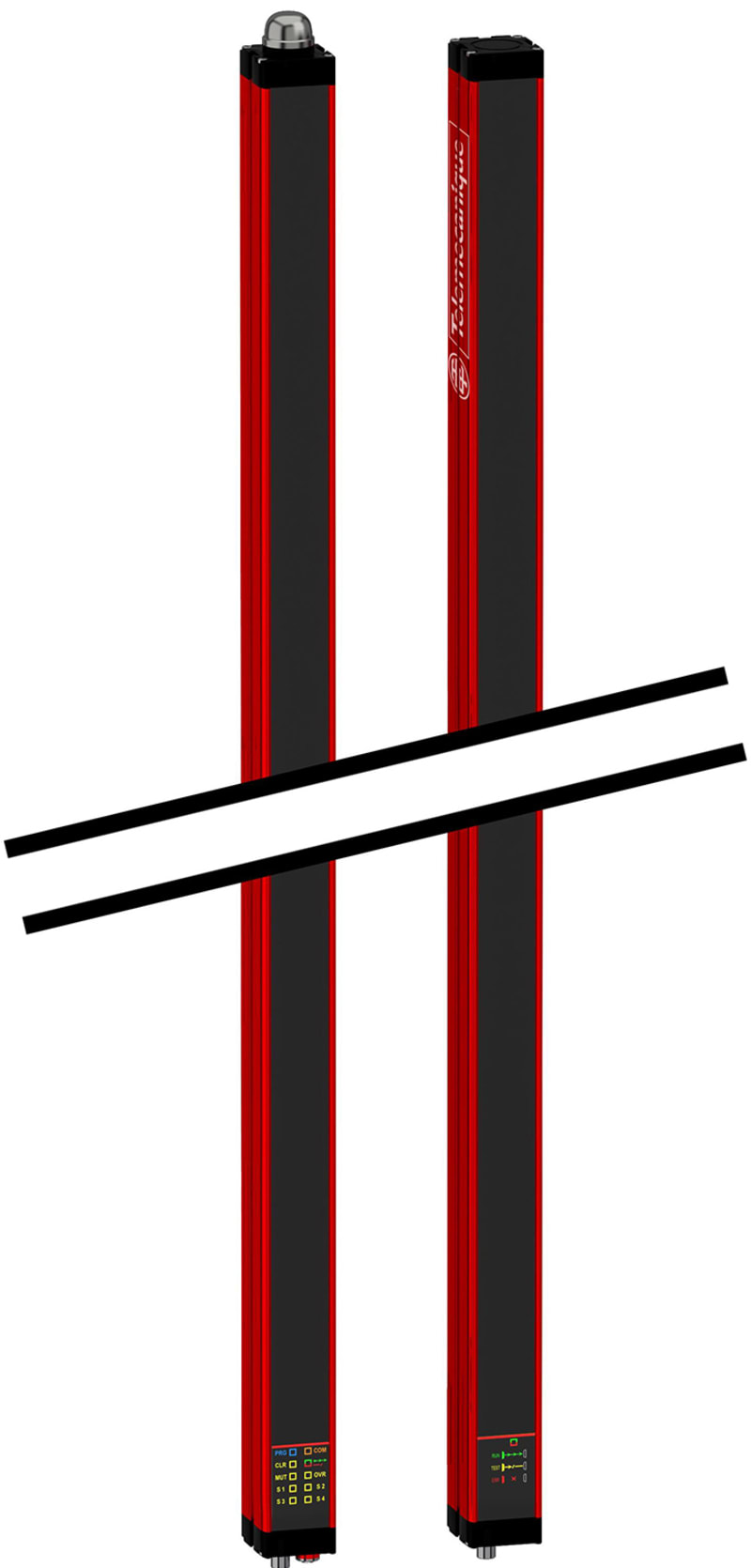

Telemecanique XUSL4MA30H106N Type 4 Safety Light Grille with Integrated Muting, 1060 mm protected height

Telemecanique XUSL4MA30H106N type 4 safety light grille with integrated muting function, 1060 mm protected height, for conveyor and palletiser openings where material must pass but persons must be detected.

Manufacturer part number (MPN)

XUSL4MA30H106N

EAN / GTIN

3666916027523

Sales unit

pcs

Number of protected semiconductor outputs

2

Fade-out possible

No

Type of switching output of the OSSD

PNP

Type of electric connection

Connector M12

Operation agent-safety class

Safety class 3

Width sensor

50 mm

Height of sensor

1170 mm

Length of sensor

55 mm

Explosion safety category for gas

None

Explosion safety category for dust

None

Cascadable

No

Scope of delivery of the one-way system

Transmitter and receiver

Max. output current at protected output

400 mA

With muting function

Yes

Override possible

No

Response time

16 ms

Reduced resolution

Yes

Transmission range of the safety field

12 m

Switching voltage of OSSD at state "high"

24 V

Safety field height

1060 mm

Type of safety according to IEC 61496-1

4

Voltage type

DC

With beam coding

No

Clock control possible

No

With monitoring function downstream switching devices

No

Wavelength of the sensor

950 nm

With restart blockage

Yes

Suitable for safety functions

Yes

Degree of protection (IP)

IP67

Country of origin

Italy

HS Code

8536.50
