Telemecanique Preventa Guard Interlock Switch Plastic 120 V 2 NC + 2 NC M20
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSLE2727332 is a mechanical safety interlock switch with solenoid locking, housed in a plastic body. It uses a 120 V AC/DC magnet drive on the operating-current principle and carries a 2 NC + 2 NC contact configuration with a 20 N guard-locking force. The cable entry is ISO M20 metric and the unit is rated IP67K.
Technical Specifications
- Manufacturer part number (MPN)
- XCSLE2727332
- EAN / GTIN
- 3666916048009
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 120 V
- Contact configuration
- 2 NC + 2 NC
- Type of locking
- Operating current principle
- Rated operation current Ie at AC-15, 230 V
- 0.75 A
- Housing material
- Plastic
- Suitable for safety functions
- Yes
- With status indication
- Yes
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 120 V
- Rated control supply voltage magnet drive AC 60 Hz
- 120 V
- Rated control supply voltage magnet drive DC
- 120 V
- Rated operation current Ie at DC-13, 24 V
- 0.55 A
- Width sensor
- 44 mm
- With escape release
- No
- Height of sensor
- 205 mm
- Length of sensor
- 51 mm
- Ambient temperature during operating
- -25–60 °C
- Guard locking force
- 20 N
- Number of contacts as normally closed contact
- 2
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916048009
- SAP 1000336168
- Code 8367576
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLB010A2S12 Pressure Switch, 0.7–10 bar
Telemecanique
Telemecanique OsiSense XS512B1MBL2 Inductive Proximity Sensor — M12 barrel, Sn 2 mm, 2-Wire AC/DC, NC, pre-wired cable (2 m)
Telemecanique

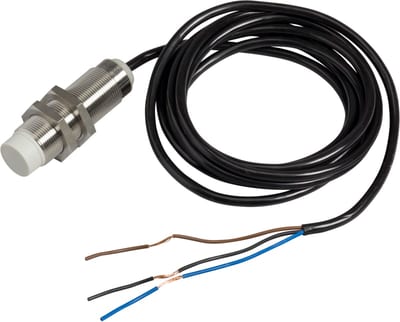

Telemecanique OsiSense XS218SAPAL2 Inductive Proximity Sensor — M18 stainless barrel, Sn 12 mm, PNP, NO, pre-wired cable
Telemecanique
Telemecanique OsiSense XS512B1MAU20 Inductive Proximity Sensor — M12 barrel, Sn 2 mm, 2-Wire AC/DC, NO, pre-wired cable (2 m)
Telemecanique

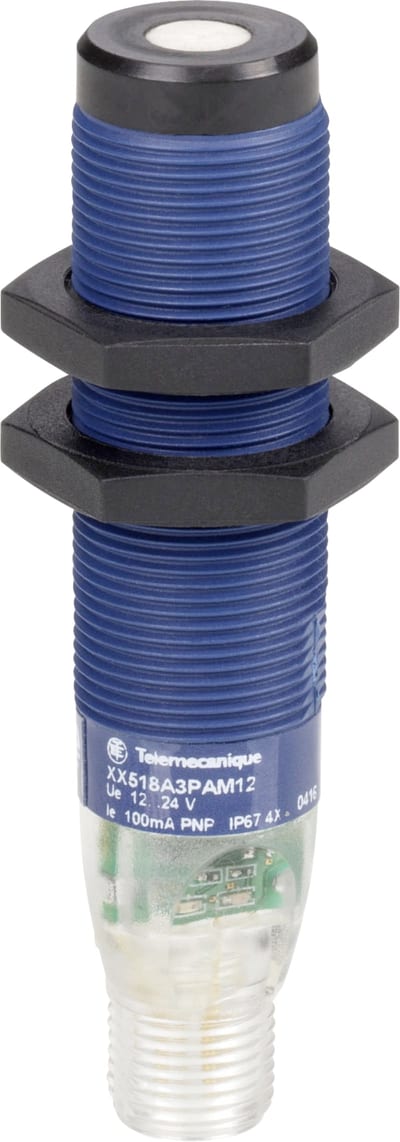

Telemecanique XXB18A3PAM12 Ultrasonic Sensor (Reflex) M18, PNP, NO, Range 0.5 m, M12 connector
Telemecanique

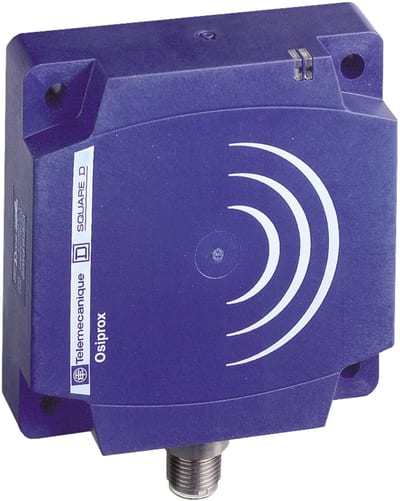

Telemecanique OsiSense XS8D1A1PBM12 Inductive Proximity Sensor — 80 × 80 mm block, Sn 60 mm, PNP, NC, M12 connector (4-Pin)
Telemecanique
Telemecanique XUSL4E14F031N Safety Light Curtain Type 4, Finger Detection (14 mm), 310 mm Height
Telemecanique
Telemecanique XMLB300D2S12 Pressure Switch, 22–300 bar
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSLE2727332?
- XCSLE2727332 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSLE2727332.
- What is the HS code for XCSLE2727332?
- The customs tariff (HS) code for XCSLE2727332 is 8536.50.
- Who manufactures XCSLE2727332?
- XCSLE2727332 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XCSLE2727332?
- Yes — the XCSLE2727332 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSLE2727332?
- The minimum order quantity is 1.
- Is XCSLE2727332 available?
- Yes — XCSLE2727332 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
