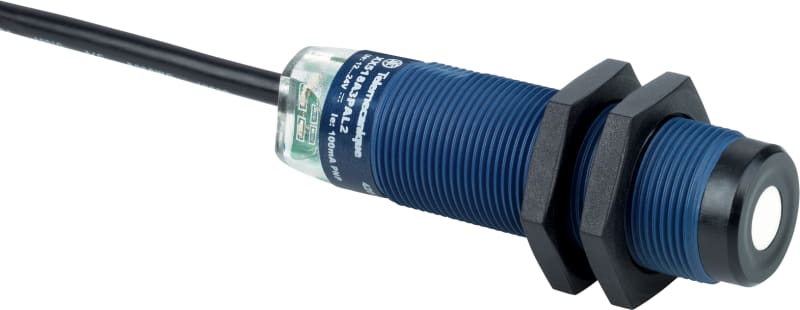

Telemecanique XX918A3C2M12 Ultrasonic Sensor, Sn 0.5 m, 4–20 mA, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XX918A3C2M12 OsiSense XX ultrasonic proximity sensor, Sn 0.5 m, 4–20 mA output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XX918A3C2M12
- EAN / GTIN
- 3666916080450
- Sales unit
- pcs
- Diameter
- 18 mm
- Nominal sensing distance Sn
- 0.5 m
- Output signal
- 4–20 mA
- Voltage type
- DC
- Housing material
- Plastic
- Ambient temperature
- -20–65 °C
- Type of analogy output
- 4 mA ... 20 mA
- Type of electric connection
- Connector M12
- Blind zone
- 51 mm
- Setting procedure
- Teach-In
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 40 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 1.27 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Length of sensor
- 77.6 mm
- Adjustable distance
- 51–508 mm
- Measuring range length
- 51–508 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916080450
- SAP 1000018695
- Code 8146780
Product Documentation
