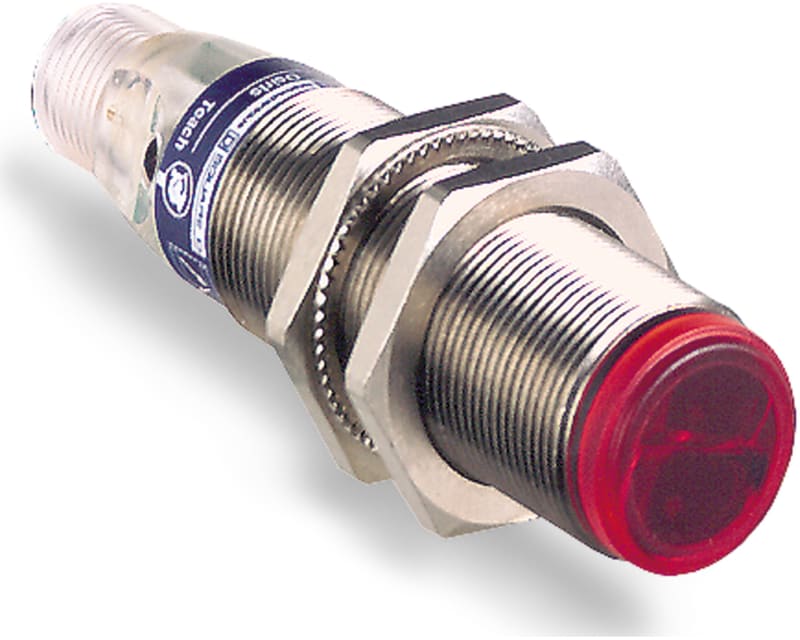

Telemecanique XUB9BPANM12 Photoelectric Sensor, Polarised Reflex, Metal, PNP, NO, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique OsiSense XUB9BPANM12 photoelectric sensor, polarised reflex, Ø18 mm (M18), metal housing, PNP NO output, rated distance 2 m, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUB9BPANM12
- EAN / GTIN
- 3666916035740
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Output type
- PNP
- Contact configuration
- NO
- Pre failure notice
- No
- With time function
- No
- Rated switching distance
- 2000 mm
- Max. switching distance
- 3000 mm
- Max. output current
- 100 mA
- With reflector
- No
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output 4 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- With other analogue output
- No
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Number of semiconductor outputs with signalling function
- 1
- Type of electric connection
- Connector M12
- Type of switching output
- PNP/PNP
- Type of switch function
- Normally open contact (NO)
- Operation agent-safety class
- Safety class 0
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- Diameter sensor
- 18 mm
- Length of sensor
- 60 mm
- Sensing mode
- Dark switching
- Material of optical surface
- Plastic
- Housing material
- Metal
- Max. output current at protected output
- 100 mA
- Min. reflector distance
- 1000 mm
- Response time
- 1 ms
- Switching frequency
- 500 Hz
- Type of safety according to IEC 61496-1
- 1
- Voltage type
- AC/DC
- With monitoring function downstream switching devices
- No
- Laser protection class
- None
- Type of light
- Polarized red light
- With restart blockage
- No
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP65
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916035740
- SAP 1000080000
- Code 8843396
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUSL4MB40H136N Type 4 Safety Light Grille with Integrated Muting, 1360 mm protected height
Telemecanique
Telemecanique ZB5AW513 Illuminated Pushbutton Head, White, for LED Module, Harmony XB5 (plastic)
Telemecanique
Telemecanique XZCP1241L20 Sensor Cable, M12 female angled, 4-pin, 20 m
Telemecanique
Telemecanique XUSL4E2BB051NS2 Safety Light Grid Type 4, Body Detection, 2 Beams, 510 mm
Telemecanique
Telemecanique XUYFALNEP100030 Laser Fork Sensor 95 × 30 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique OsiSense XS530BLPBL2 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, PNP, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique ZCY59 Actuator Lever for ZC2/XC Standard Limit Switches
Telemecanique
Telemecanique XY2CE6A297 Emergency Stop Rope Pull Switch, Left-Hand, with Indicator Lamp
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUB9BPANM12?
- XUB9BPANM12 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUB9BPANM12.
- What is the HS code for XUB9BPANM12?
- The customs tariff (HS) code for XUB9BPANM12 is 8536.50.
- Who manufactures XUB9BPANM12?
- XUB9BPANM12 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUB9BPANM12?
- Yes — the XUB9BPANM12 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUB9BPANM12?
- The minimum order quantity is 1.
- Is XUB9BPANM12 available?
- Yes — XUB9BPANM12 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
