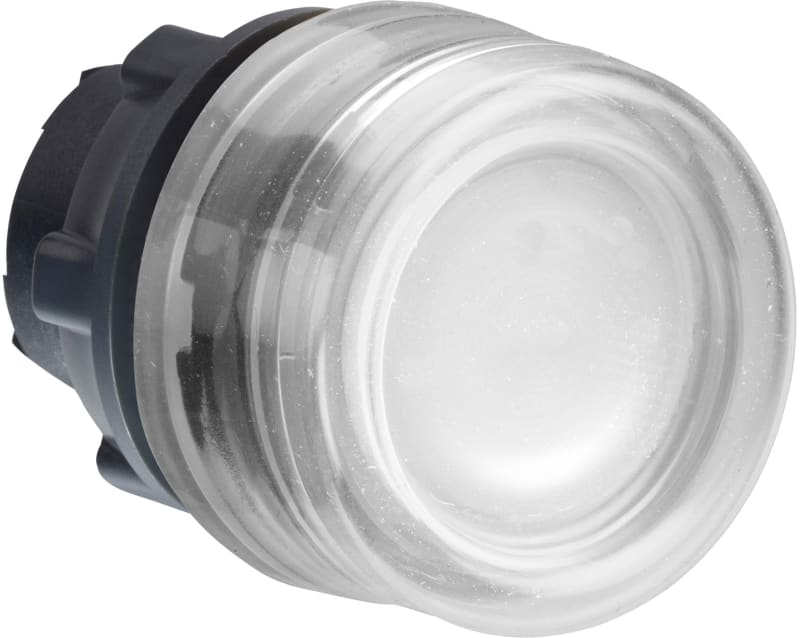

Telemecanique ZB5AW513 Illuminated Pushbutton Head, White, for LED Module, Harmony XB5 (plastic)
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB5AW513 illuminated pushbutton head, white, for LED lamp module, Harmony XB5 (plastic) Ø22 mm operators.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AW513
- EAN / GTIN
- 3389110922448
- Sales unit
- pcs
- Package quantity
- 75 pcs
- Range of product
- Harmony XB5
- Product or component type
- Head for illuminated push-button
- Device short name
- ZB5
- Product compatibility
- Universal LED
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 1
- Head type
- Standard
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- White flush, unmarked
- Operator additional information
- Clear boot
- CAD overall width
- 30 mm
- CAD overall height
- 30 mm
- CAD overall depth
- 37 mm
- Product weight
- 0.019 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Mechanical durability
- 10000000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Cap/operator or lens colour
- White
- Marking
- Unmarked
- Electrical composition code
- M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks i
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110922448
- SAP 1000254220
- Code 81142897
