Telemecanique XMLB070D2S11 Pressure Switch, 7–70 bar, adjustable differential
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XMLB070D2S11 OsiSense XMLB electromechanical pressure switch, adjustable range 7–70 bar, adjustable differential.
Technical Specifications
- Manufacturer part number (MPN)
- XMLB070D2S11 EAN / GTIN: 3666916025123 Sales unit: pcs Package quantity: 13 pcs Pressure: 7-70 bar Width: 35 mm Height: 113 mm Depth: 75 mm With display: No With manual on/off switch: No Initial setting: 7000–70000 hPa End setting: 2300–61200 hPa Max. operation pressure: 90000 hPa Number of auxiliary contacts as change-over contact: 1 Type of electric connection: Screw connection Explosion-proof: No Degree of protection (IP): IP66 Switch off pressure: 2.3–61.2 bar Rated voltage Ue at AC 50 Hz: 120–240 V Rated voltage Ue at AC 60 Hz: 120–240 V Rated voltage Ue at DC: 250 V Bursting pressure: 320 bar Engaging pressure: 7–70 bar Electronic version: Yes Suitable as 2-point controller: Yes Suitable as limiter: No Suitable as guard: Yes Max. test pressure: 160 bar Medium temperature: 0–160 °C With hand operation: No Pressure-switching differential: 41.2 bar Max. operating pressure: 70000 hPa Country of origin: Czechia
Standards & Compliance
- HS Code
- 9032.20
Cross References
- EAN 3666916025123
- SAP 1000027402
- Code 8246765
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCSM safety limit switch, metal Zamak body, rotary head with thermoplastic roller lever, snap-action contacts, 2 NC + 1 NO with positive opening, 5 m pre-wired cable, IP68 XCSM3915L5
Telemecanique
Telemecanique XCKJ110513 Limit Switch
Telemecanique
Telemecanique OsiSense XS118BLPAL2 Inductive Proximity Sensor — M18 barrel, Sn 5 mm, PNP, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique XCSA502 Safety Limit Switch, 1 NC + 1 NO, M20 entry
Telemecanique
Telemecanique XMEP3K0PT230 Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique XUSZPM5AXPL09 multi-beam photocell for XUSL M, A-coded
Telemecanique
Telemecanique XMLB500D2S11 Pressure Switch, 30–500 bar, adjustable differential
Telemecanique

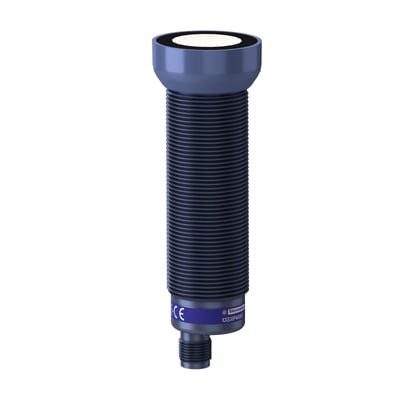

Telemecanique XXS30P4AM12 Ultrasonic Sensor, Sn 4 m, M12 connector
