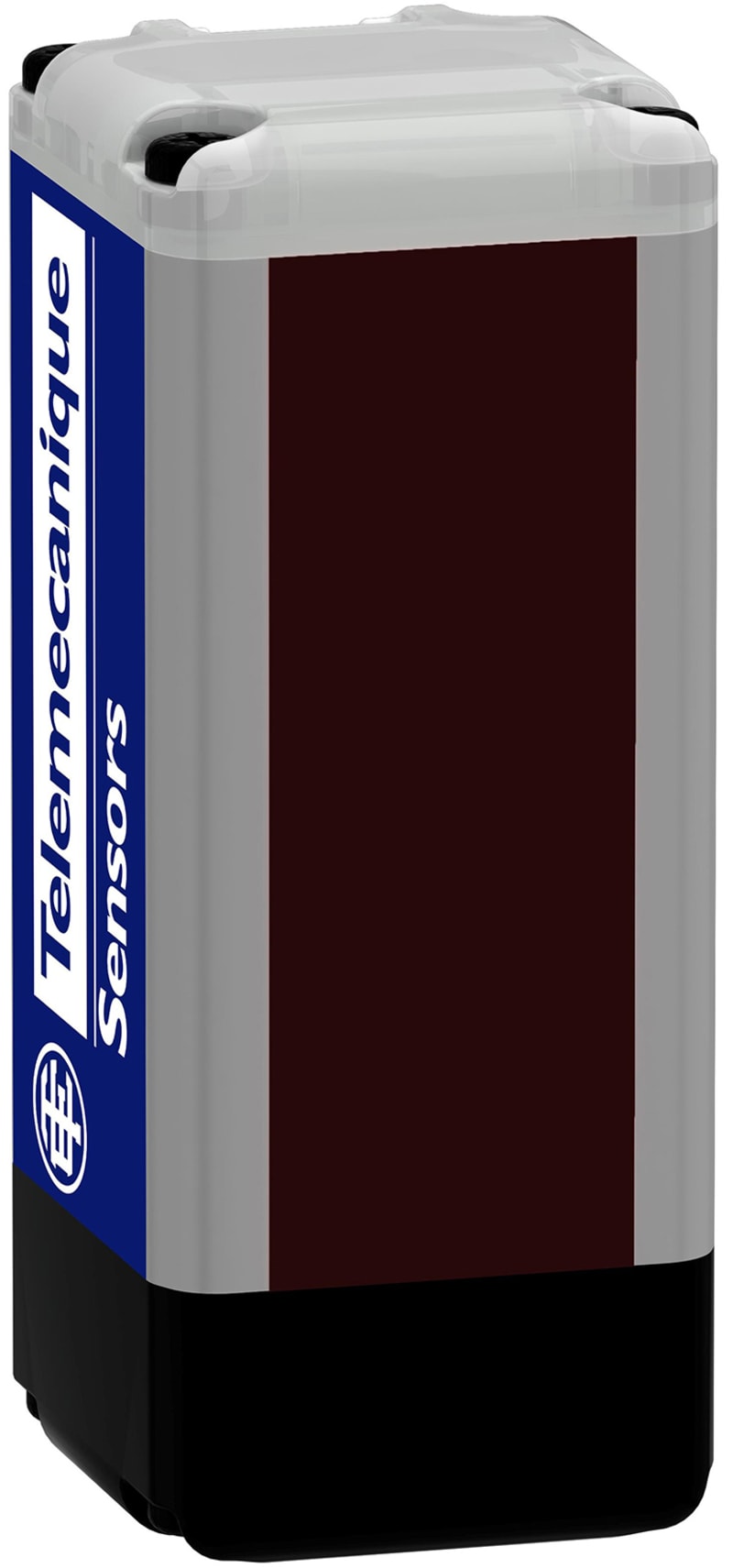

Telemecanique XUSZPM5AXPL09 multi-beam photocell for XUSL M, A-coded
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUSZPM5AXPL09 — multi-beam safety photocell one-way system (transmitter and receiver) for the XUSL M light curtain, A-coded. 3.5 m safety field with PNP OSSD outputs, muting and restart-inhibit functions, 940 nm wavelength, IP65.
Technical Specifications
- Manufacturer part number (MPN)
- XUSZPM5AXPL09
- EAN / GTIN
- 3666916026922
- Sales unit
- pcs
- Number of protected semiconductor outputs
- 1
- Fade-out possible
- No
- Type of switching output of the OSSD
- PNP
- Width sensor
- 28 mm
- Height of sensor
- 70 mm
- Length of sensor
- 30 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Cascadable
- No
- Scope of delivery of the one-way system
- Transmitter and receiver
- With muting function
- Yes
- Override possible
- No
- Response time
- 100 ms
- Reduced resolution
- Yes
- Transmission range of the safety field
- 3.5 m
- Switching voltage of OSSD at state "high"
- 24 V
- Voltage type
- DC
- With beam coding
- No
- Clock control possible
- No
- With monitoring function downstream switching devices
- No
- Wavelength of the sensor
- 940 nm
- With restart blockage
- Yes
- Suitable for safety functions
- Yes
- Degree of protection (IP)
- IP65
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916026922
- SAP 1200357494
- Code 82360692
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMLB500D2S11 Pressure Switch, 30–500 bar, adjustable differential
Telemecanique
Telemecanique XXS30P4AM12 Ultrasonic Sensor, Sn 4 m, M12 connector
Telemecanique
Push Button, Raised, Black, Marked 0
ZB5AL232
Telemecanique
Telemecanique ZB6DGC Harmony XB6 key selector head, 2-position stay-put
Telemecanique

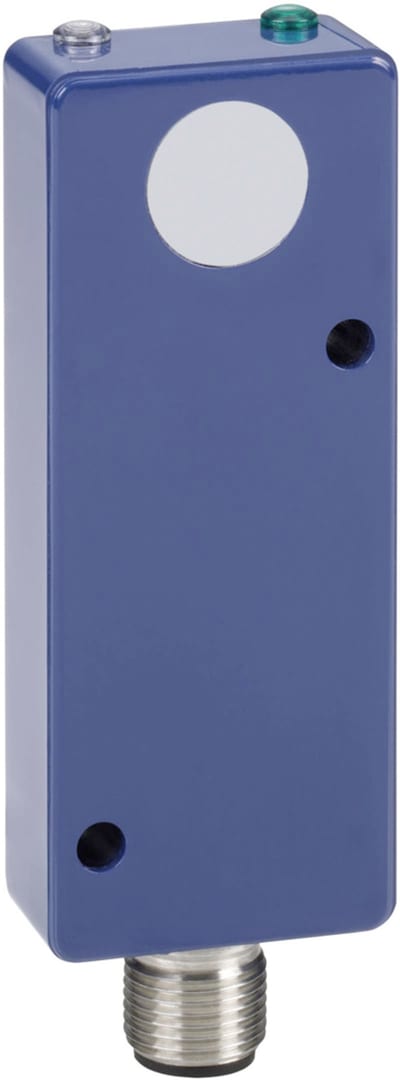

Telemecanique XX7K1A2PAM12 Ultrasonic Sensor, PNP, M12 connector
Telemecanique

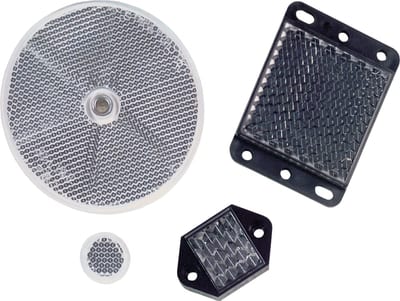

Telemecanique XUZC16 Reflector, Ø16 mm, for Photoelectric Sensors
Telemecanique

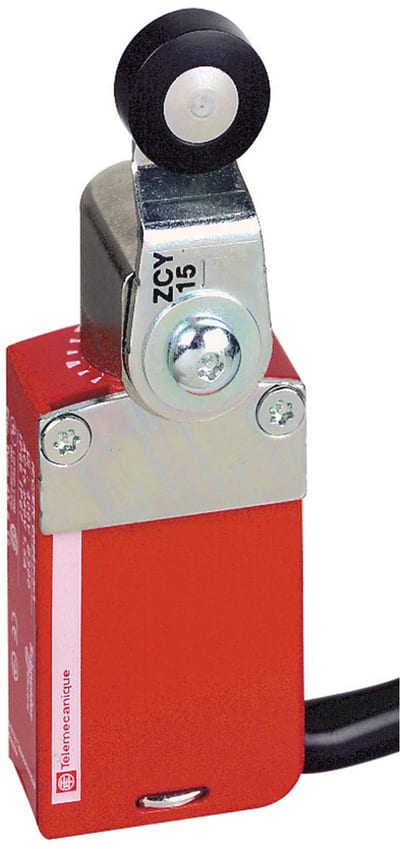

Telemecanique XCSM safety limit switch, metal Zamak body, rotary head with thermoplastic roller lever, snap-action contacts, 2 NC + 1 NO with positive opening, 1 m pre-wired cable, IP68 XCSM3915L1
Telemecanique

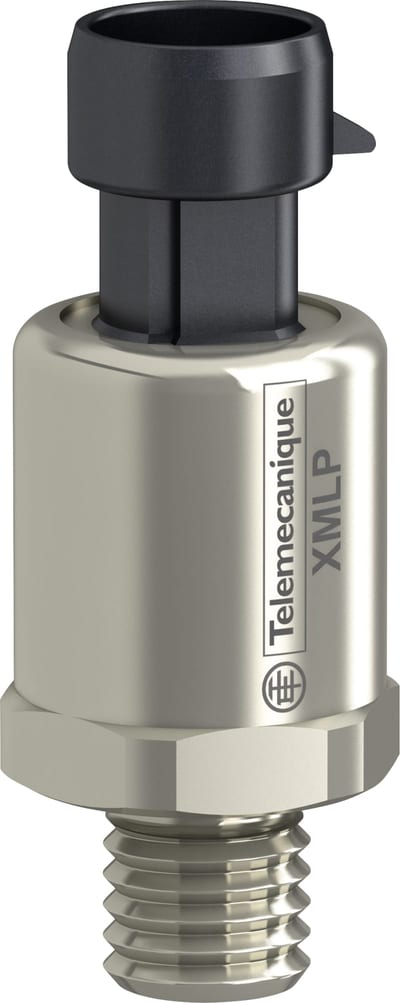

Telemecanique XMLP100PP730 Pressure Transmitter, 0–100 psi, 0.5–4.5 V ratiometric, 1/4" NPT, Packard connector
