Push Button, Raised, Black, Marked 0
Pricing
Request a quote
We reply within 24 hours
Product Description

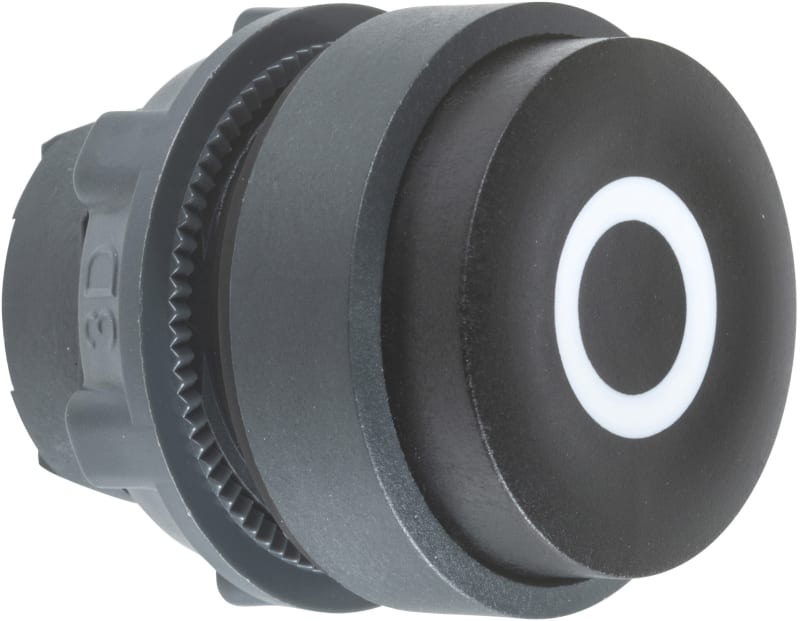

Telemecanique ZB5AL232 individual push button in plastic for use with the XB5 series. Raised black head marked 0 (white). Not an emergency-stop button.
Technical Specifications
- Manufacturer part number (MPN)
- ZB5AL232
- EAN / GTIN
- 3389110906394
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range of product
- Harmony XB5
- Product or component type
- Head for non-illuminated push-button
- Device short name
- ZB5
- Bezel material
- Dark grey plastic
- Mounting diameter
- 22 mm
- Head type
- Standard
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Black projecting, O (white)
- CAD overall width
- 29 mm
- CAD overall height
- 29 mm
- CAD overall depth
- 33 mm
- Product weight
- 0.019 kg
- Mechanical durability
- 10000000 cycles
- Station name
- XALD 1...5 cut-outs; XALK 2...5 cut-outs
- Electrical composition code
- C1 for <9 contacts using single blocks in front mounting; C2 for <9 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting; SF1 for <3 contacts using single blocks in front mounting; SR1 for <3 contacts us
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110906394
- SAP 1000256858
- Code 81143176
Product Documentation
