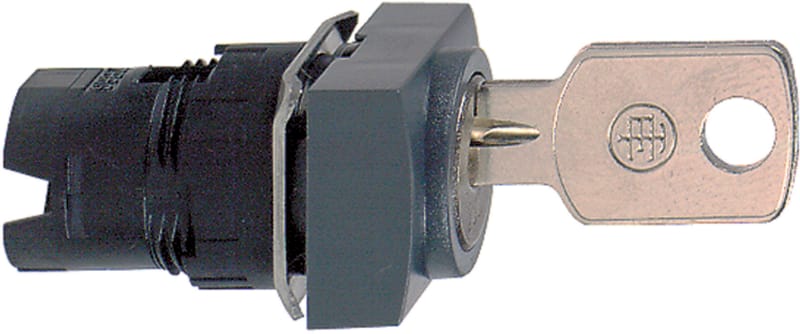

Telemecanique ZB6DGC Harmony XB6 key selector head, 2-position stay-put
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZB6DGC — Harmony XB6 head for a two-position stay-put key selector switch, 16 mm rectangular mounting, Key 200 with key withdrawal in any position. Component-level Z-series part that combines with Harmony XB6 bodies and contact blocks to form a complete unit. IP65 rating per IEC 60529, plastic bezel.
Technical Specifications
- Manufacturer part number (MPN)
- ZB6DGC
- EAN / GTIN
- 3389110785333
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Range of product
- Harmony XB6
- Product or component type
- Head for key selector switch
- Device short name
- ZB6
- Bezel material
- Plastic
- Mounting diameter
- 16 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Rectangular
- Type of operator
- stay put
- Operator profile
- Black key switch
- Operator position information
- 2 positions
- Type of keylock
- Key 200
- Key withdrawal position
- In any position
- CAD overall width
- 24 mm
- CAD overall height
- 18 mm
- CAD overall depth
- 55 mm
- Protective treatment
- TC
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- NEMA degree of protection
- NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94
- Standards
- JIS C8201-5-1; CSA C22.2 No 14; EN/IEC 60947-1; UL 508; EN/IEC 60947-5-5; EN/IEC 60947-5-1; JIS C 852; JIS C8201-1
- Product certifications
- UL; CCC; CSA; GOST
- Vibration resistance
- +/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 16.2 mm
- Number of switch positions
- 2
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Rectangular
- Type of control element
- Key
- Switching function latching
- Yes
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110785333
- SAP 1000254089
- Code 8115087
