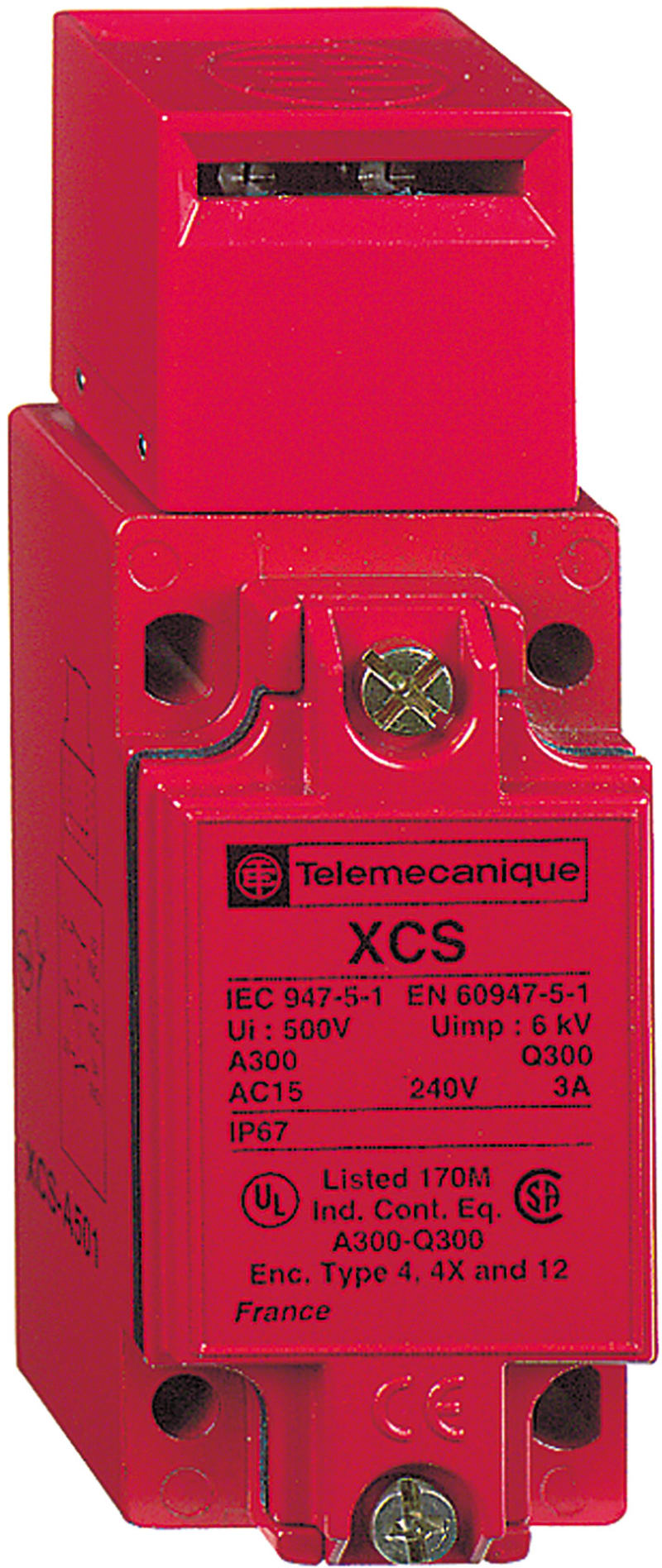

Telemecanique XCSA502 Safety Limit Switch, 1 NC + 1 NO, M20 entry
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSA502 safety limit switch with positive opening contacts, 1 NC + 1 NO contacts, M20 entry.
Technical Specifications
- Manufacturer part number (MPN)
- XCSA502
- EAN / GTIN
- 3666916049402
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Contact configuration
- NC + NO + NO
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- No
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Degree of protection (IP)
- IP67K
- Forced opening
- Yes
- Type of interface
- None
- Rated operation current Ie at AC-15, 125 V
- 6 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Width sensor
- 40 mm
- Height of sensor
- 114 mm
- Length of sensor
- 44 mm
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916049402
- SAP 1000254734
- Code 8117534
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XMEP3K0PT230 Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, Deutsch DT04 connector
Telemecanique
Telemecanique XUSZPM5AXPL09 multi-beam photocell for XUSL M, A-coded
Telemecanique
Telemecanique XMLB500D2S11 Pressure Switch, 30–500 bar, adjustable differential
Telemecanique
Telemecanique XXS30P4AM12 Ultrasonic Sensor, Sn 4 m, M12 connector
Telemecanique
Push Button, Raised, Black, Marked 0
ZB5AL232
Telemecanique
Telemecanique ZB6DGC Harmony XB6 key selector head, 2-position stay-put
Telemecanique
Telemecanique XX7K1A2PAM12 Ultrasonic Sensor, PNP, M12 connector
Telemecanique
Telemecanique XUZC16 Reflector, Ø16 mm, for Photoelectric Sensors
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCSA502?
- XCSA502 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCSA502.
- What is the HS code for XCSA502?
- The customs tariff (HS) code for XCSA502 is 8536.50.
- Who manufactures XCSA502?
- XCSA502 is a Telemecanique product in the Safety & Detection range.
- Is a datasheet available for XCSA502?
- Yes — the XCSA502 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCSA502?
- The minimum order quantity is 1.
- Is XCSA502 available?
- Yes — XCSA502 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
