Telemecanique ZCKM8 Limit Switch Body for ZCK Limit Switches
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCKM8 limit switch body (contact body) for ZCK limit switches; combine with a ZCKD/ZCKE operating head.
Technical Specifications
- Manufacturer part number (MPN)
- ZCKM8
- EAN / GTIN
- 3666916043615
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Switching function
- Slow-action switch with overlapping
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- No
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 64 mm
- Height of sensor
- 64 mm
- Length of sensor
- 30 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally open contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916043615
- SAP 1000341710
- Code 8976311
Product Documentation
More from Telemecanique
Telemecanique

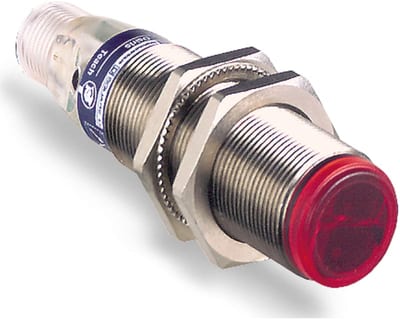

Telemecanique XUB9BPANM12 Photoelectric Sensor, Polarised Reflex, Metal, PNP, NO, M12 connector
Telemecanique

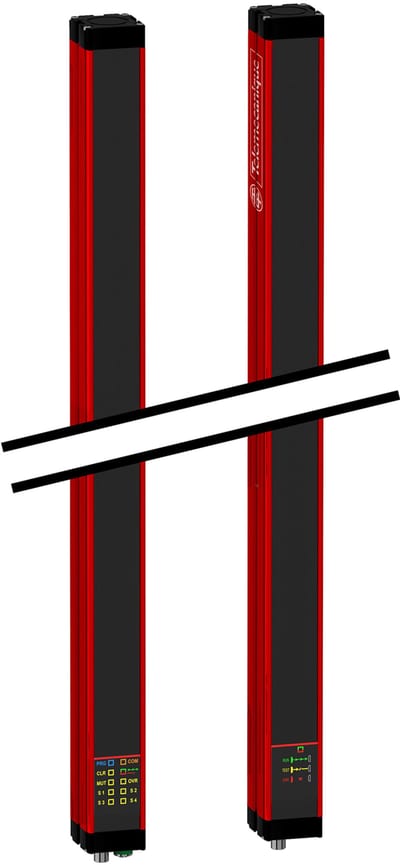

Telemecanique XUSL4MB40H136N Type 4 Safety Light Grille with Integrated Muting, 1360 mm protected height
Telemecanique

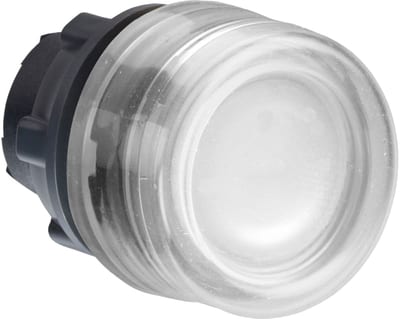

Telemecanique ZB5AW513 Illuminated Pushbutton Head, White, for LED Module, Harmony XB5 (plastic)
