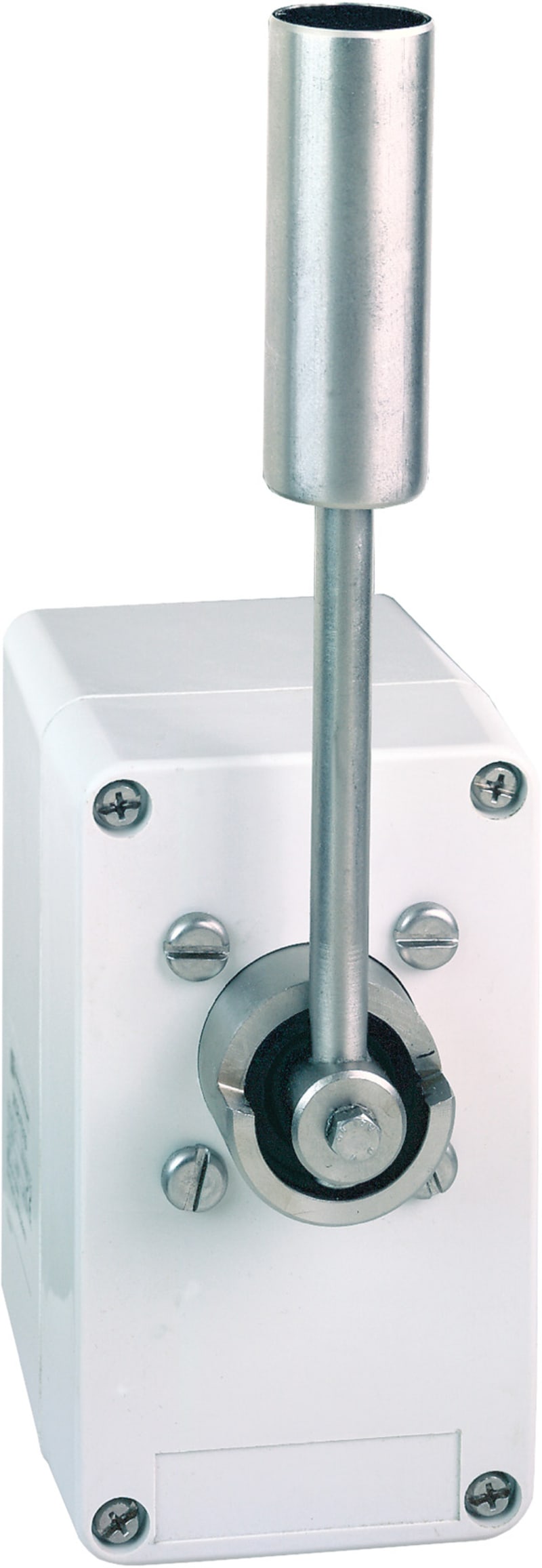

Telemecanique Limit Switch for Conveyor Belts, 2 CO, Corrosive Atmospheres
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCRT315 limit switch designed for conveyor belts in corrosive atmospheres, grey plastic housing with PG cable entry, IP65 protection. Quick-break switching with 2 CO contacts, rated 3 A at 230 V AC-15. Supplied in packs of 6.
Technical Specifications
- Manufacturer part number (MPN)
- XCRT315
- EAN / GTIN
- 3666916049433
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Plastic
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry PG
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP65
- Forced opening
- No
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 85 mm
- Height of sensor
- 95 mm
- Length of sensor
- 75 mm
- Switching function latching
- No
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 2
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916049433
- SAP 1000263923
- Code 81147955
Product Documentation
More from Telemecanique
Telemecanique

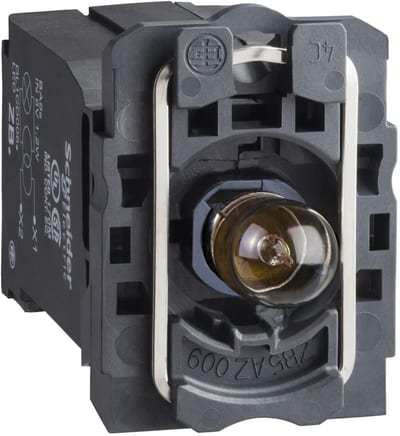

Schneider Electric light block with body/fixing collar with BA9S incandesc. bulb 440...480V ZB5OF8
ZB5AV8
Telemecanique
Photocell Ø18mm Direct with PLUG
XU8M18MA230K
Telemecanique
Telemecanique XZCP0666L2 Sensor Cable, M8 female angled, 3-pin, 2 m
Telemecanique
Telemecanique XZCRB151141C5 Jumper Cable, M12 Male to M12 Female, Shielded, 4-pin, PUR
Telemecanique
Telemecanique Metal Safety Interlock Switch 24V, 2NC+2NC, ISO M20
XCSLF2727312
Telemecanique
Telemecanique XCSDMP5915 Coded Magnetic Safety Switch, 2 NC, with LED
Telemecanique

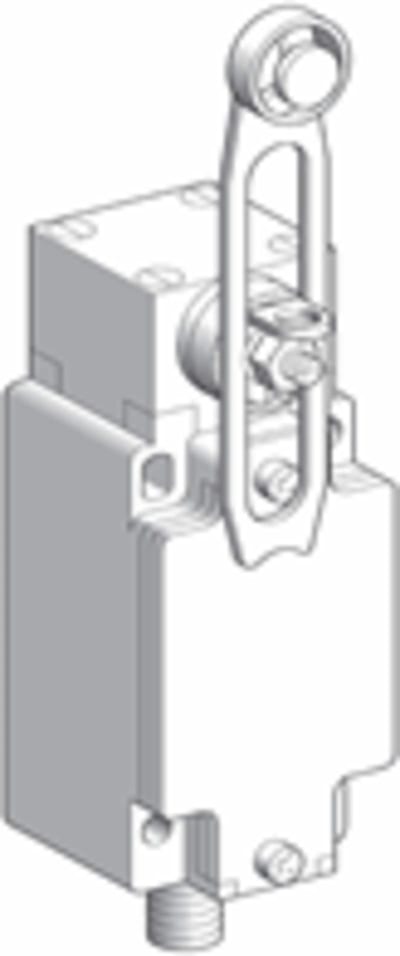

Telemecanique XCKJ10541D Limit Switch
Telemecanique
Telemecanique XMLR025G2P05 Pressure Sensor with Display, 0–25 bar, 2× PNP
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
