Telemecanique Metal Safety Interlock Switch 24V, 2NC+2NC, ISO M20
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCSLF2727312 mechanical safety interlock switch in metal housing, 24 V, 2NC + 2NC slow-action contacts, operating-current guard-locking principle with 20 N locking force. ISO M20 metric cable entry, IP67K protection, ambient range -25 to 60 degrees C, status indication included. Supplied in packs of 8.
Technical Specifications
- Manufacturer part number (MPN)
- XCSLF2727312
- EAN / GTIN
- 3666916047842
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 24 V
- Contact configuration
- 2 NC + 2 NC
- Type of locking
- Operating current principle
- Rated operation current Ie at AC-15, 230 V
- 0.75 A
- Housing material
- Metal
- Suitable for safety functions
- Yes
- With status indication
- Yes
- Type of switching contact
- Slow-action switch
- Type of interface for safety communication
- None
- Type of electric connection
- Cable entry metrical
- Explosion safety category for gas
- None
- Degree of protection (IP)
- IP67K
- Type of interface
- None
- Rated control supply voltage magnet drive AC 50 Hz
- 24 V
- Rated control supply voltage magnet drive AC 60 Hz
- 24 V
- Rated control supply voltage magnet drive DC
- 24 V
- Rated operation current Ie at DC-13, 24 V
- 0.55 A
- Width sensor
- 44 mm
- With escape release
- No
- Height of sensor
- 205 mm
- Length of sensor
- 51 mm
- Ambient temperature during operating
- -25–60 °C
- Guard locking force
- 20 N
- Number of contacts as normally closed contact
- 2
- With auxiliary release
- No
- Type of guard locking
- Quiescent current principle
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916047842
- SAP 1000336179
- Code 8960048
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XCSDMP5915 Coded Magnetic Safety Switch, 2 NC, with LED
Telemecanique
Telemecanique XCKJ10541D Limit Switch
Telemecanique
Telemecanique XMLR025G2P05 Pressure Sensor with Display, 0–25 bar, 2× PNP
Telemecanique

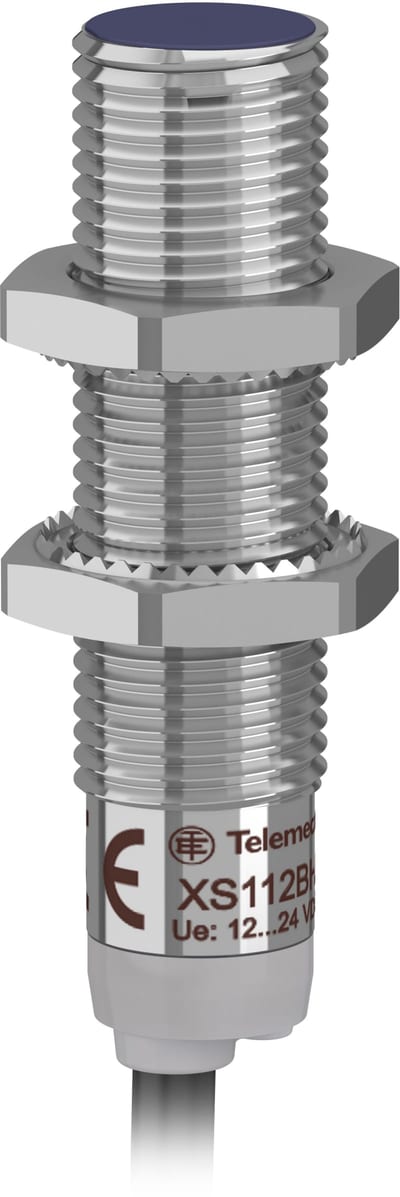

Telemecanique OsiSense XS112BHPAL5 Inductive Proximity Sensor — M12 barrel, Sn 4 mm, PNP, NO, pre-wired cable
Telemecanique

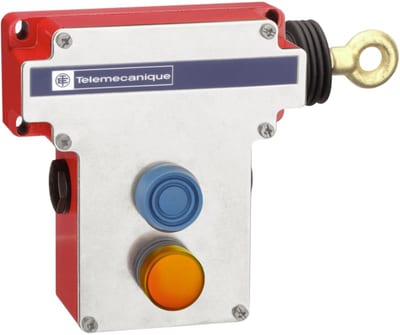

Telemecanique XY2CE1A296 Emergency Stop Rope Pull Switch, 2NO+2NC
