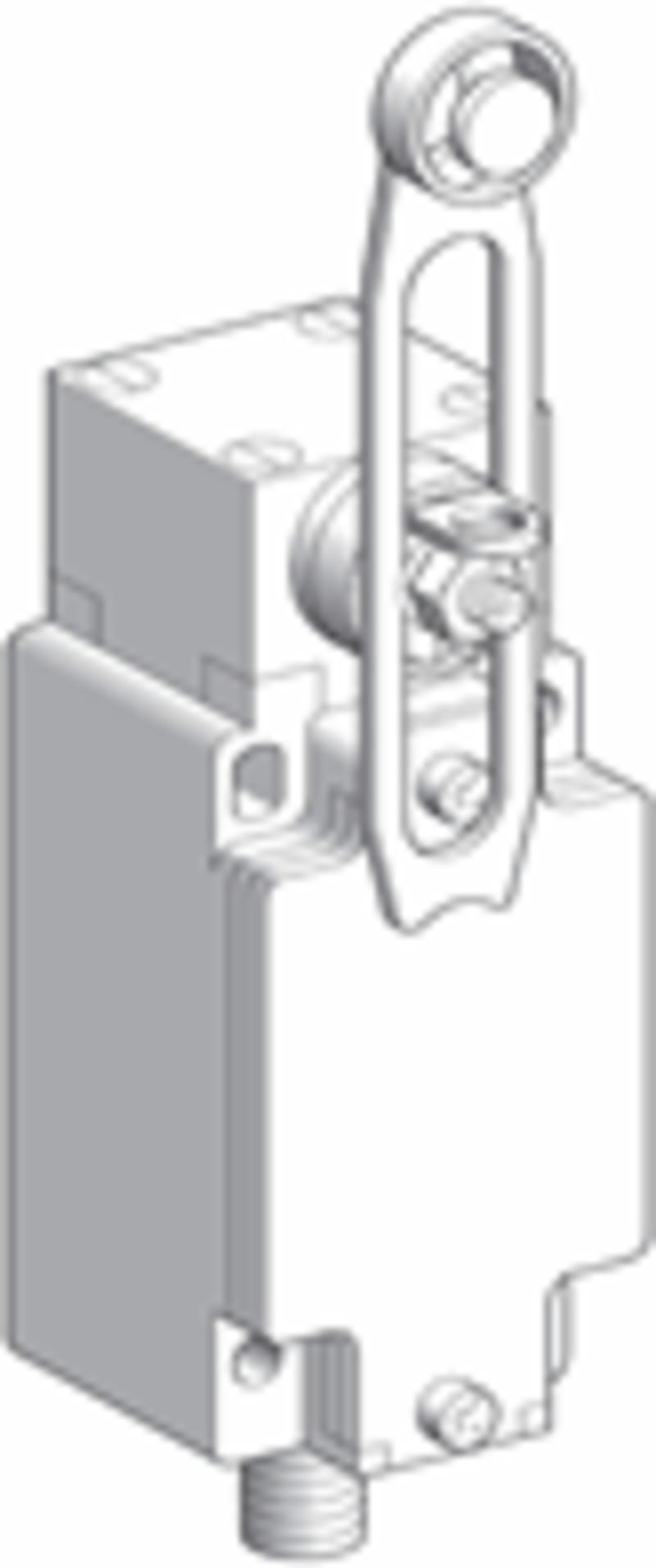

Telemecanique XCKJ10541D Limit Switch
Pricing
Request a quote
We reply within 24 hours
Overview
Telemecanique XCKJ10541D Limit Switch is listed under Sensors & Instrumentation / Position Switches. HS code: 8536.90; Sales unit: pcs; Package quantity: 12 pcs; Switching function: Quick-break switch; Housing material: Metal; Suitable for safety functions: No.
Technical Specifications
- Manufacturer part number (MPN)
- XCKJ10541D
- EAN / GTIN
- 3666916056448
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 3 A
- Rated operation current Ie at DC-13, 230 V
- 0.27 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- Connector M12
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66/IP67
- Forced opening
- Yes
- Type of control element
- Adjustable roller lever
- Type of interface
- None
- Output electronic
- No
- Rated operation current Ie at AC-15, 125 V
- 3 A
- Width sensor
- 40 mm
- Height of sensor
- 89 mm
- Length of sensor
- 44 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916056448
- SAP 1000340378
- Code 8967123
Product Documentation
