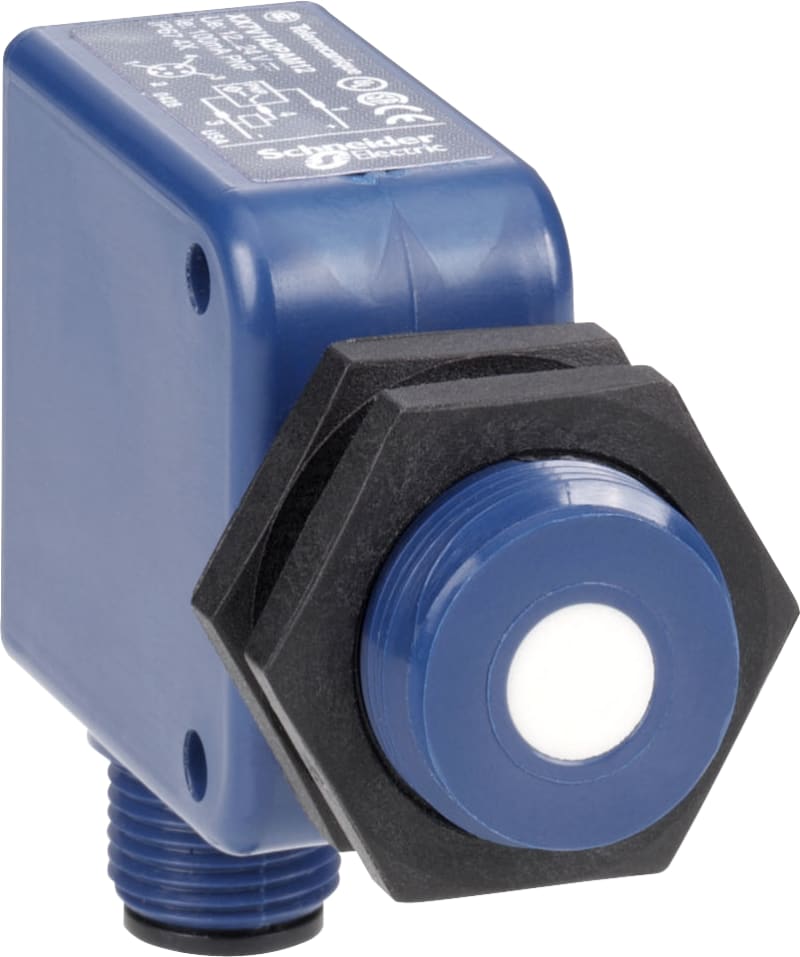

Telemecanique XX9V1A1F1M12 Ultrasonic Sensor, 18 × 33 mm Block, 0–10 V, M12 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XX9V1A1F1M12 OsiSense XX ultrasonic proximity sensor, 18 × 33 mm block, 0–10 V output, M12 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XX9V1A1F1M12
- EAN / GTIN
- 3666916080405
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Output signal
- 0–10 V
- Voltage type
- DC
- Housing material
- Plastic
- Ambient temperature
- -20–65 °C
- Type of analogy output
- 0 V ... 10 V
- Type of electric connection
- Connector M12
- Blind zone
- 51 mm
- Setting procedure
- Teach-In
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Standard for interfaces
- Analogue
- No-load current
- 40 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 1.27 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 18 mm
- Diameter sensor
- 18 mm
- Height of sensor
- 33 mm
- Length of sensor
- 60 mm
- Adjustable distance
- 51–508 mm
- Measuring range length
- 51–508 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916080405
- SAP 1000078368
- Code 8822710
Product Documentation
