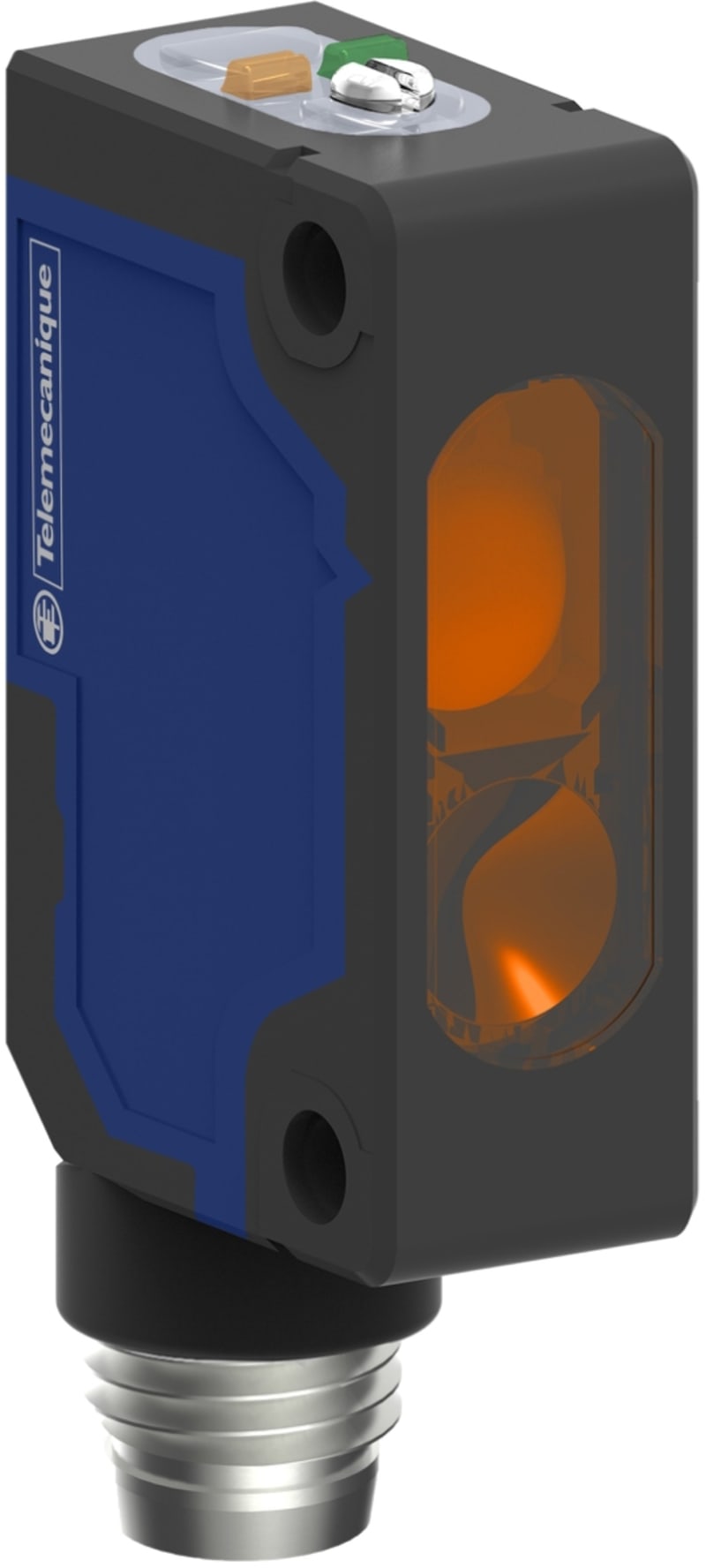

Telemecanique XUM8APXBM8 Photoelectric Sensor, Diffuse with Background Suppression, Sn 0.2 m, PNP, M8 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XUM8APXBM8 XUM miniature photoelectric sensor, diffuse with background suppression, Sn 0.2 m, PNP output, M8 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XUM8APXBM8
- EAN / GTIN
- 3666916000045
- Sales unit
- pcs
- Package quantity
- 240 pcs
- Output type
- PNP
- Nominal sensing distance Sn
- 0.2 m
- Connector
- M8
- Voltage type
- DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Suitable for safety functions
- No
- Ambient temperature
- -30–55 °C
- With time function
- No
- Switching frequency
- 1000 Hz
- Number of protected semiconductor outputs
- 1
- Type of electric connection
- Connector M8
- Type of switching output
- PNP
- Type of switch function
- Programmable/configurable
- Rated control supply voltage DC
- 12–24 V
- Operation agent-safety class
- Safety class 0
- Setting procedure
- Manual adjustment
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Special construction
- Laser protection class
- None
- Type of light
- Laser diode, red light
- Max. output current at protected output
- 100 mA
- With monitoring function downstream switching devices
- No
- With restart blockage
- No
- Response time
- 0.5 ms
- Transmission range of the safety field
- 250 m
- Type of safety according to IEC 61496-1
- 1
- Operating distance
- 250 mm
- Pre failure notice
- No
- Material of optical surface
- Plastic
- Degree of protection (IP)
- IP67
- Analogue output 0 V ... 10 V
- No
- Analogue output 0 mA ... 20 mA
- No
- Analogue output -10 V ... +10 V
- No
- Analogue output 4 mA ... 20 mA
- No
- Width sensor
- 10.8 mm
- Height of sensor
- 42.3 mm
- With communication interface analogue
- No
- With communication interface AS-Interface
- No
- With communication interface CANOpen
- No
- With communication interface DeviceNet
- No
- With communication interface Ethernet
- No
- With communication interface INTERBUS
- No
- With communication interface PROFIBUS
- No
- With communication interface RS-232
- No
- With communication interface RS-422
- No
- With communication interface RS-485
- No
- With communication interface SSD
- No
- With communication interface SSI
- No
- Length of sensor
- 19.5 mm
- Max. switching distance
- 300 mm
- With reflector
- No
- With other analogue output
- No
- Sensing mode
- Light-/dark switching
- Country of origin
- Japan
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916000045
- SAP 1200572625
- Code 82937428
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCC12MCP40B Field-Wireable Connector, M12, Male, Angled, 4-pin, Plastic
Telemecanique
Selector switch with LIGHT 3 Fixed positionsBLUE
ZB5AK1363
Telemecanique
Telemecanique OsiSense XS212B4NBL2 Inductive Proximity Sensor — M12 barrel, Sn 8 mm, NPN, NC, pre-wired cable (2 m)
Telemecanique
Telemecanique XZCP1041L5 Sensor Cable, M8 female angled, 4-pin, 5 m
Telemecanique
Telemecanique XCSDMP50010 Coded Magnetic Safety Switch, 1 NO + 2 NC, 10 m cable
Telemecanique
Telemecanique XUB4BPBWM12 Photoelectric Sensor, Diffuse, Metal, PNP, NC, 90° Head, M12 connector
Telemecanique
Telemecanique XUYFALNEP100050 Laser Fork Sensor 95 × 50 mm, Teach-In, M8 Connector
Telemecanique
Telemecanique XMLP300PP730 Pressure Transmitter, 0–300 psi, 0.5–4.5 V ratiometric, 1/4" NPT, Packard connector
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XUM8APXBM8?
- XUM8APXBM8 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XUM8APXBM8.
- What is the HS code for XUM8APXBM8?
- The customs tariff (HS) code for XUM8APXBM8 is 8536.50.
- Who manufactures XUM8APXBM8?
- XUM8APXBM8 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XUM8APXBM8?
- Yes — the XUM8APXBM8 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XUM8APXBM8?
- The minimum order quantity is 1.
- Is XUM8APXBM8 available?
- Yes — XUM8APXBM8 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
