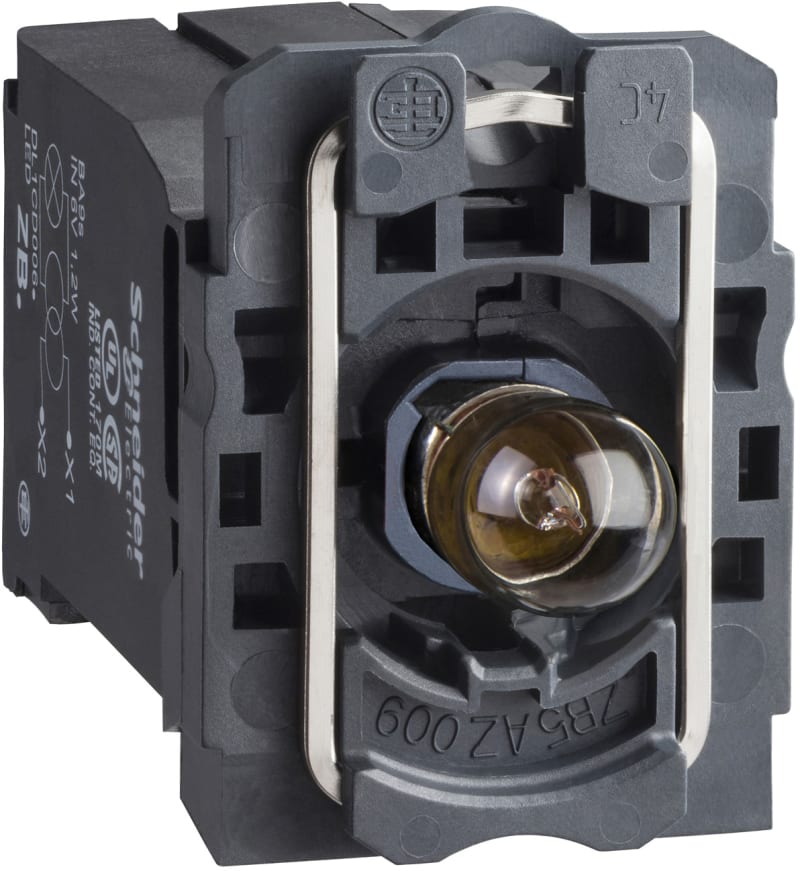

Schneider Electric light block with body/fixing collar with BA9S incandesc. bulb 440...480V ZB5OF8

Telemecanique ZB5OF8 Lamp Body in plastic consisting of 6V transformer for BA9s lamp and 440-480VAC supply.

Manufacturer part number (MPN)

ZB5AV8

EAN / GTIN

3389110908312

Sales unit

pcs

Package quantity

100 pcs

Range of product

Harmony XB5

Product or component type

Complete body/light block assembly

Device short name

ZB5

Fixing collar material

Plastic

Sale per indivisible quantity

1

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Light source

Incandescent

Bulb base

BA 9s

Light block supply

Via integral transformer 1.2 VA 6 V

CAD overall width

30 mm

CAD overall height

42 mm

CAD overall depth

55 mm

Terminals description ISO n°1

(X1-X2)PL

Product weight

0.099 kg

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Signalling type

Steady

[Us] rated supply voltage

440...480 V AC at 50/60 Hz

Mounting of block

Front mounting

Electrical composition code

P4; M9

Device presentation

Basic sub-assemblies

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…55 °C

Electrical shock protection class

Class II conforming to IEC 60536

Standards

IEC 60947-5-1; IEC 60947-5-4; IEC 60947-1; CSA C22.2 No 14; JIS C8201-5-1; UL 508; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

100

Country of origin

FR

Warranty (in months)

18

Lamp holder

BA9s

Transformer integrated

Yes

With integrated voltage decreasing resistor

No

With integrated diode

No

Lamp type

Incandescent lamp

Type of fastening

Front fastening

With light source

Yes

Connection type auxiliary circuit

Screw connection

Rated voltage Ue at AC 50 Hz

440–480 V

Rated voltage Ue at AC 60 Hz

440–480 V

Voltage type for actuating

AC

HS Code

8531.80
