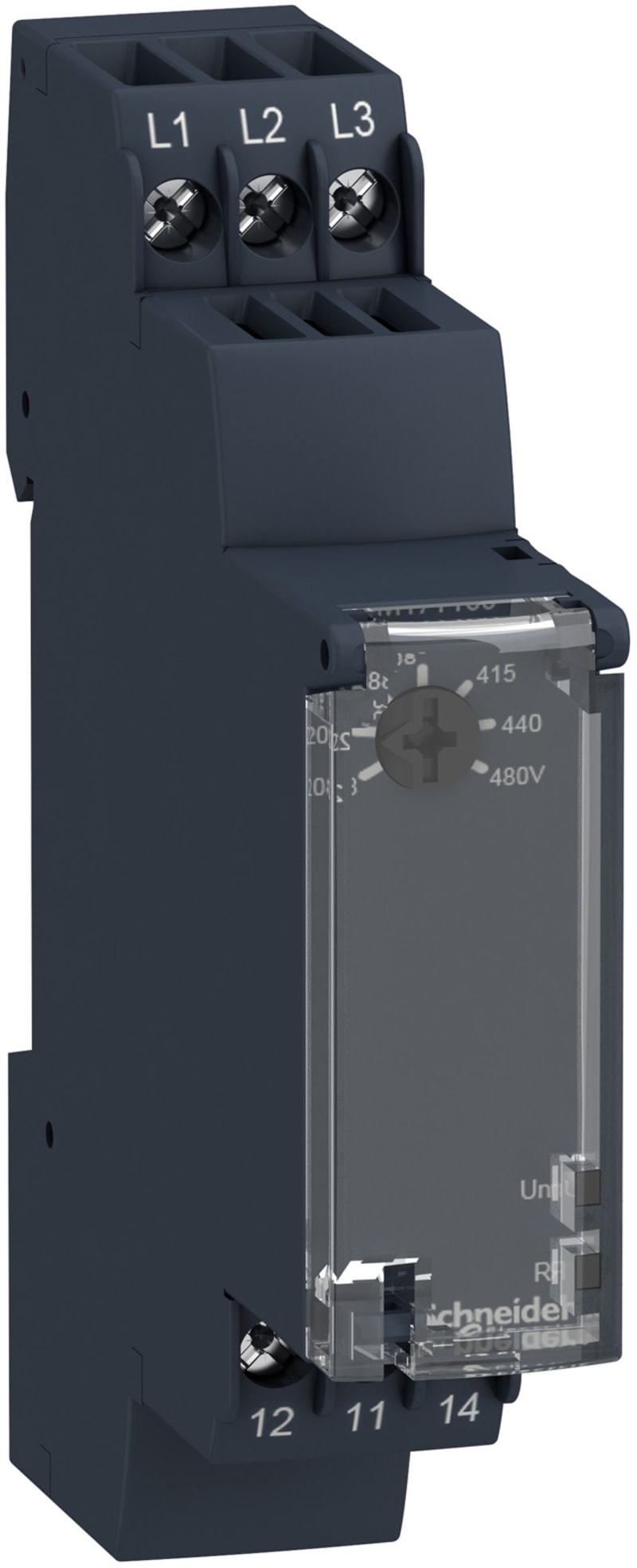

Telemecanique multifunction control relay RM17-TT - range 183..528 V AC RM17TT00

Telemecanique RM17TT00 Kontrollrelé 3-phase for fasebrud and fasesekvens 1 C/O 5A 3x230-400 VAC.

Manufacturer part number (MPN)

RM17TT00 EAN / GTIN: 3389119405089 HS code: 8536.90 Sales unit: pcs Package quantity: 48 pcs Voltage: 208-480 V AC Rated current: 5 A Range of product: Harmony Control Relays Relay type: Multifunction control relay Relay name: RM17TT Product or component type: 3-phase control relay Relay monitored parameters: Phase failure detection; Phase sequence Control type: Without test button Contacts type and composition: 1 C/O [Uc] control circuit voltage: 208...480 V Product specific application: For 3-phase supply [Us] rated supply voltage: self-powered Supply voltage limits: 183…528 V AC Supply frequency: 50/60 Hz +/- 10 % Power consumption in VA: 0…22 VA at 400 V AC 50 Hz Measurement range: 208...480 V AC Measurement voltage limits: 183…528 V AC Maximum measuring cycle: 150 ms measurement cycle as true rms value Hysteresis: 2 % Measurement error: < 0.05 %/°C with temperature variation; < 1 % over the whole range with voltage variation Time delay type: Without Reset time: 1500 ms time delay Output contacts: 1 C/O nominal output current: 5 A Switching capacity in VA: 1250 VA Maximum switching voltage: 250 V AC minimum switching current: 10 mA at 5 V DC Maximum switching current: 5 A AC; 5 A DC Electrical durability: 100000 cycles Mechanical durability: 30000000 cycles Response time: < 200 ms (in the event of a fault) Control circuit voltage limits: - 12 % + 10 % Un Control circuit frequency: 50...60 Hz +/- 10 % Phase failure sensitivity: 0.7 Un Electromagnetic compatibility: Emission standard for industrial environments conforming to IEC 61000-6-4; Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3; Immunity for industrial environments conforming to IEC 61000-6-2 Standards: IEC 60255-1 Product certifications: UL; GL; C-Tick; GOST; CSA Marking: CE Directives: 73/23/EEC - low voltage directive; 89/336/EEC - electromagnetic compatibility Ambient air temperature for storage: -40…70 °C; -40…70 °C Ambient air temperature for operation: -20…50 °C Relative humidity: 95 % at 55 °C conforming to IEC 60068-2-30 IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP30 (casing) conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Overvoltage category: III conforming to IEC 60664-1 Dielectric test voltage: 2 kV, 1 min AC 50 Hz conforming to IEC 60255-5 Insulation resistance: > 500 MOhm at 500 V DC conforming to IEC 60255-5 [Ui] rated insulation voltage: 400 V conforming to IEC 60664-1 Operating position: Any position without derating Connections - terminals: Screw terminals, 1 x 0.5...1 x 4 mm² (20 AWG...11 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...12 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Local signalling: LED (green) for power ON; LED (yellow) for relay ON Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715 Reliability data: MTTFd = 502.2 years; B10d = 470000 Width: 17.5 mm; 17.8 mm Height: 90 mm; 88.9 mm Depth: 72 mm; 71.1 mm Product weight: 0.08 kg; 0.08 kg Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3389119405089
• SAP 1000257650
• Code 8232011
