Telemecanique XX512A1KAM8 Ultrasonic Sensor, Sn 6 m, PNP + NPN, M8 connector
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XX512A1KAM8 OsiSense XX ultrasonic proximity sensor, Sn 6 m, PNP + NPN output, M8 connector.
Technical Specifications
- Manufacturer part number (MPN)
- XX512A1KAM8
- EAN / GTIN
- 3666916079911
- Sales unit
- pcs
- Package quantity
- 35 pcs
- Diameter
- 12 mm
- Voltage type
- AC/DC
- Max. output current
- 100 mA
- Housing material
- Plastic
- Ambient temperature
- -20–65 °C
- Switching frequency
- 125 Hz
- Type of electric connection
- Connector M8
- Type of switching output
- PNP/NPN
- Type of switch function
- Normally open contact (NO)
- Blind zone
- 6.4 mm
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cylinder, screw-thread
- No-load current
- 25 mA
- Relative linearity deflection
- 0 %
- Relative repeat accuracy
- 0.7 %
- Synchronisation possible
- No
- Supply voltage
- 12–24 V
- Material active area of sensor
- Plastic
- Degree of protection (IP)
- IP67
- Width sensor
- 12 mm
- Diameter sensor
- 12 mm
- Height of sensor
- 12 mm
- Length of sensor
- 58 mm
- Adjustable distance
- 6.4–51 mm
- Measuring range length
- 6.4–51 mm
- Country of origin
- United States
Standards & Compliance
- HS Code
- 9031.80
Cross References
- EAN 3666916079911
- SAP 1000082126
- Code 8828682
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique ZCMD37L1 Limit Switch Body, Metal, NC/NC/NO, Slow-break, 1 m cable
Telemecanique
Telemecanique XZCR2705037R2 Sensor Cable, M8 to M8, 2 m
Telemecanique

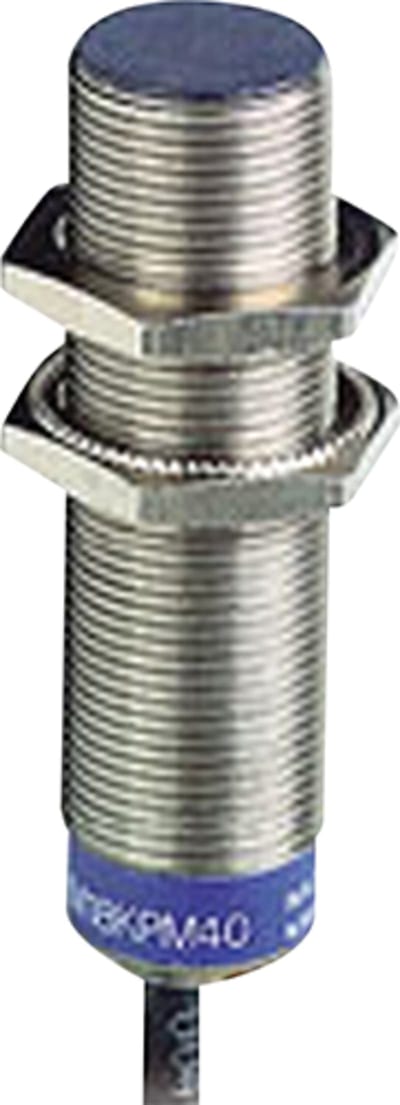

Telemecanique OsiSense XS530BLPAL2 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, PNP, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique OsiSense XS8C2A4DAM12 Inductive Proximity Sensor — 40 × 40 × 70 mm block, Sn 40 mm, 2-Wire DC, NO, M12 connector (4-Pin)
Telemecanique

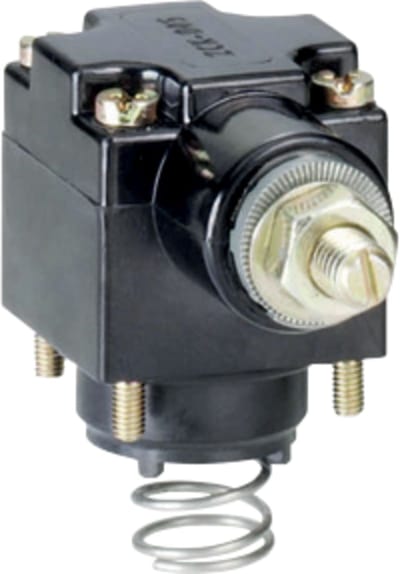

Telemecanique ZCKD05 Operating Head for ZCK Limit Switches
Telemecanique

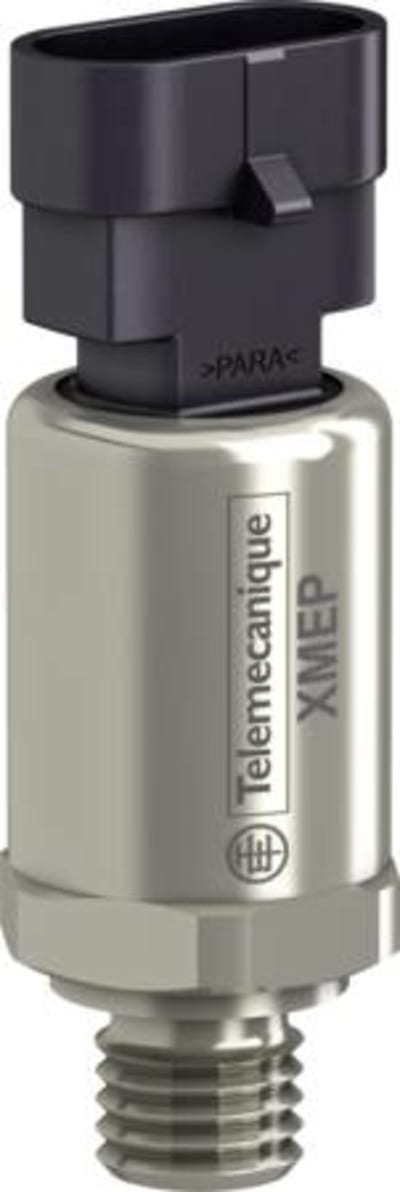

Telemecanique XMEP060BV71F Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, AMP connector
Telemecanique

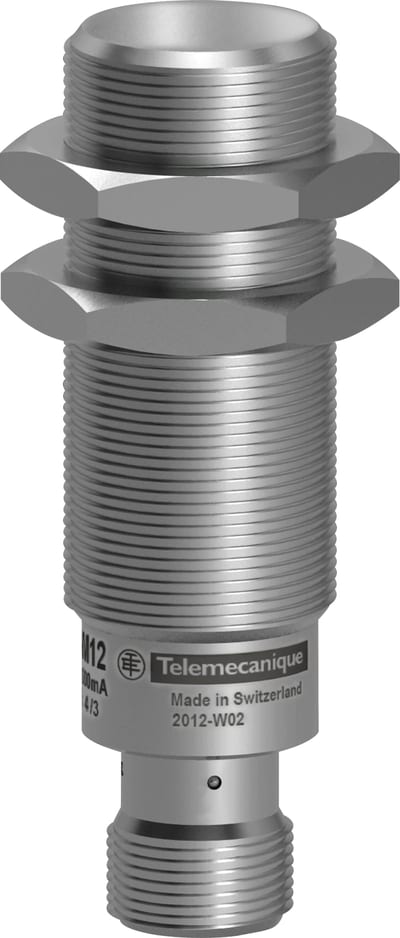

Telemecanique OsiSense XS918S1PAM12 Inductive Proximity Sensor — M18 stainless barrel, Sn 10 mm, PNP, NO, M12 connector (4-Pin)
