Telemecanique ZCMD37L1 Limit Switch Body, Metal, NC/NC/NO, Slow-break, 1 m cable
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique ZCMD37L1 limit switch body (contact block), metal housing, NC/NC/NO slow-break contacts, 1 m cable; combines with ZCK/ZC2 operating heads to form a complete limit switch.
Technical Specifications
- Manufacturer part number (MPN)
- ZCMD37L1
- EAN / GTIN
- 3666916042557
- Sales unit
- pcs
- Package quantity
- 70 pcs
- Contact configuration
- NC / NC / NO
- Switching function
- Slow-action switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- With cable preassembled
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP66
- Forced opening
- Yes
- Type of control element
- None
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 52 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Ambient temperature during operating
- -25–70 °C
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3666916042557
- SAP 1000341218
- Code 8375612
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XZCR2705037R2 Sensor Cable, M8 to M8, 2 m
Telemecanique
Telemecanique OsiSense XS530BLPAL2 Inductive Proximity Sensor — M30 barrel, Sn 10 mm, PNP, NO, pre-wired cable (2 m)
Telemecanique
Telemecanique OsiSense XS8C2A4DAM12 Inductive Proximity Sensor — 40 × 40 × 70 mm block, Sn 40 mm, 2-Wire DC, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique ZCKD05 Operating Head for ZCK Limit Switches
Telemecanique
Telemecanique XMEP060BV71F Pressure Transmitter, G 1/4 A, 0.5–4.5 V ratiometric, AMP connector
Telemecanique
Telemecanique OsiSense XS918S1PAM12 Inductive Proximity Sensor — M18 stainless barrel, Sn 10 mm, PNP, NO, M12 connector (4-Pin)
Telemecanique
Telemecanique XMLP010BD11F Pressure Transmitter, 0.5–4.5 V ratiometric, G 1/4, M12 connector
Telemecanique

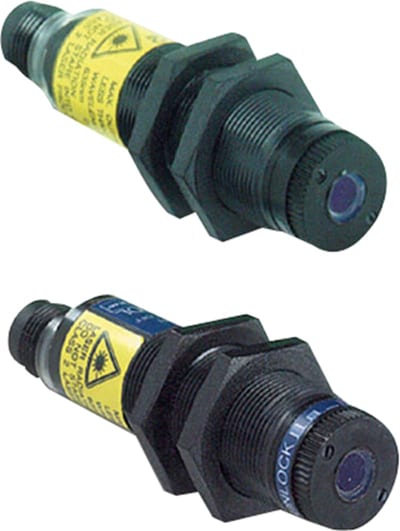

Telemecanique XUBLAPCNM12 Laser Photoelectric Sensor M18, Plastic, PNP, M12 connector
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ZCMD37L1?
- ZCMD37L1 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is ZCMD37L1.
- What is the HS code for ZCMD37L1?
- The customs tariff (HS) code for ZCMD37L1 is 8536.50.
- Who manufactures ZCMD37L1?
- ZCMD37L1 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for ZCMD37L1?
- Yes — the ZCMD37L1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ZCMD37L1?
- The minimum order quantity is 1.
- Is ZCMD37L1 available?
- Yes — ZCMD37L1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
