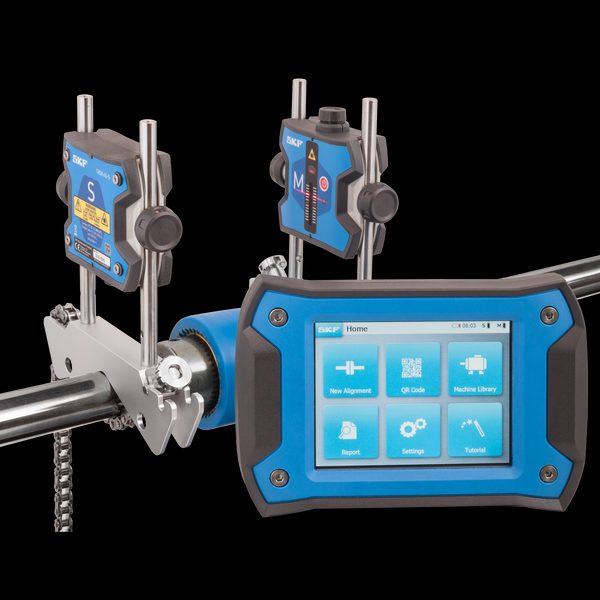

SKF TKSA-41 Laser shaft alignment tool
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TKSA 41 Bluetooth dual-laser horizontal shaft alignment tool. Tablet app with live-values + thermal + soft-foot check. Reporting + photographs. Used by maintenance technicians and installation crews across industrial, marine and construction service.
Technical Specifications
- Model
- TKSA-41
- Compliance
- Dual-laser CCD
- Range
- 0.001mm res / ±3 µm/m
- Accuracy
- Per axis
- Connector (sensors)
- 2-pin MIL-C-5015 or M12 4-pin
- Mounting (sensors)
- 1/4-28 UNF stud + M6 adapter / magnetic mount
- Calibration
- NIST / UKAS traceable (3-year recal recommended)
- Alignment methods
- 3 position measurement 9 -12 -3;Automatic measurement;Free measurement (only 90° shaft rotation needed)
- Recommended applications
- Horizontal shafts;Soft foot
- Live correction values
- Vertical and horizontal
- Special features
- Machine library;Built-in photo camera;QR code reading;Automatic .pdf report
- Sensors
- 29 mm CCD;Inclinometer ±0.5°
- Communications
- Bluetooth 4.0 LE or wired with USB cables
- Measurement distance
- 0.07 to 4 m
- Measuring error (percent)
- 0.5 %
- Material
- Display unit: High impact PC/ABS plastic with over mould; Measurement units: glassfiber filled PC
- Battery
- Measuring units: rechargeable 2000 mAh LiPo batteries;Display unit: rechargeable 5000 LiPo battery
- Battery life
- 8 h
- Operating temperature range
- 0–45 °C
- Display
- 5.6" colour resistive touchscreen LCD display
- Software update
- Via USB stick
- Laser type
- Red line
- Shaft diameter
- 20 - 150 mm
- Maximum coupling height
- 105 mm
- Maximum coupling height with extension
- 195 mm
- Power adapter
- Input: 100V-240V, 50/60Hz AC with country adpaters for EU, US, UK, AUS included;Output: DC 12V 3A
- Degree of protection (IP)
- IP 54
- Certifications
- Calibration certificate (2 years validity)
- Part of a kit
- no, but also available as TKSA 41/KIT360
- Case dimensions (l x h x w)
- 530 x 110 x 360 mm
- Country of Manufacturing (COM code)
- 18 - Germany
- Product net weight
- 4.72 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 41112202
- Content
- Set of 2 Measuring units (M and S);Display unit;Set of 2 shaft brackets with chains 400 mm (15.8 in) and threaded rods 150 mm (5.9 in);Set of 4 threaded extension rods 90 mm (3.5 in);Chain tightening rod;Power supply with various country adapters;Set of 2 USB cables;Measuring tape;Set of 2, A5 sheets with 6 QR code stickers per sheet (total of 12 stickers);Certificate of calibration and conformance;Quick start guide;SKF carrying case
Standards & Compliance
- Classification / Approval
- ISO 10816 / API 670 / ISO 13373
- HS Code
- 9031.80
Cross References
- Alt. designation TKSA 41
Compatibility & Fitment
All ICP/IEPE accelerometers are 24-pin interchangeable at signal-conditioner level. Mount with 1/4-28 UNF stud; use isolated mount for electrical installations.
