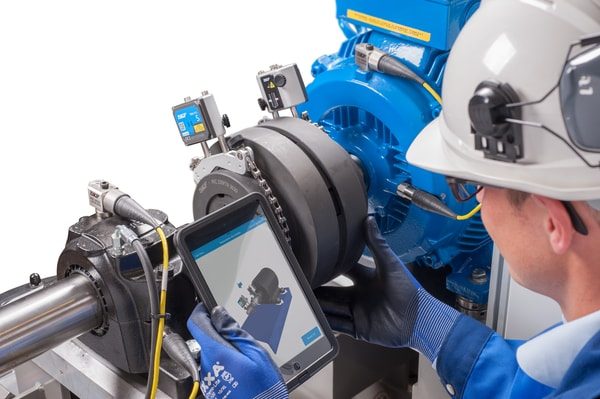

SKF TKSA 71 Shaft Alignment Tool

SKF TKSA 71 laser shaft alignment — wireless dual-laser with integral display, vertical/horizontal/cardan/geometric. Used by maintenance technicians and installation crews across industrial, marine and construction service.

Model

TKSA-71

Compliance

Dual-laser CCD wireless

Range

0.001mm res

Accuracy

Sub-0.01mm over 1m

Connector (sensors)

2-pin MIL-C-5015 or M12 4-pin

Mounting (sensors)

1/4-28 UNF stud + M6 adapter / magnetic mount

Calibration

NIST / UKAS traceable (3-year recal recommended)

Alignment methods

3 position measurement 9 -12 -3;Automatic measurement;Free measurement (only 40° shaft rotation needed)

Recommended applications

Horizontal shafts;Vertical shafts;Machine trains;Spacer shafts;Soft foot;Values

Live correction values

Vertical and horizontal

Special features

Machine library;Pictures in reports;QR code reading;Target values;Disturbance compensation;Free 3D machine view;Screen rotation on tablets;Automatic .pdf report

Sensors

20 mm PSD;Inclinometer ±0.1°

Communications

Bluetooth 4.0 LE

Measurement distance

0.07 to 10 m

Measuring error (percent)

1 %

Material

Measurement units: anodized aluminum front and PC/ABS plastic back cover

Battery

Measuring units: rechargable 1000 mAh Li-ion battery

Battery life

8 h

Operating temperature range

0–45 °C

Display

None, Smartphone or tablet needed

Operating system

min. Android 9; min. Apple iOS 9

Software update

Via Apple AppStore and Google Play Store

Suitable operating devices

Android Tablet or Smartphone with min. Android 9;Apple iPad, iPhone with min. iOS 9

Laser type

Red line

Shaft diameter

20 to 150 mm

Maximum coupling height

45 mm

Maximum coupling height with extension

165 mm

Power adapter

Wireless charging via supplied charging pods;Micro USB to USB split charging cable included;Compatible with standard 5V USB chargers (not included)

Degree of protection (IP)

IP 67 for measuring units and carrying case

Certifications

Calibration certificate (2 years validity)

Part of a kit

no, but also available as TKSA 71/KIT380 or TKSA 71/KIT720

Case dimensions (l x h x w)

365 x 170 x 295 mm

Country of Manufacturing (COM code)

18 - Germany

Product net weight

4.33 kg

eClass code

23-05-19-01

UNSPSC code

41112202

Content

Set of 2 Measuring units (M and S);Set of 2 shaft brackets with chains 480 mm (18.9 in) and threaded rods 80 mm (3.2 in) and magnets;Set of 4 threaded extension rods 120 mm (4.7 in);Set of 2 extension chains 1 m (3.3 ft);Micro USB to USB split charging cable;Set of 2 wireless charging pads;Measuring tape;Certificate of calibration and conformance;Quick start guide;Carrying case

Classification / Approval

ISO 10816 / API 670 / ISO 13373

HS Code

9031.80
