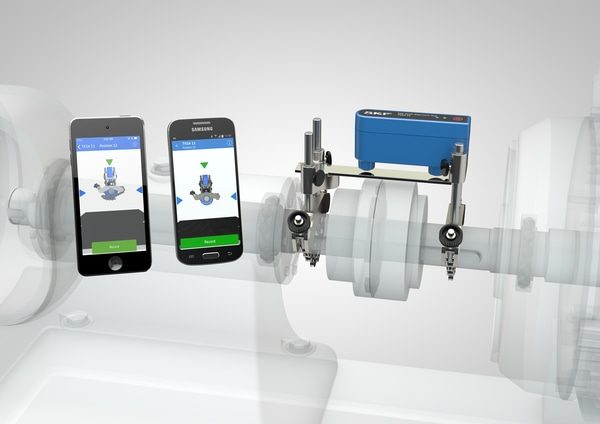

SKF TKSA 11 Pocket Alignment
Pricing
Request a quote
We reply within 24 hours
Product Description
SKF TKSA 11 economy laser alignment for small motors. Single-laser + smartphone app. Pulley + belt + shaft. Used by maintenance technicians and installation crews across industrial, marine and construction service.
Technical Specifications
- Model
- TKSA-11
- Compliance
- Single-laser Bluetooth
- Range
- 0.1mm res
- Accuracy
- ±5%
- Connector (sensors)
- 2-pin MIL-C-5015 or M12 4-pin
- Mounting (sensors)
- 1/4-28 UNF stud + M6 adapter / magnetic mount
- Calibration
- NIST / UKAS traceable (3-year recal recommended)
- Alignment methods
- 3 position measurement 9 -12 -3
- Recommended applications
- Horizontal shafts
- Live correction values
- Only horizontal
- Special features
- Automatic .pdf reports
- Sensors
- 2x Inductive proximity sensors with 3x reference bars
- Communications
- Bluetooth 4.0 LE
- Measurement distance
- 0 to 185 mm between brackets
- Measuring error (percent)
- 2 %
- Material
- Measurement unit: PC/ABS plastic
- Battery
- Rechargeable 1900 mAh LiPo battery
- Battery life
- 18 h
- Operating temperature range
- 0–45 °C
- Display
- None, Smartphone or tablet needed
- Operating system
- min. Android 9; min. Apple iOS 9
- Software update
- Via Apple AppStore and Google Play Store
- Suitable operating devices
- Android Tablet or Smartphone with min. Android 9;Apple iPad, iPhone with min. iOS 9
- Shaft diameter
- 20 to 160 mm
- Maximum coupling height
- 55 mm
- Power adapter
- Charging via micro USB 2.0 port (5V);Micro USB to USB charging cable included;Compatible with standard 5V USB chargers (not included)
- Degree of protection (IP)
- IP 54
- Certifications
- Calibration certificate (2 years validity)
- Part of a kit
- no, but also available as TKSA 11/KIT380 or TKSA 11/KIT75
- Case dimensions (l x h x w)
- 360 x 110 x 260 mm
- Country of Manufacturing (COM code)
- 18 - Germany
- Product net weight
- 2.12 kg
- eClass code
- 23-05-19-01
- UNSPSC code
- 41112202
- Laser type
- None
- Content
- Measuring unit;3 Reference bars;Set of 2 shaft brackets with chains 480 mm (18.9 in) and rods 80 mm (3.1 in);Micro USB to USB charging cable;Measuring tape;Certificate of calibration and conformance;Quick start guide;SKF carrying case
Standards & Compliance
- Classification / Approval
- ISO 10816 / API 670 / ISO 13373
- HS Code
- 9031.80
Compatibility & Fitment
All ICP/IEPE accelerometers are 24-pin interchangeable at signal-conditioner level. Mount with 1/4-28 UNF stud; use isolated mount for electrical installations.
More from SKF
SKF
SKF TMST 3 Electronic Stethoscope
TMST3
SKF
SKF TMBS 50E Bearing Separator
TMBS-50E
SKF
SKF TMHN 7-34 Heater Bearing Induction
TMHN-7-34
SKF
SKF TMFT 36 Mounting Tool Kit
TMFT-36
SKF
SKF 6205-2RSH Sealed Deep-Groove Ball Bearing
6205-2RSH-V2
SKF

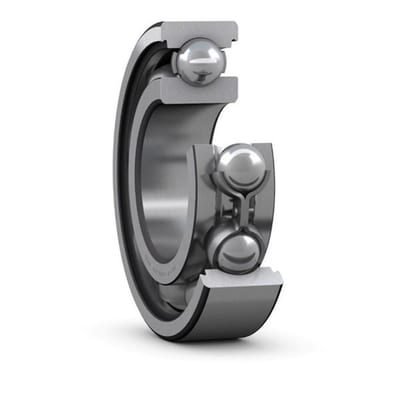

SKF Sealed Deep-Groove Bearing 6206-2RSH
SKF

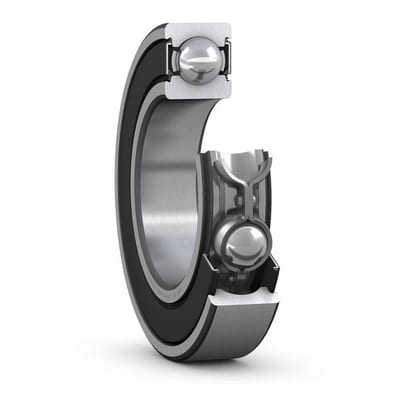

SKF Sealed Deep-Groove Bearing 6207-2RSH
SKF

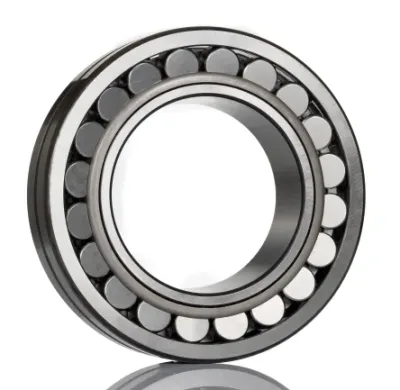

SKF 22208 EK Spherical Roller Bearing
