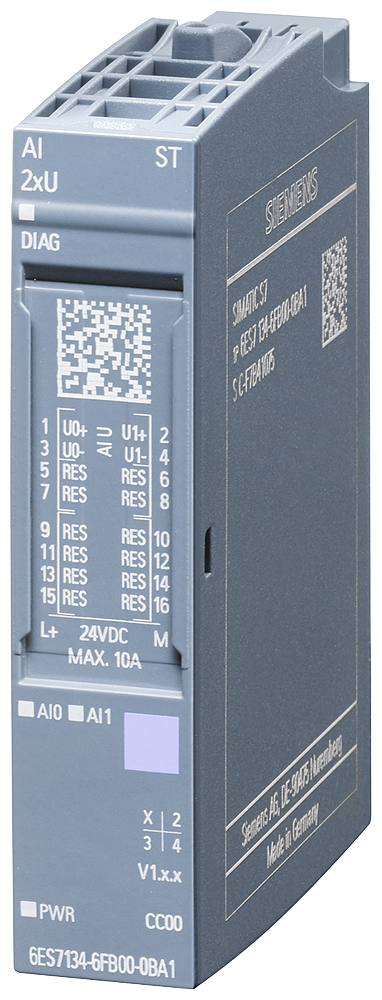

Siemens SIMATIC ET 200SP AI 2XU Standard

Siemens 6ES7134-6FB00-0BA1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Analog input module, AI 2XU standard, packaging unit.

Manufacturer part number (MPN)

6ES7134-6FB00-0BA1

EAN / GTIN

4047623406662

Sales unit

pcs

Product type designation

AI 2xU ST

HW functional status

from FS21

Firmware version

V1.0.1

Usable BaseUnits

BU type A0, A1

Color code for module-specific color-coded label

CC00

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V13 SP1

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3 / -

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption, max.

37 mA

Power loss, typ.

0.9 W

Address space per module — Address space per module, max.

4 byte; + 1 byte for QI information

Selection of BaseUnit for connection variants — 1-wire connection

BU type A0, A1

Selection of BaseUnit for connection variants — 2-wire connection

BU type A0, A1

Number of analog inputs

2

Number of analog inputs — For voltage measurement

2

Permissible input voltage for voltage input (destruction limit), max.

30 V

Cycle time (all channels), min.

500 µs

Input ranges (rated values), voltages — 0 to +10 V

Yes; 15 bit

Input ranges (rated values), voltages — Input resistance (0 to 10 V)

180 kΩ

Input ranges (rated values), voltages — 1 V to 5 V

Yes; 15 bit

Input ranges (rated values), voltages — Input resistance (1 V to 5 V)

180 kΩ

Input ranges (rated values), voltages — -10 V to +10 V

Yes; 16 bit incl. sign

Input ranges (rated values), voltages — Input resistance (-10 V to +10 V)

180 kΩ

Input ranges (rated values), voltages — -5 V to +5 V

Yes; 16 bit incl. sign

Input ranges (rated values), voltages — Input resistance (-5 V to +5 V)

180 kΩ

Cable length — shielded, max.

200 m

Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.

16 bit

Integration and conversion time/resolution per channel — Conversion time (per channel)

50 ms @ 60 Hz, 60 ms @ 50 Hz, 180 ms @ 16.6 Hz, 250 µs without filter

Smoothing of measured values — Number of smoothing levels

4

Smoothing of measured values — Step

low: Yes; 4x smoothing

Linearity error (relative to input range), (+/-)

0.01 %

Temperature error (relative to input range), (+/-)

0.005 %/K

Crosstalk between the inputs, min.

-50 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)

0.05 %

Operational error limit in overall temperature range — Voltage, relative to input range, (+/-)

0.5 %

Basic error limit (operational limit at 25 °C) — Voltage, relative to input range, (+/-)

0.3 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode voltage, max.

10 V

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode interference, min.

90 dB

Diagnoses — short-circuit

Yes; at 1 to 5 V

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Between the inputs (UCM)

10 Vpp

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C; < 0 °C as of FS04

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C; < 0 °C as of FS04

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

31 g

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Resolution of the analogue inputs

16 Bit

Number of analogue inputs

2

Degree of protection (IP)

IP20

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
