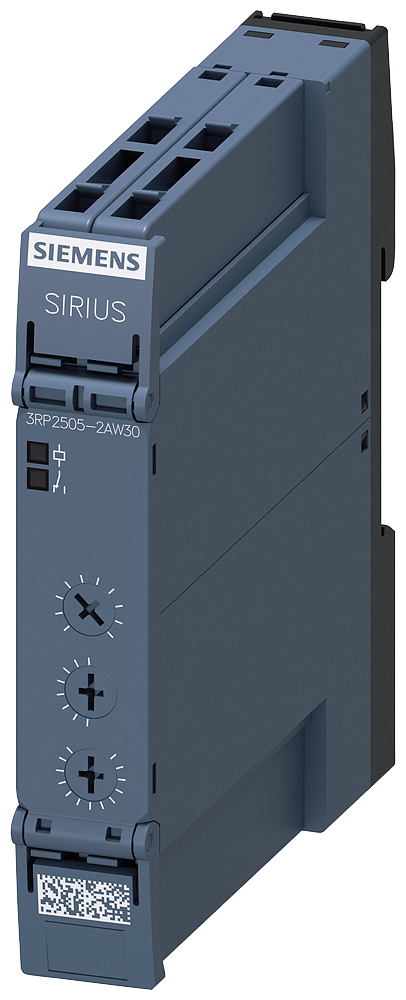

Siemens SIRIUS 3RP25 Time relay -Multi-function 3RP2505-2AW30
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RP2505-2AW30 SIRIUS 3RP25 Time relay -Multifunction.
Technical Specifications
- Manufacturer part number (MPN)
- 3RP2505-2AW30
- EAN / GTIN
- 4011209943483
- HS code
- 8536.90
- Sales unit
- pcs
- Type of electric connection
- Spring clamp connection
- Function delay-on energization
- Yes
- Function delay on de-energization
- No
- Function floating contact on energization
- Yes
- Function floating contact on de-energization
- Yes
- Function star-delta
- No
- Function pulse shaping
- Yes
- Function flashing, starting with pause, fixed time
- Yes
- Function flashing, starting with pulse, fixed time
- Yes
- Clock function, starting with pause, variable
- No
- Clock function, starting with pulse, variable
- No
- With plug-in socket
- Yes
- Remote operation possible
- No
- Suitable as remote control
- No
- Pluggable on auxiliary contact block
- No
- Rated control supply voltage AC 50 Hz
- 12–240 V
- Rated control supply voltage AC 60 Hz
- 12–240 V
- Rated control supply voltage DC
- 12–240 V
- Voltage type for actuating
- AC/DC
- Time range
- 0.000833333333333333–6000 s
- Number of outputs, delayed, change-over contact
- 1
- Outputs, reversible delayed/undelayed
- No
- With semiconductor output
- No
- Suitable for DIN rail (top hat rail) mounting
- No
- Suitable for front mounting
- No
- Width
- 17.5 mm
- Height
- 100 mm
- Depth
- 90 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209943483
- SAP 1000775081
- Code 81386246
