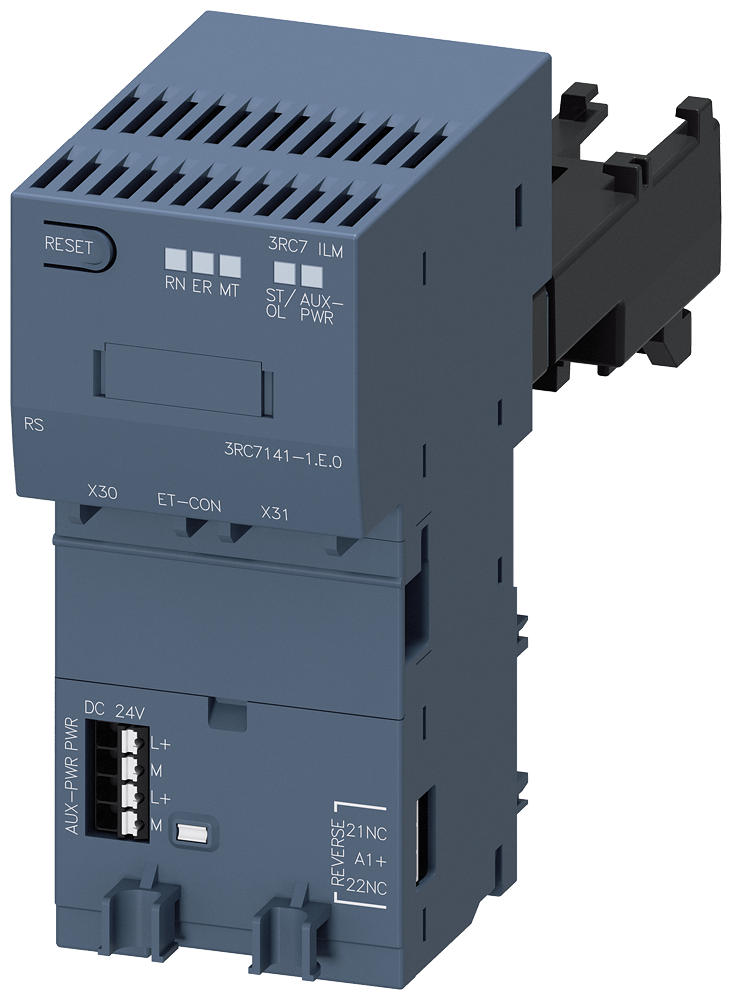

Siemens Inteligent Linkmodul(ILM)for direction of rotation, 0,4-4AMP
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RC71411EE10 Inteligent Linkmodul(ILM)for direction of rotation, 0,4-4Amp. For sammenstilling with 3RV+3RT.
Technical Specifications
- Manufacturer part number (MPN)
- 3RC71411EE10
- EAN / GTIN
- 4047621103327
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 135.8 mm
- Depth
- 148.5 mm
- With transformer
- No
- Power consumption
- 0.5 W
- Suitable for emergency stop
- No
- Rated operation current Ie
- 4 A
- Overload release current setting
- 0.4–4 A
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- Yes
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- Yes
- External reset possible
- No
- Suitable for rail mounting
- No
- Rated control supply voltage AC 50 Hz
- 230–690 V
- Rated control supply voltage AC 60 Hz
- 230–690 V
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- Adjustable
- With short-circuit release
- No
- With fuse
- No
- Type of electrical connection of main circuit
- Spring clamp connection
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- Yes
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- DC
- Type of motor starter
- Reversing starter
- Ambient temperature, upper operating limit
- 60 °C
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4047621103327
- SAP 1200841024
- Code 84032586
Product Documentation
More from Siemens
Siemens
Siemens Alpha 1600 Din mounting Set for Circuit breaker VL1250/1600 3/4 Pole, H=600 B=500 D=400
8GK4705-4KK25
Siemens
Siemens SIRIUS ACT Key for RONIS key-operated switch, Lock No. 455
3SU1950-0FC80-0AA0
Siemens
Siemens SIMATIC S7 automation module 6ES7141-4BF00-0AA0
Siemens
Siemens SCALANCE XB108-2; 8 x 10/100 Mbit/s RJ45 porter + 2 x 100 Mbit/s SC-port multimode
6GK5108-2BD00-2AB2
Siemens
Siemens Alpha 630 Din, mounting Rail, Width = 1250 mm (1 Set = 10 Units)
8GK9910-1KK50
Siemens

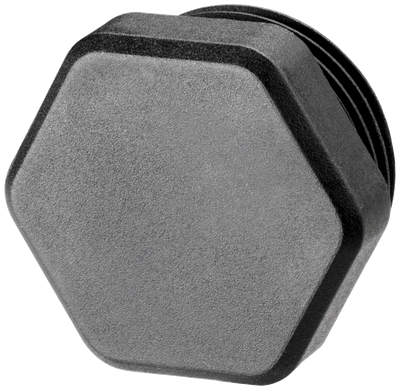

Siemens SIMATIC S7 automation module 6ES7194-3JA00-0AA0
