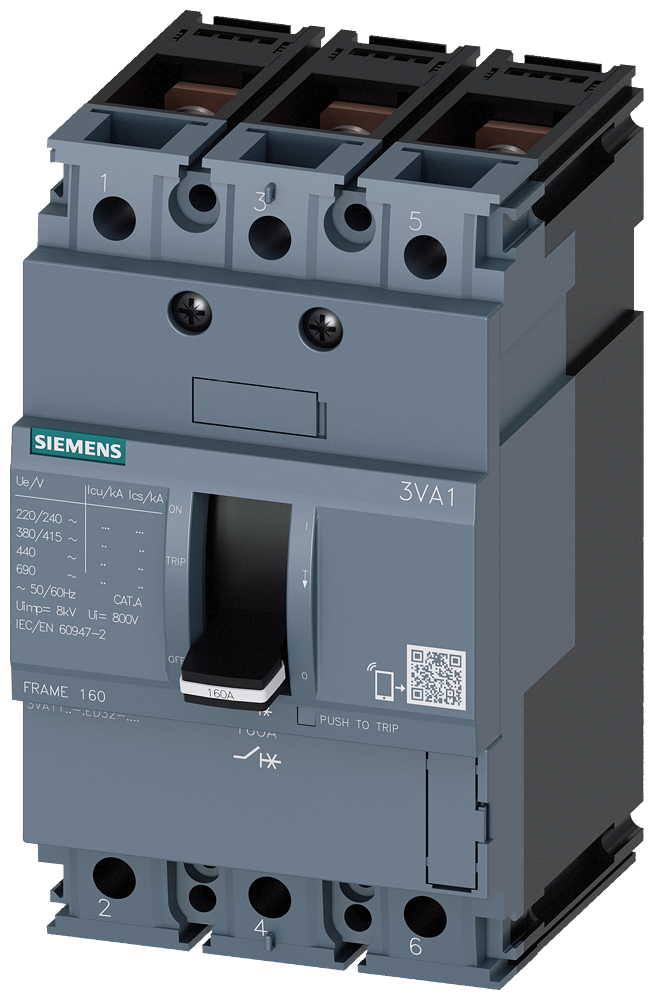

Siemens 3VA1 Moulded-Case Circuit Breaker 55 kA 3-Pole TM210 100 A

Siemens 3VA11105ED320AA0 moulded-case circuit breaker, 3VA1 series, 55 kA, 3-pole, TM210 trip unit with fast thermal and instantaneous release, 100 A, bolt connection. 690 V rated voltage, 100 A rated permanent current Iu, undelayed short-circuit release setting 1000 A. IP40, screw connection at the main circuit, rocker-lever control; withdrawable slide-in design with optional DIN-rail mounting. HS code 8536.90.

Manufacturer part number (MPN)

3VA11105ED320AA0

EAN / GTIN

4042948812761

HS code

8536.90

Sales unit

pcs

Rated current

100 A

Number of poles

3

Breaking capacity

55 kA

Rated permanent current Iu

100 A

With integrated under voltage release

No

Overload release current setting

100 A

Rated voltage

690 V

Power loss

25 W

Degree of protection (IP)

IP40

Position of connection for main current circuit

Front side

Motor drive integrated

No

Type of electrical connection of main circuit

Screw connection

Type of control element

Rocker lever

With switched-off indicator

No

Rated short-circuit breaking capacity Icu at 400 V, 50 Hz

55 kA

Adjustment range undelayed short-circuit release

1000 A

Suitable for DIN rail (top hat rail) mounting

Yes

Integrated earth fault protection

No

Motor drive optional

Yes

Device construction

Built-in device slide-in technique (withdrawable)

DIN rail (top hat rail) mounting optional

Yes

Complete device with protection unit

Yes

Country of origin

Czechia

HS Code

8536.90

• EAN 4042948812761
• SAP 1000731658
• Code 8356910
