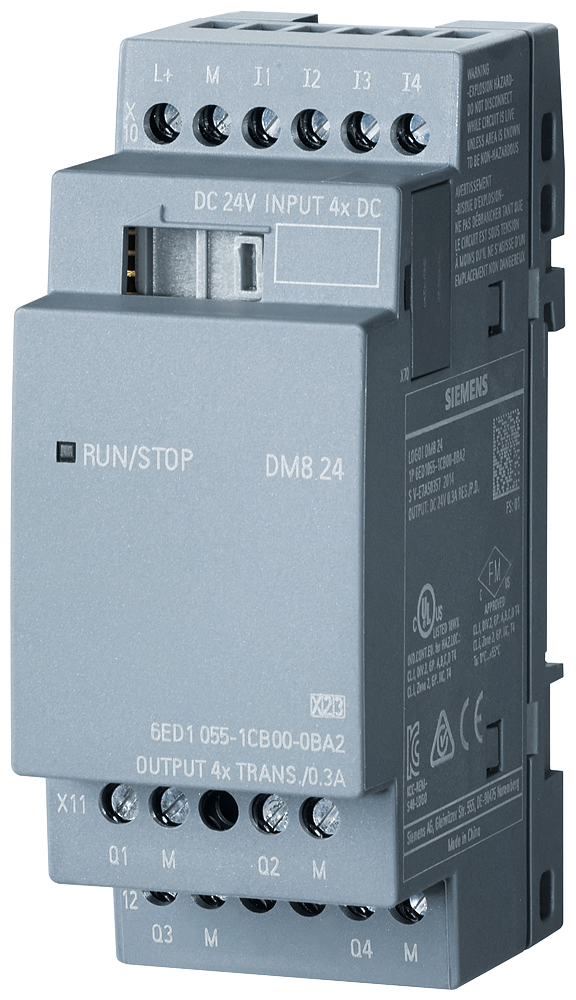

Siemens LOGO! DM8 24 expansion module, PS/I/O: 24V/24V/trans., 4 DI/4 DO for LOGO! 8
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6ED1055-1CB00-0BA2 — LOGO! logic module. Compact micro-controller for small automation and building-services tasks. DM8 24 Expansion Module, PU/In/O: 24V/24V/Trans., 4 DI/4 DO.
Technical Specifications
- Manufacturer part number (MPN)
- 6ED1055-1CB00-0BA2
- EAN / GTIN
- 4034106029432
- Sales unit
- pcs
- Mounting
- on 35 mm DIN rail, 2 spacing units wide
- Rated value (DC) — 24 V DC
- Yes
- Permissible range, lower limit (DC)
- 20.4 V
- Permissible range, upper limit (DC)
- 28.8 V
- Number of digital inputs
- 4
- Input voltage — Type of input voltage
- DC
- Input voltage — for signal "0"
- < 5 V DC
- Input voltage — for signal "1"
- > 12 V DC
- Input current — for signal "0", max. (permissible quiescent current)
- 0.88 mA
- Input current — for signal "1", typ.
- 2.1 mA
- For standard inputs — at "0" to "1", max.
- 1.5 ms
- For standard inputs — at "1" to "0", max.
- 1.5 ms
- Number of digital outputs
- 4
- Short-circuit protection
- Yes
- Output current — for signal "1" rated value
- 0.3 A
- Parallel switching of two outputs — for uprating
- No
- Switching frequency — with resistive load, max.
- 10 Hz
- Switching frequency — with inductive load, max.
- 0.5 Hz
- Emission of radio interference acc. to EN 55 011 — Limit class B, for use in residential areas
- Yes
- IP degree of protection
- IP20
- CE mark
- Yes
- CSA approval
- Yes
- UL approval
- Yes
- FM approval
- Yes
- Developed in accordance with IEC 61131
- Yes
- According to VDE 0631
- Yes
- Marine approval
- Yes
- Ambient temperature during operation — min.
- -20 °C; No condensation
- Ambient temperature during operation — max.
- 55 °C
- Dimensions — Width
- 35.5 mm
- Dimensions — Height
- 90 mm
- Dimensions — Depth
- 58 mm
- Voltage type (supply voltage)
- DC
- Input current at signal 1
- 2.1 mA
- Type of voltage (input voltage)
- DC
- Type of digital output
- Transistor
- Output current
- 0.3 A
- Type of output voltage
- DC
- Type of electric connection
- Screw connection
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Width
- 35.5 mm
- Height
- 90 mm
- Depth
- 58 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4034106029432
- SAP 1000635600
- Code 8578600
Product Documentation
