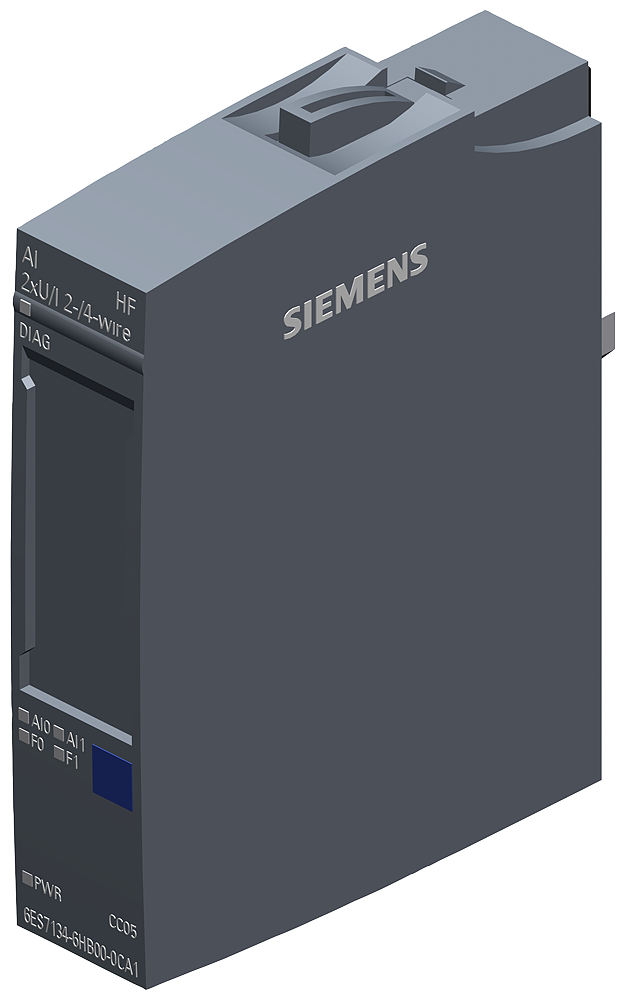

Siemens SIMATIC ET 200SP AI 2 X U/I 2-, 4-Wire HF

Siemens 6ES7134-6HB00-0CA1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. ET200SP AI2xU/In, 2/4-wire HF.

Manufacturer part number (MPN)

6ES7134-6HB00-0CA1

EAN / GTIN

4047623403357

HS code

8544.42

Sales unit

pcs

Product type designation

AI 2xU/I 2-/4-wire HF

Product function — Isochronous mode

Yes; 250 µs

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V13

Engineering with — STEP 7 configurable/integrated from version

V5.5 / -

Engineering with — PCS 7 configurable/integrated from version

V8.1 SP1

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

39 mA; without sensor supply

24 V encoder supply — Output current, max.

20 mA; max. 50 mA per channel for a duration < 10 s (two-wire)

Additional 24 V encoder supply — Output current, max.

100 mA; max. 150 mA for a duration of < 10 s (four-wire)

Power loss, typ.

0.95 W; without sensor supply

Address space per module — Address space per module, max.

4 byte; + 4 byte for scaling of measured values, + 1 byte for QI information

Selection of BaseUnit for connection variants — 2-wire connection

BU type A0, A1

Selection of BaseUnit for connection variants — 4-wire connection

BU type A0, A1

Number of analog inputs

2; Differential inputs

Number of analog inputs — For current measurement

2

Number of analog inputs — For voltage measurement

2

Permissible input voltage for voltage input (destruction limit), max.

30 V

Permissible input current for current input (destruction limit), max.

50 mA

Input ranges (rated values), voltages — 0 to +10 V

Yes; 15 bit

Input ranges (rated values), voltages — Input resistance (0 to 10 V)

75 kΩ

Input ranges (rated values), voltages — 1 V to 5 V

Yes; 15 bit

Input ranges (rated values), voltages — Input resistance (1 V to 5 V)

75 kΩ

Input ranges (rated values), voltages — -10 V to +10 V

Yes; 16 bit incl. sign

Input ranges (rated values), voltages — Input resistance (-10 V to +10 V)

75 kΩ

Input ranges (rated values), voltages — -5 V to +5 V

Yes; 16 bit incl. sign

Input ranges (rated values), voltages — Input resistance (-5 V to +5 V)

75 kΩ

Input ranges (rated values), currents — 0 to 20 mA

Yes; 15 bit

Input ranges (rated values), currents — Input resistance (0 to 20 mA)

130 Ω

Input ranges (rated values), currents — -20 mA to +20 mA

Yes; 16 bit incl. sign

Input ranges (rated values), currents — Input resistance (-20 mA to +20 mA)

130 Ω

Input ranges (rated values), currents — 4 mA to 20 mA

Yes; 15 bit

Input ranges (rated values), currents — Input resistance (4 mA to 20 mA)

130 Ω

Cable length — shielded, max.

1 000 m; 200 m for voltage measurement

Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.

16 bit

Integration and conversion time/resolution per channel — Integration time (ms)

67.5 / 22.5 / 18.75 / 10 / 5 / 2.5 / 1.25 / 0.625 ms

Integration and conversion time/resolution per channel — Basic conversion time, including integration time (ms)

68.03 / 22.83 / 19.03 / 10.28 / 5.23 / 2.68 / 1.43 / 0.730 ms

Integration and conversion time/resolution per channel — Conversion time (per channel)

68.2 / 23 / 19.2 / 10.45 / 5.40 / 2.85 / 1.6 / 0.9 ms

Integration and conversion time/resolution per channel — Basic execution time of the module (all channels released)

1 ms

Linearity error (relative to input range), (+/-)

0.01 %

Temperature error (relative to input range), (+/-)

0.003 %/K

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)

0.01 %

Operational error limit in overall temperature range — Voltage, relative to input range, (+/-)

0.1 %

Operational error limit in overall temperature range — Current, relative to input range, (+/-)

0.1 %

Basic error limit (operational limit at 25 °C) — Voltage, relative to input range, (+/-)

0.05 %; 0.1 % at SFU 4.8 kHz

Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-)

0.05 %; 0.1 % at SFU 4.8 kHz

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode voltage, max.

35 V

Filtering and processing time (TCI), min.

800 µs

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C; < 0 °C as of FS06

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C; < 0 °C as of FS06

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

32 g

HS Code

8544.42
