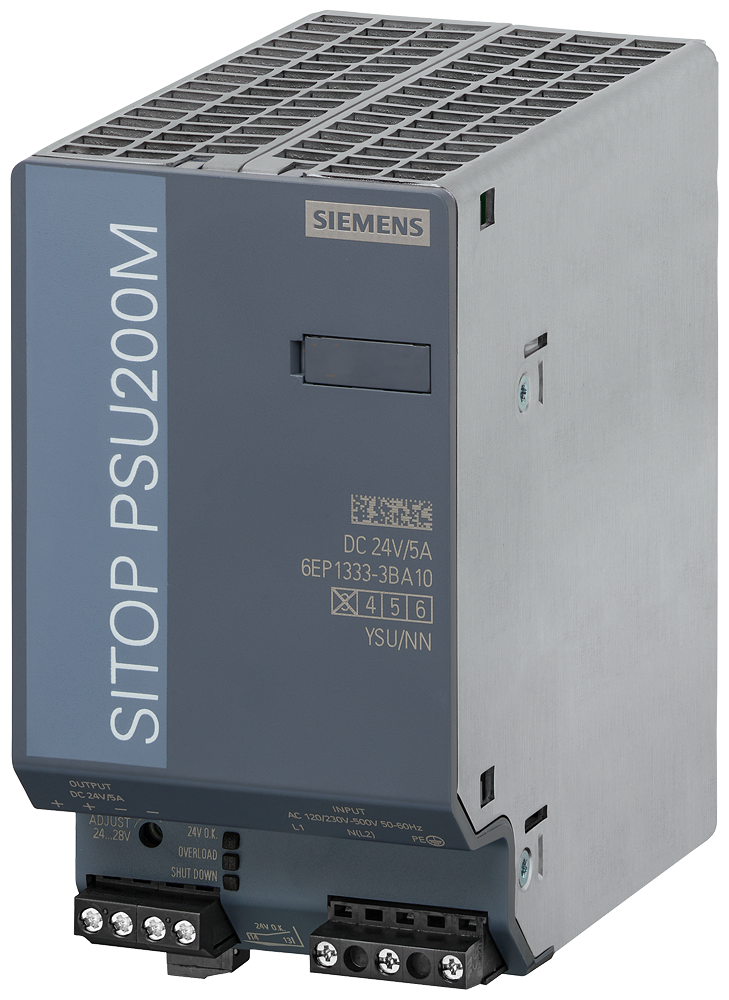

Siemens SITOP DC power supply 6EP1333-3BA10

Siemens 6EP1333-3BA10 — SITOP DC power supply. DIN-rail primary-switched regulated 24 VDC power supply for automation panels. SITOP PSU200M 5 A Power supply. Input: 120/230-500 VAC. Output: 24 V/5 A DC.

Manufacturer part number (MPN)

6EP1333-3BA10 EAN / GTIN: 4025515152873 Sales unit: pcs Type of the power supply network: 1-phase and 2-phase AC Supply voltage 1 at AC: 120 ... 230 V Supply voltage 2 at AC: 230 ... 500 V Input voltage 1 at AC: 85 ... 264 V Input voltage 2 at AC: 176 ... 550 V Wide range input: Yes Overvoltage overload capability: 1300 Vpeak, 1.3 ms Buffering time for rated value of the output current in the event of power failure minimum: 25 ms Line frequency: 47 ... 63 Hz Input current — at rated input voltage 120 V: 2.2 A Input current — at rated input voltage 230 V: 1.2 A Current limitation of inrush current at 25 °C maximum: 35 A Fuse protection type: T 3.15 A (not accessible) Voltage curve at output: Controlled, isolated DC voltage Output voltage at DC rated value: 24 V Output voltage adjustable: Yes; via potentiometer Adjustable output voltage: 24 ... 28.8 V Relative overall tolerance of the voltage: 3 % Residual ripple maximum: 50 mV Display version for normal operation: Green LED for 24 V OK Response delay maximum: 1 s Output current — rated value: 5 A Output current — rated range: 0 ... 5 A Supplied active power typical: 120 W Number of parallel-switched equipment resources for increasing the power: 2 Efficiency in percent: 88 % Power loss [W] at rated output voltage for rated value of the output current typical: 17 W Design of the overvoltage protection: < 35 V Property of the output short-circuit proof: Yes Design of short-circuit protection: constant current characteristic approx. 5.5 A or latching shutdown Display version for overload and short circuit: LED yellow for "overload", LED red for "latching shutdown" Galvanic isolation between input and output: Yes Galvanic isolation: Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7) Operating resource protection class: Class I Leakage current maximum: 3.5 mA Protection class IP: IP20 Standard for emitted interference: EN 55022 Class B Standard for interference immunity: EN 61000-6-2 Ambient temperature — during operation: -25 ... +70 °C; with natural convection; startup tested from -40 °C Ambient temperature — during storage: -40 ... +85 °C Type of electrical connection: screw terminal Connection method — at input: L, N PE: 0.2 ... 2.5 mm² single-core/finely stranded Connection method — at output: +, -: 2 screw terminals each for 0.2 ... 2.5 mm² Width × height × depth of the enclosure: 70 × 125 × 121 mm Fastening method: Snaps onto DIN rail EN 60715 35x7.5/15 Mechanical data — net weight: 0.6 kg Voltage type (supply voltage): AC 1st secondary output voltage: 24 V Max. output current 1: 5 A Secondary voltage adjustable: Yes Nominal value output voltage 1: 24 V Nominal value output current 1: 5 A Short-circuit-proof: Yes Rated supply voltage AC 50 Hz: 230 V Rated supply voltage AC 60 Hz: 120 V Output voltage stabilized: Yes Power output: 120 W Stabilized: Yes Type of electric connection: Screw connection Suitable for rail mounting: Yes Wall mounting possible: No Suitable for distribution board: Yes Built-in width: 70 mm Built-in height: 225 mm Direct mounting possible: No Width: 70 mm Height: 125 mm Depth: 121 mm Suitable for safety functions: No Degree of protection (IP): IP20 Suitable for wall mounting: No Country of origin: Germany

HS Code

8504.40

• EAN 4025515152873
• SAP 1000644293
• Code 8183661
