Siemens 5TT4105-3 Impulse Relay 1 NO + 1 NC AC 230/400V 16A Coil 12V AC
Pricing
Request a quote
We reply within 24 hours
Product Description
The Siemens 5TT4105-3 is an impulse relay with one NO and one NC contact for AC 230/400 V circuits at 16 A, with a 12 V AC coil supply. DIN-rail mounted, one module wide with a 70 mm built-in depth, rated for 2000 W incandescent load and 500 VA fluorescent lamp load. Suitable for centralised lighting control from momentary push buttons.
Technical Specifications
- Manufacturer part number (MPN)
- 5TT4105-3
- EAN / GTIN
- 4001869312514
- Sales unit
- pcs
- Voltage
- 400 V
- Rated current
- 16 A
- Contact configuration
- 1 NO + 1 NC
- Mounting method
- DIN rail
- Function
- Mechanical switch
- Built-in depth
- 70 mm
- Width in number of modular spacings
- 1
- Type of control voltage 1
- AC
- Type of control voltage 2
- AC/DC
- Suitable for manual operation
- Yes
- Voltage type (supply voltage)
- AC
- Max. switching current (cos phi = 0.6)
- 16 A
- Max. incandescent lamp load
- 2000 W
- Max. load fluorescent lamp
- 500 VA
- Rated switch current
- 16 A
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4001869312514
- SAP 1000022642
- Code 8177835
Product Documentation
More from Siemens
Siemens
Siemens Busbar, 3-Phase for residual current circuit breaker with overcurrent 2-Pole+AFD
5ST3740-2
Siemens
Siemens Alpha 400/630/1600 Din, Copper Busbar 30X5MM, 450A, L=500
8GK9735-0KK20
Siemens
Siemens SIRIUS ACT Enclosure for command devices, 22 mm, round, Enclosure material plastic, enclosure top part gray, 3 control points plastic, Recess for labels, without equipment
3SU1803-0AA00-0AB1
Siemens
Siemens 8WD4328-1XX
Siemens
Siemens SCALANCE X005, IE Entry Level Switch
6GK5005-0BA10-1AA3
Siemens
Siemens SENTRON 5SY5213-7 Miniature Circuit Breaker 2-Pole C13A 10KA
Siemens
Siemens SITOP DC power supply 6EP1332-4BA00
Siemens

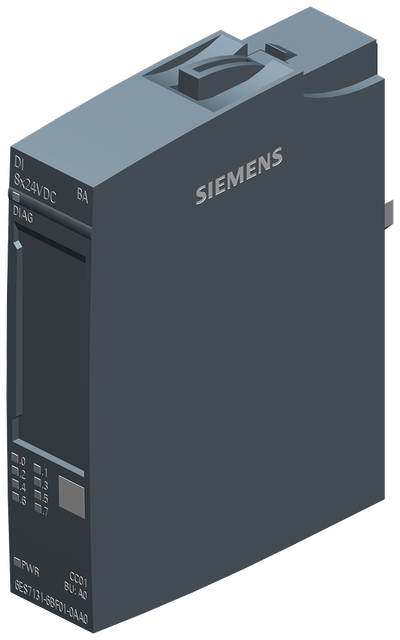

Siemens SIMATIC ET 200SP DI 8X 24V DC Basic
