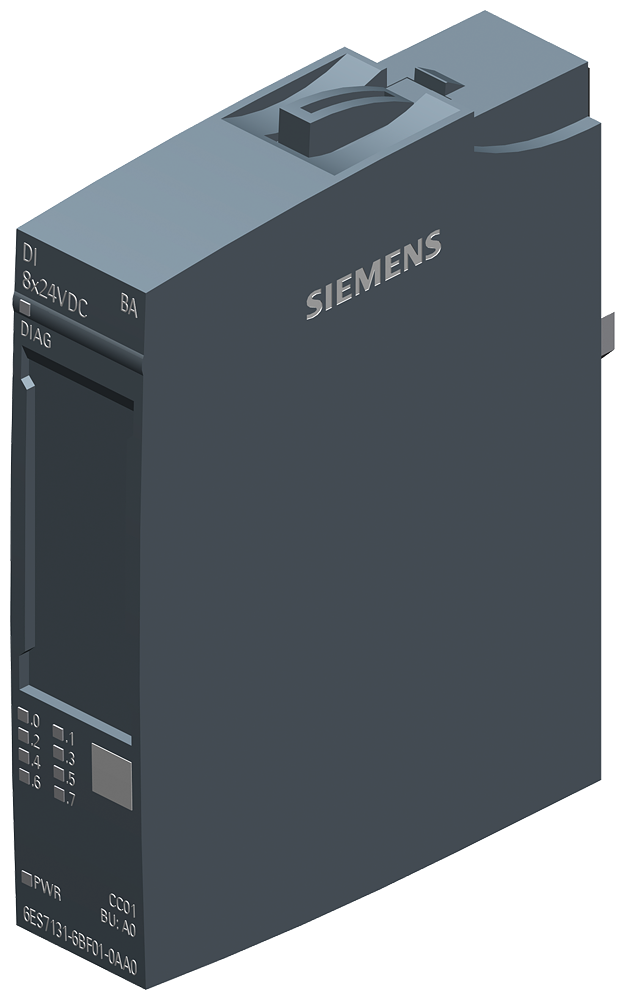

Siemens SIMATIC ET 200SP DI 8X 24V DC Basic

Siemens 6ES7131-6BF01-0AA0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC ET 200SP, Digital input module, DI 8X24VDC basic.

Manufacturer part number (MPN)

6ES7131-6BF01-0AA0

EAN / GTIN

4047623408673

Sales unit

pcs

Product type designation

DI 8x24VDC BA

HW functional status

FS03

Firmware version

V0.0

Firmware version — FW update possible

No

Usable BaseUnits

BU type A0

Color code for module-specific color-coded label

CC01

Product function — I&M data

Yes; I&M0 to I&M3

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V14

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3 / -

Engineering with — PROFIBUS from GSD version/GSD revision

One GSD file each, Revision 3 and 5 and higher

Engineering with — PROFINET from GSD version/GSD revision

GSDML V2.3

Operating mode — Counter

No

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption, max.

70 mA; All channels are supplied from the encoder supply

Number of outputs

8

Output voltage, min.

19.2 V

Short-circuit protection

Yes; per module

24 V encoder supply — Short-circuit protection

Yes

24 V encoder supply — Output current per channel, max.

700 mA

24 V encoder supply — Output current per module, max.

700 mA

Power loss, typ.

1.6 W; 24 V, 8 inputs supplied via encoder supply

Address space per module — Inputs

1 byte

Selection of BaseUnit for connection variants — 1-wire connection

BU type A0

Selection of BaseUnit for connection variants — 2-wire connection

BU type A0

Selection of BaseUnit for connection variants — 3-wire connection

BU type A0 with AUX terminals or potential distributor module

Selection of BaseUnit for connection variants — 4-wire connection

BU type A0 + Potential distributor module

Number of digital inputs

8

Digital inputs, parameterizable

Yes

Sourcing/sinking input

P-reading

Input characteristic curve in accordance with IEC 61131, type 1

Yes

Input characteristic curve in accordance with IEC 61131, type 2

Yes

Input characteristic curve in accordance with IEC 61131, type 3

Yes

Input voltage — Rated value (DC)

24 V

Input voltage — for signal "0"

-30 to +5 V

Input voltage — for signal "1"

+11 to +30V

Input current — for signal "1", typ.

6.8 mA

For standard inputs — parameterizable

Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length)

For standard inputs — at "0" to "1", min.

0.05 ms

For standard inputs — at "0" to "1", max.

20 ms

For standard inputs — at "1" to "0", min.

0.05 ms

For standard inputs — at "1" to "0", max.

20 ms

Cable length — shielded, max.

1 000 m

Cable length — unshielded, max.

600 m

Connectable encoders — permissible quiescent current (2-wire sensor), max.

2 mA

Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)

Yes; green PWR LED

Diagnostics indication LED — Channel status display

Yes; green LED

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C; < 0 °C as of FS03

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C; < 0 °C as of FS03

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

28 g

Supporting protocol for EtherCAT

Yes

Voltage type (supply voltage)

DC

Input current at signal 1

6.8 mA

Type of voltage (input voltage)

DC

Type of digital output

None

Supporting protocol for PROFIBUS

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFIsafe

No

Degree of protection (IP)

IP20

Type of electric connection

Spring clamp connection

Suitable for safety functions

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
