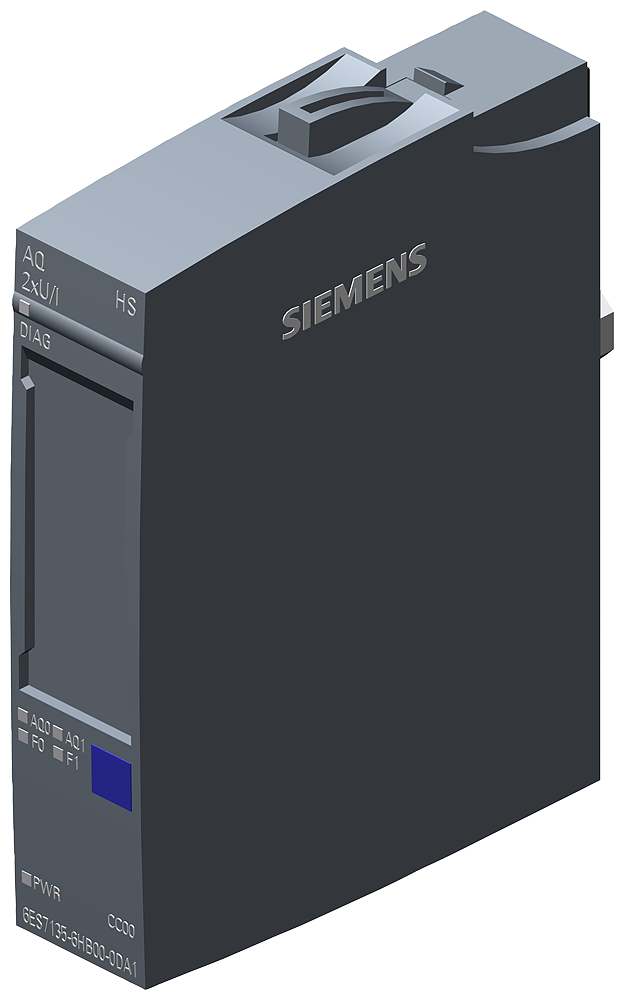

Siemens SIMATIC ET 200SP AQ 2 X U/I High Speed

Siemens 6ES7135-6HB00-0DA1 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. ET200SP, 4x Analog Output U/In.

Manufacturer part number (MPN)

6ES7135-6HB00-0DA1

EAN / GTIN

4025515082644

Sales unit

pcs

Product type designation

AQ 2xU/I HS

HW functional status

From FS06

Usable BaseUnits

BU type A0, A1

Color code for module-specific color-coded label

CC00

Product function — I&M data

Yes; I&M0 to I&M3

Product function — Isochronous mode

Yes; 125 µs

Engineering with — STEP 7 TIA Portal configurable/integrated from version

V13 SP1

Engineering with — STEP 7 configurable/integrated from version

V5.5 SP3 / -

Engineering with — PROFIBUS from GSD version/GSD revision

GSD Revision 5

Rated value (DC)

24 V

Permissible range, lower limit (DC)

19.2 V

Permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

45 mA; without load

Current consumption, max.

90 mA; 2 channels current output 20 mA

Power loss, typ.

0.9 W

Address space per module — Address space per module, max.

4 byte; + 1 byte for QI information (32 bytes in the oversampling operating mode)

Number of analog outputs

2

Voltage output, short-circuit current, max.

45 mA

Cycle time (all channels), min.

125 µs

Analog output with oversampling — Values per cycle, max.

16

Analog output with oversampling — Resolution, min.

45 µs; (2 channels), 35 µs (1 channel)

Output ranges, voltage — 0 to 10 V

Yes; 15 bit

Output ranges, voltage — 1 V to 5 V

Yes; 13 bit

Output ranges, voltage — -5 V to +5 V

Yes; 15 bit incl. sign

Output ranges, voltage — -10 V to +10 V

Yes; 16 bit incl. sign

Output ranges, current — 0 to 20 mA

Yes; 15 bit

Output ranges, current — -20 mA to +20 mA

Yes; 16 bit incl. sign

Output ranges, current — 4 mA to 20 mA

Yes; 14 bit

Load impedance (in rated range of output) — with voltage outputs, min.

2 kΩ

Load impedance (in rated range of output) — with voltage outputs, capacitive load, max.

1 µF

Load impedance (in rated range of output) — with current outputs, max.

500 Ω

Load impedance (in rated range of output) — with current outputs, inductive load, max.

1 mH

Destruction limits against externally applied voltages and currents — Voltages at the outputs

30 V

Cable length — shielded, max.

1 000 m; 200 m for voltage output

Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max.

16 bit

Settling time — for resistive load

0.05 ms

Settling time — for capacitive load

0.05 ms; Max. 47 nF and 20 m cable length

Settling time — for inductive load

0.05 ms

Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-)

0.02 %

Linearity error (relative to output range), (+/-)

0.03 %

Temperature error (relative to output range), (+/-)

0.003 %/K

Crosstalk between the outputs, max.

-50 dB

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)

0.03 %

Operational error limit in overall temperature range — Voltage, relative to output range, (+/-)

0.2 %

Operational error limit in overall temperature range — Current, relative to output range, (+/-)

0.2 %

Basic error limit (operational limit at 25 °C) — Voltage, relative to output range, (+/-)

0.1 %

Basic error limit (operational limit at 25 °C) — Current, relative to output range, (+/-)

0.1 %

Execution and activation time (TCO), min.

70 µs

Bus cycle time (TDP), min.

125 µs

Isolation tested with

707 V DC (type test)

Ambient temperature during operation — horizontal installation, min.

-30 °C; < 0 °C as of FS06

Ambient temperature during operation — horizontal installation, max.

60 °C

Ambient temperature during operation — vertical installation, min.

-30 °C; < 0 °C as of FS06

Ambient temperature during operation — vertical installation, max.

50 °C

Altitude during operation relating to sea level — Installation altitude above sea level, max.

5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity — dew point, min.

-60 °C; suitable for dry room applications

Dimensions — Width

15 mm

Dimensions — Height

73 mm

Dimensions — Depth

58 mm

Weight, approx.

31 g

Supporting protocol for EtherCAT

No

Voltage type (supply voltage)

DC

Input, current

No

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue outputs

16 Bit

Number of analogue outputs

2

Analogue inputs configurable

No

Degree of protection (IP)

IP20

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

15 mm

Height

73 mm

Depth

58 mm

Country of origin

Germany

HS Code

8538.90
