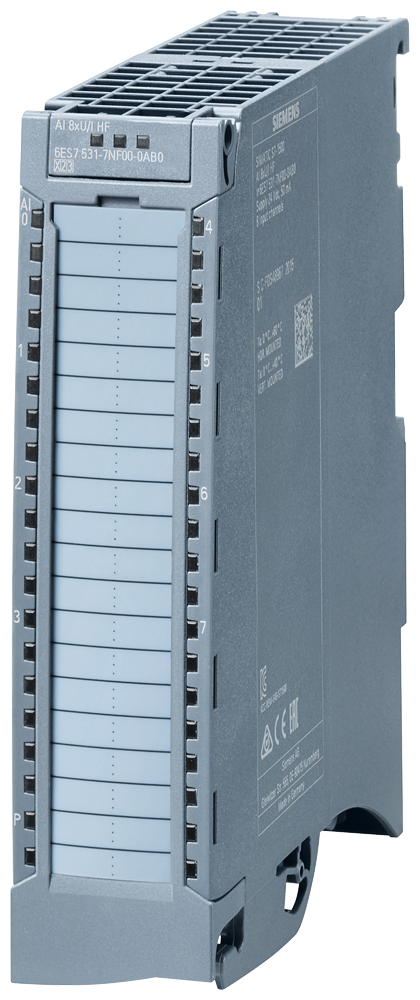

Siemens SIMATIC S7 automation module 6ES7531-7NF00-0AB0

Siemens 6ES7531-7NF00-0AB0 — SIMATIC S7 automation module. Compact controller or expansion module for the S7-1200 or S7-1500 PLC platform. SIMATIC S71500 AI 8xU/In HF,24-bits resolution,8 channels;30VAC/60VDC,Front Contact ordered separately.

Manufacturer part number (MPN)

6ES7531-7NF00-0AB0

EAN / GTIN

4047623406549

Sales unit

pcs

Product type designation

AI 8xU/I HF

HW functional status

from FS01

Firmware version

V1.1.0

FW update possible

Yes

I&M data

Yes; I&M0 to I&M3

Isochronous mode

No

Prioritized startup

Yes

Measuring range scalable

No

Scalable measured values

Yes

Adjustment of measuring range

Yes

STEP 7 TIA Portal configurable/integrated from version

V14 / -

STEP 7 configurable/integrated from version

V5.5 SP3 / -

PROFIBUS from GSD version/GSD revision

V1.0 / V5.1

PROFINET from GSD version/GSD revision

V2.3 / -

MSI

Yes

Reparameterization possible in RUN

Yes

Calibration possible in RUN

Yes

Supply voltage — Rated value (DC)

24 V

Supply voltage — permissible range, lower limit (DC)

19.2 V

Supply voltage — permissible range, upper limit (DC)

28.8 V

Reverse polarity protection

Yes

Current consumption, max.

55 mA; with 19.2 V supply

Power consumption from the backplane bus

0.85 W

Power loss, typ.

1.9 W

Address space per module — Inputs

16 byte

Analog inputs — Number of analog inputs

8

Analog inputs — For current measurement

8

Analog inputs — For voltage measurement

8

permissible input voltage for voltage input (destruction limit), max.

28.8 V

permissible input current for current input (destruction limit), max.

40 mA

Voltage input ranges

1 V to 5 V, -10 V to +10 V, -2.5 V to +2.5 V, -5 V to +5 V (input resistance 100 kΩ)

Current input ranges

0 to 20 mA, -20 mA to +20 mA, 4 mA to 20 mA (input resistance 25 Ω plus approx. 42 Ω PTC overvoltage protection)

Cable length shielded, max.

800 m

Measurement principle

integrating

Resolution (bit including sign), max.

24 bit (32 bit REAL with scaling/measuring range adaptation; 16 bit in S7 INTEGER format)

Integration time, parameterizable

Yes

Integration time (ms)

Fast mode 2.5 / 16.67 / 20 / 100 ms; standard mode 7.5 / 50 / 60 / 300 ms

Basic conversion time incl. integration time (ms)

Fast mode 4 / 18 / 22 / 102 ms; standard mode 9 / 52 / 62 / 302 ms

Interference voltage suppression for frequency f1 (Hz)

400 / 60 / 50 / 10 Hz

Smoothing of measured values — Number of levels

4 (none / low / medium / high)

Connection for voltage measurement

Yes

Connection for current measurement as 2-wire transducer

Yes; with external transmitter supply

Connection for current measurement as 4-wire transducer

Yes

Linearity error (relative to input range), (+/-)

0.02 %

Temperature error (relative to input range), (+/-)

0.005 %/K

Crosstalk between the inputs, max.

-80 dB

Repeat accuracy in steady state at 25 °C (+/-)

0.02 %

Operational error limit voltage (relative to input range), (+/-)

0.1 %

Operational error limit current (relative to input range), (+/-)

0.1 %

Series mode interference (< rated value of input range), min.

80 dB standard mode, 40 dB fast mode

Common mode voltage, max.

60 V DC / 30 V AC

Common mode interference, min.

80 dB

Diagnostics function

Yes

Diagnostic alarm

Yes

Limit value alarm

Yes; two upper and two lower limit values each

Monitoring the supply voltage

Yes

Wire break detection

Yes; only for 1...5 V and 4...20 mA

Overflow/Underflow diagnostics

Yes

RUN LED

green; ERROR LED: red

Channel status display

Yes; green LED

Isolation between the channels

Yes

Isolation between the channels and backplane bus

Yes

Isolation between the channels and the power supply of the electronics

Yes

Isolation between different circuits

60 V DC / 30 V AC; rated for 120 V AC basic insulation

Isolation tested with

2000 V DC (channels/supply L+/backplane bus); 707 V DC type test (supply L+ to backplane bus)

Siemens Eco Profile (SEP)

Siemens EcoTech

Ambient temperature horizontal installation, min.

-30 °C (from FS02)

Ambient temperature horizontal installation, max.

60 °C

Ambient temperature vertical installation, min.

-30 °C (from FS02)

Ambient temperature vertical installation, max.

40 °C

Installation altitude above sea level, max.

2000 m

Dimensions — Width

35 mm

Dimensions — Height

147 mm

Dimensions — Depth

129 mm

Weight, approx.

280 g

Number of analogue inputs

8

Analogue inputs configurable

Yes

Analogue outputs configurable

No

Input, current

Yes

Input, voltage

Yes

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

Yes

Resolution of the analogue inputs

24 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Type of electric connection

Plug-in connection

Suitable for safety functions

No

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Width

35 mm

Height

147 mm

Depth

129 mm

Country of origin

Germany

HS Code

8538.90
