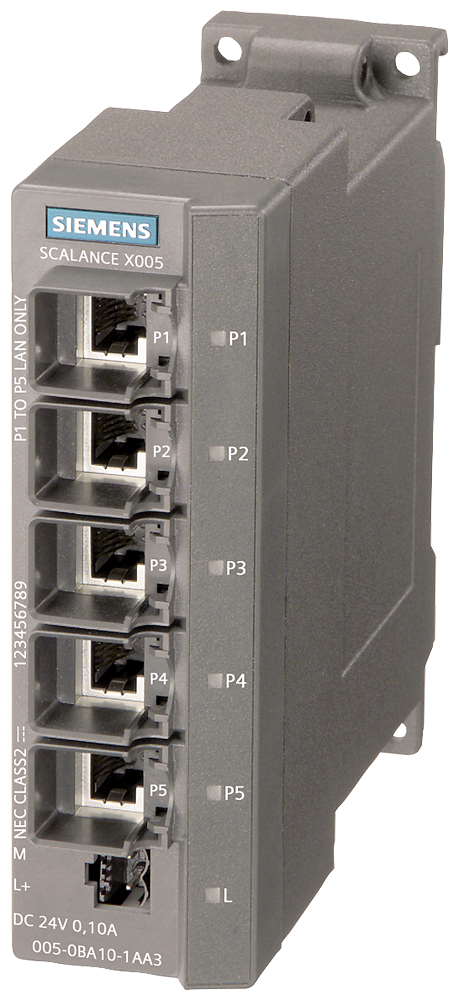

Siemens SCALANCE X005, IE Entry Level Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 6GK5005-0BA10-1AA3 SCALANCE X005, IE Entry Level Switch.
Technical Specifications
- Manufacturer part number (MPN)
- 6GK5005-0BA10-1AA3
- EAN / GTIN
- 4047622454473
- HS code
- 8536.90
- Sales unit
- pcs
- Product brand name
- SCALANCE
- Product type designation
- X005 Industrial Ethernet Switch
- Transfer rate
- 10, 100 Mbit/s
- Number of electrical connections for terminal equipment
- 5; RJ45 with securing collar
- Type of supply voltage
- DC
- Supply voltage rated value
- 24 V
- Supply voltage range
- 18 ... 32 V
- Power loss at rated value
- 2 W
- Consumed current, max.
- 0.08 A
- Type of electrical connection for power supply
- 2-pole terminal block
- Fuse protection type at supply input
- 0.5 A / 60 V
- Ambient temperature during operation
- -40 ... +75 °C
- Ambient temperature during storage
- -40 ... +80 °C
- Relative humidity at 25 °C during operation, max.
- 95 %; without condensation
- Protection class IP
- IP30
- Design
- Compact
- Width
- 40 mm
- Height
- 125 mm
- Depth
- 124 mm
- Net weight
- 0.55 kg
- Mounting
- 35 mm DIN rail, wall, S7-300 rail
- PROFINET conformity class
- A
- Parallel Redundancy Protocol (PRP) operation
- Yes
- CE marking
- Yes
- cULus approval
- Yes
- KC approval
- Yes
- Regulatory Compliance Mark (RCM)
- Yes
- EMC interference emission
- EN 61000-6-4 (Class A)
- EMC immunity
- EN 61000-6-2
- Safety
- UL 60950-1, CSA C22.2 No. 60950-1
- ATEX
- Yes
- UKEX
- Yes
- IECEx
- Yes
- ULhazloc approval
- Yes
- FM registration
- Yes
- RoHS conformity
- Yes
- MTBF
- 167.09 a
- Warranty period
- 5 a
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4047622454473
- SAP 1200104206
- Code 81967546
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 5SY5213-7 Miniature Circuit Breaker 2-Pole C13A 10KA
Siemens
Siemens SITOP DC power supply 6EP1332-4BA00
Siemens
Siemens SIMATIC ET 200SP DI 8X 24V DC Basic
6ES7131-6BF01-0AA0
Siemens
Siemens 5SM2332-6KK01 RCD Block for MCBs, 3-Pole 40 A 30 mA
Siemens
Siemens 8UD1171-2AD15 Lockable Red/Yellow Door Set Size 1/Size 2
Siemens

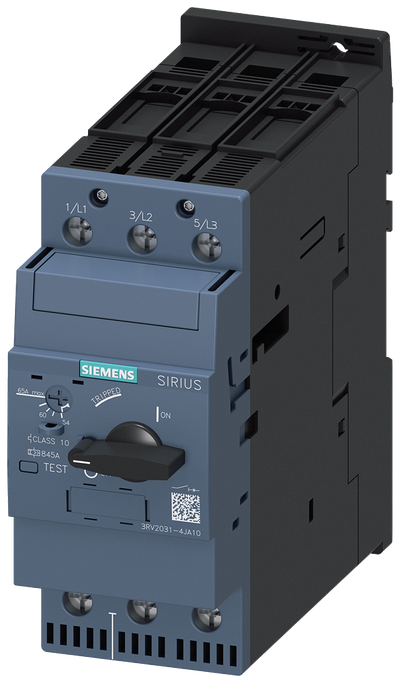

Siemens SIRIUS Motor protection circuit breaker,54 3RV2031-4JA10
Siemens

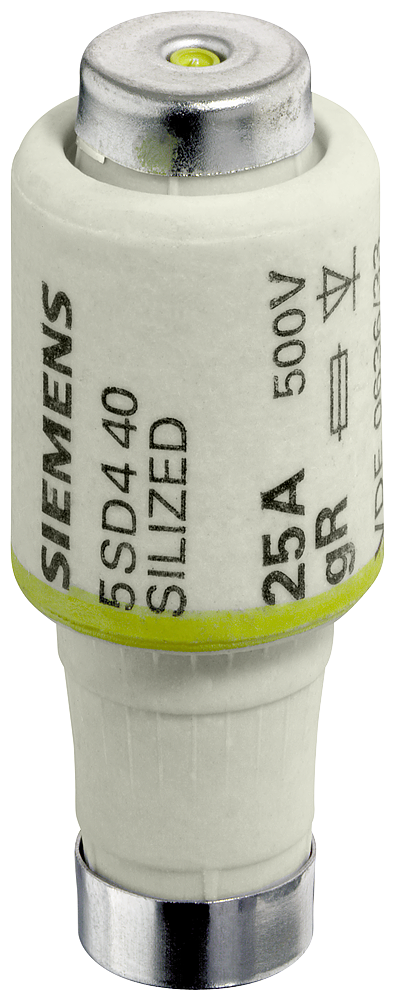

Siemens "Silized Fuse 500 V for Semiconductor Protection Extra Fast, Size Divh P 5SD510
Siemens

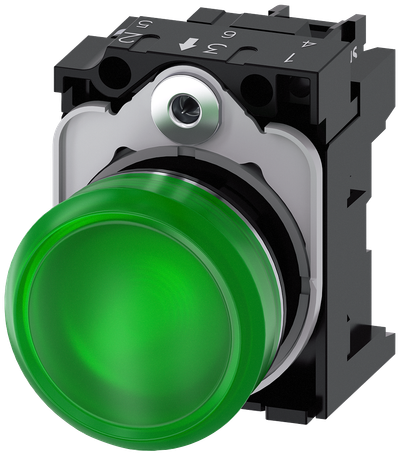

Siemens 3SU1156-6AA40-1AA0 SIRIUS ACT Indicator Light 22 mm, Green LED 230 V AC
