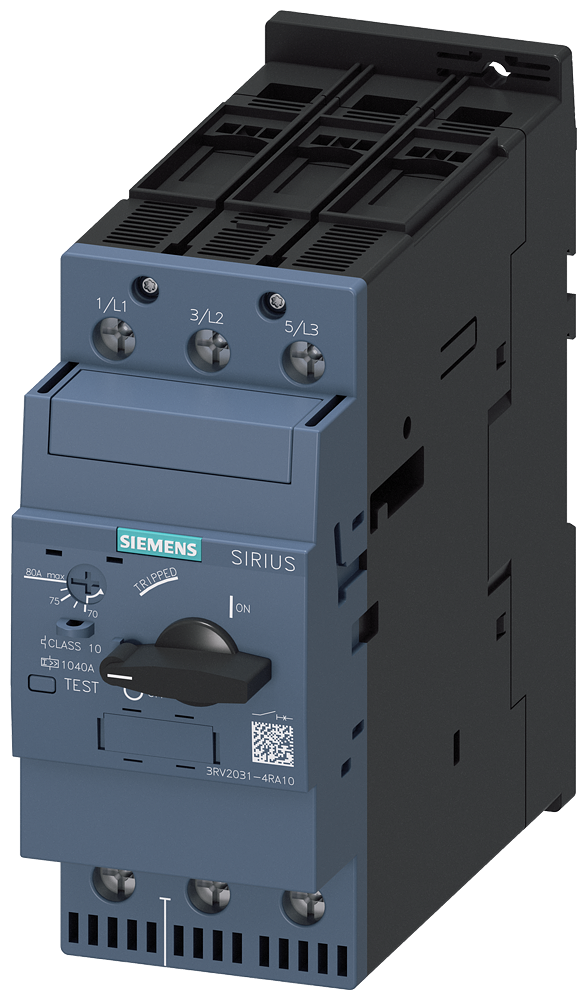

Siemens SIRIUS Motor protection circuit breaker,70 3RV2031-4RA10
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2031-4RA10 SIRIUS Motor protection circuit breaker,70.80A.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2031-4RA10
- EAN / GTIN
- 4011209945609
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 55 mm
- Height
- 140 mm
- Depth
- 149 mm
- Rated operation power at AC-3, 400 V
- 37 kW
- With integrated auxiliary switch
- No
- Rated permanent current Iu
- 80 A
- With integrated under voltage release
- No
- Number of poles
- 3
- Rated operating voltage
- 690 V
- Overload release current setting
- 70–80 A
- Power loss
- 29.5 W
- Degree of protection (IP)
- IP20
- With thermal overload protection
- Yes
- Type of electrical connection of main circuit
- Screw connection
- Switch off technique
- Magnetic
- Rated operation power at AC-3, 230 V
- 22 kW
- Rated short-circuit breaking capacity Icu at 400 V, AC
- 65 kA
- Adjustment range undelayed short-circuit release
- 1040 A
- Phase failure sensitive
- Yes
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209945609
- SAP 1000790376
- Code 81402173
Product Documentation
More from Siemens
Siemens
Siemens SIMATIC S7 automation module 6ES7405-0KR02-0AA0
Siemens
Siemens Accessory for 3KD,ST5, direct rotary control, grey, lockable
3KD9501-1
Siemens
Siemens Earth-fault RCD 5SU1354-7LB25
Siemens

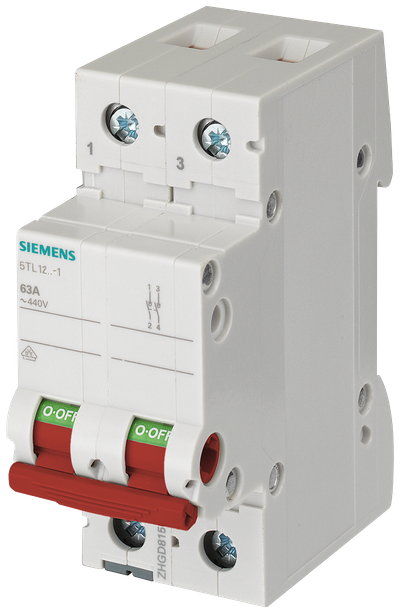

Siemens Sentron Load-break switch, 100 A, 2-Pole, 440 V AC, 10 kA Icw, Red
5TL1291-1
Siemens

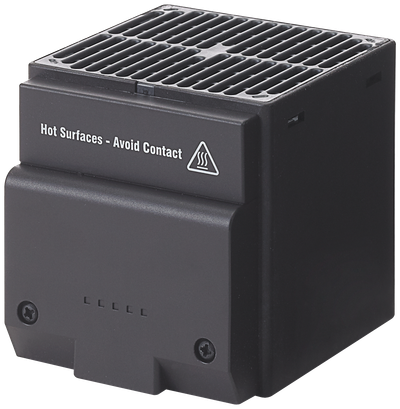

Siemens heating element 250W 230V with fan for DIN rail mounting
8MR2150-5A
Siemens

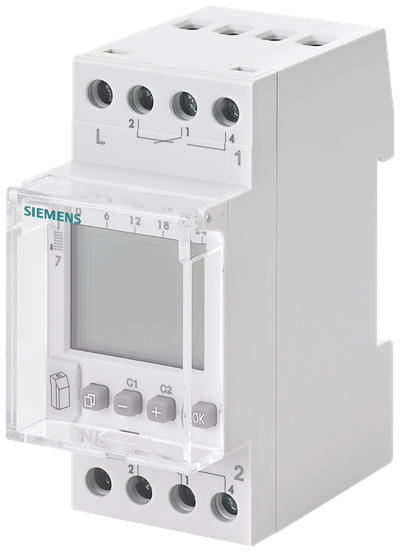

Siemens Weekly timer 2-Channel Astro, 2TE 230V/16A Profi automatic Summer/Winter Time, Data Is Stored on Eeprom
7LF45320
Siemens

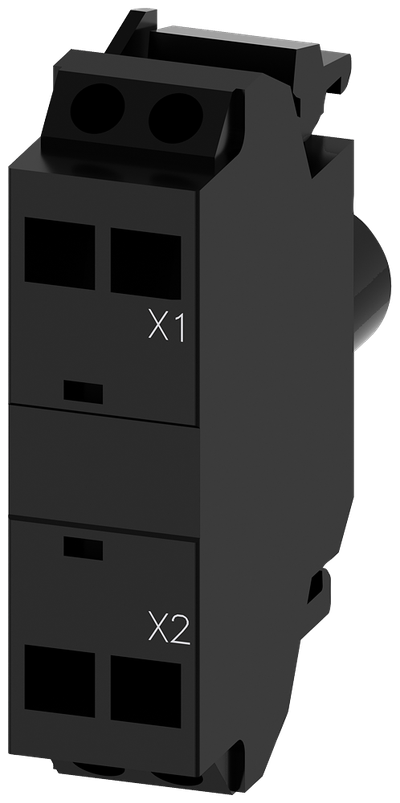

Siemens SIRIUS ACT LED module with integrated LED 230 V AC, green, spring-type terminal, for front plate mounting
3SU1401-1BF40-3AA0
Siemens

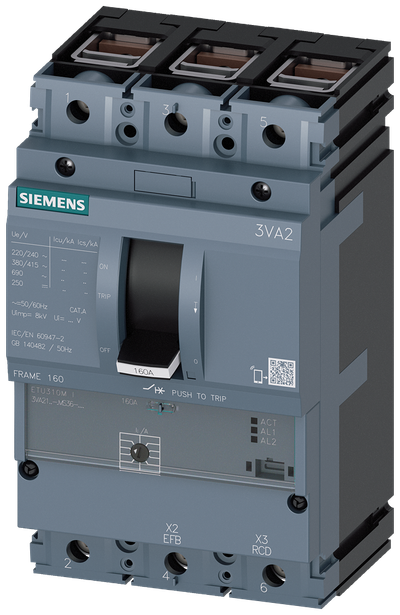

Siemens 3VA21, ETU310M, 3P, 100A, frame clamps for Cu,70KA, II=300-1500A,short-circuit protection/starter protection
3VA2110-7MS36-0AA0
Technical guides
- Motor Protection Circuit Breaker Cross-Reference — Schneider TeSys GV2 / GV3, Siemens SIRIUS 3RV2, Eaton PKZM0 / PKZM4, ABB MS116 / MS132 / MS165 by Setting Range
- Siemens SIRIUS 3RV / 3RT Motor Starter Coordination (IEC 60947-4-1)
- Siemens Low-Voltage Code Decoder — 3RT, 3RV, 3RU, 3VA, 5SL and 3SU Explained
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RV2031-4RA10?
- 3RV2031-4RA10 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RV2031-4RA10.
- What is the HS code for 3RV2031-4RA10?
- The customs tariff (HS) code for 3RV2031-4RA10 is 8536.90.
- Who manufactures 3RV2031-4RA10?
- 3RV2031-4RA10 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RV2031-4RA10?
- Yes — the 3RV2031-4RA10 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RV2031-4RA10?
- The minimum order quantity is 1.
- Is 3RV2031-4RA10 available?
- Yes — 3RV2031-4RA10 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
