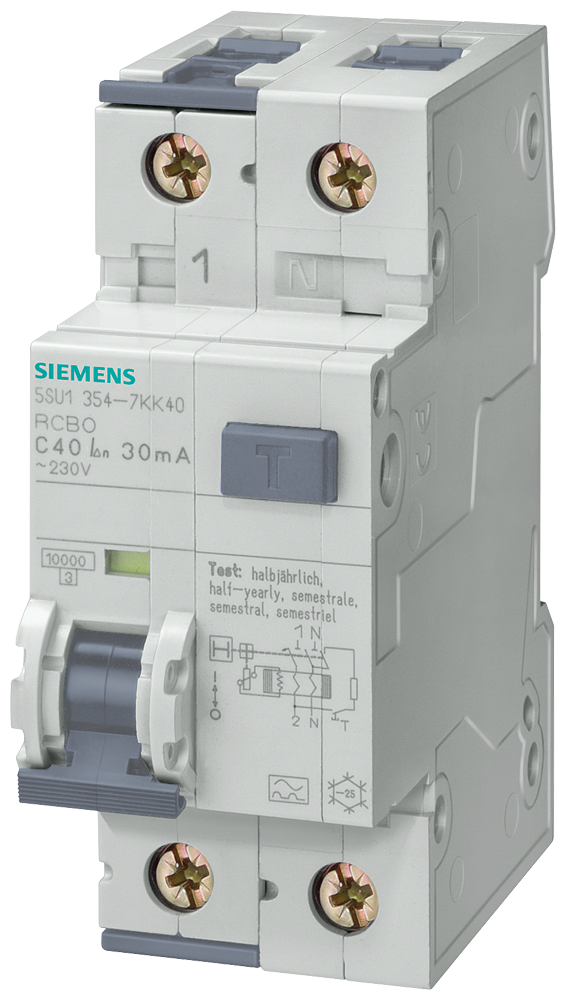

Siemens Earth-fault RCD 5SU1354-7LB25
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SU1354-7LB25 Earth-fault RCD.1+N, 25C,30mA, G+K. G=korttidforsinker. K= resistant.
Technical Specifications
- Manufacturer part number (MPN)
- 5SU1354-7LB25
- EAN / GTIN
- 4001869422763
- Sales unit
- pcs
- Power loss
- 5.1 W
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 264 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 25 A
- Rated fault current
- 0.03 A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Disconnection characteristic
- Short-time delayed
- Surge current capacity
- 3 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- C
- Overvoltage category
- 3
- Pollution degree
- 2
- Width in number of modular spacings
- 2
- Built-in depth
- 70 mm
- Degree of protection (IP)
- IP20
- Flush-mounted installation
- Yes
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4001869422763
- SAP 1200358497
- Code 82369728
Product Documentation
