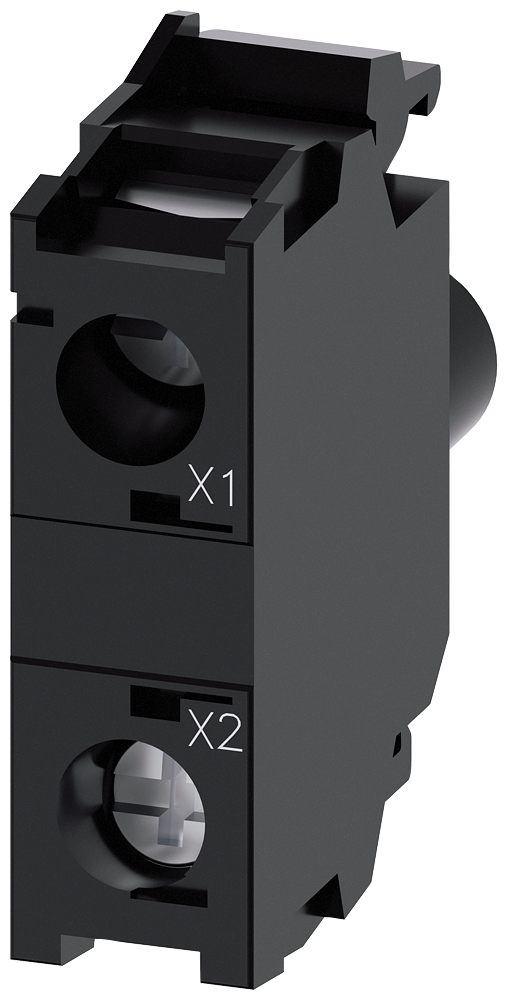

Siemens SIRIUS ACT LED module with integrated LED 230 V AC, green, screw terminal, for front plate mounting
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1401-1BF40-1AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT, green, 230 V AC LED module, with screw terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1401-1BF40-1AA0
- EAN / GTIN
- 4011209943438
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- LED module
- Product type designation
- 3SU1
- Product component — diode
- Yes
- Product component — lamp transformer
- No
- Product component — light source
- Yes
- Product component — series resistor
- No
- Insulation voltage rated value
- 320 V
- Degree of pollution
- 3
- Type of voltage of the operating voltage
- AC
- Type of voltage of the operating voltage — for actuation
- AC
- Surge voltage resistance rated value
- 4 kV
- Consumed current maximum
- 20 mA
- Protection class IP — of the enclosure
- IP40
- Protection class IP — of the terminal
- IP20
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Operating period typical
- 100 000 h
- Reference code according to IEC 81346-2
- P
- At AC — at 50 Hz rated value
- 230 V
- At AC — at 60 Hz rated value
- 230 V
- Relative positive tolerance of the operating voltage
- 20 %
- Relative negative tolerance of the operating voltage
- 20 %
- Inrush current maximum
- 3 A
- Type of electrical connection
- screw terminal
- Type of connectable conductor cross-sections — solid with core end processing
- 2x (0.5 ... 0.75 mm²)
- Type of connectable conductor cross-sections — solid without core end processing
- 2x (1.0 ... 1.5 mm²)
- Type of connectable conductor cross-sections — finely stranded with core end processing
- 2x (0.5 ... 1.5 mm²)
- Type of connectable conductor cross-sections — finely stranded without core end processing
- 2x (1,0 ... 1,5 mm²)
- Type of connectable conductor cross-sections — for AWG cables
- 2x (18 ... 14)
- Connectable conductor cross-section finely stranded with core end processing
- 0.5 ... 1.5 mm²
- Tightening torque with screw-type terminals
- 0.8 ... 0.9 N·m
- Type of light source
- LED
- Color of the light source
- green
- Light intensity
- 900 ... 1 400 mcd
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Fastening method — of modules and accessories
- Front plate mounting
- Installation/ mounting/ dimensions — height
- 33.2 mm
- Installation/ mounting/ dimensions — width
- 9.8 mm
- Installation/ mounting/ dimensions — depth
- 29.4 mm
- Lamp holder
- None
- Colour light source
- Green
- Lamp type
- LED
- Connection type auxiliary circuit
- Screw connection
- Voltage type for actuating
- AC
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 4011209943438
- SAP 1000688759
- Code 885049
