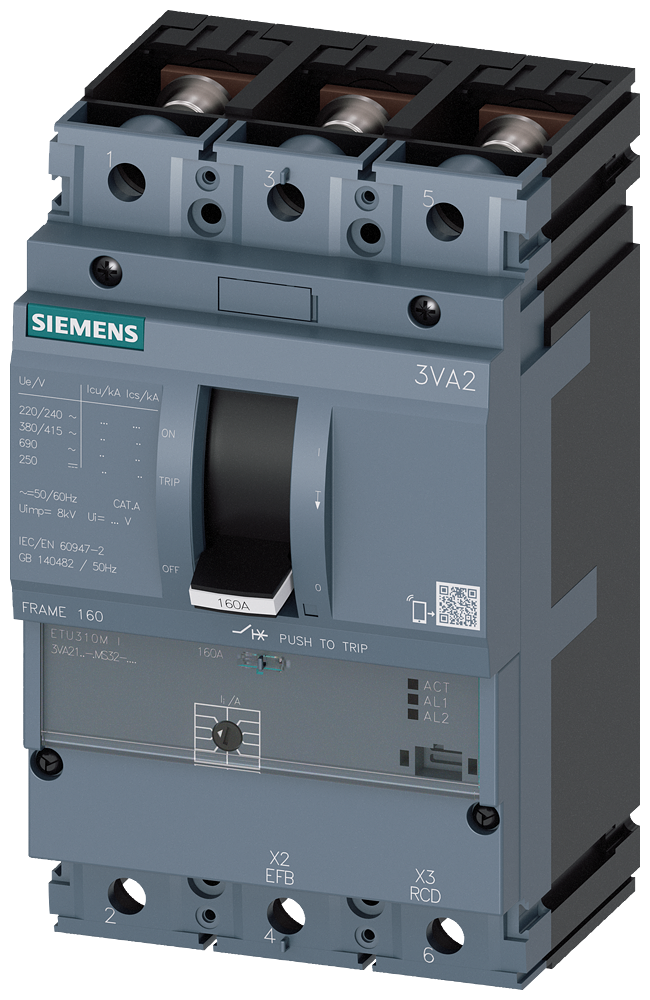

Siemens 3VA21, ETU310M, 3P, 100A, Bolt Connection, 70KA, II=300-1500A, short-circuit protection/starter protection
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA21107MS320AA0 3VA21, ETU310M, 3P, 100A, bolt connection,70kA, II=300-1500A, short-circuit protection/starter protection.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA21107MS320AA0
- EAN / GTIN
- 4042948831229
- Sales unit
- pcs
- Rated current
- 100 A
- Number of poles
- 3P
- Breaking capacity
- 70 kA
- Rated permanent current Iu
- 100 A
- With integrated under voltage release
- No
- Power loss
- 10 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 110 kA
- Device construction
- Built-in device fixed built-in technique
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4042948831229
- SAP 1200015936
- Code 81399212
Product Documentation
