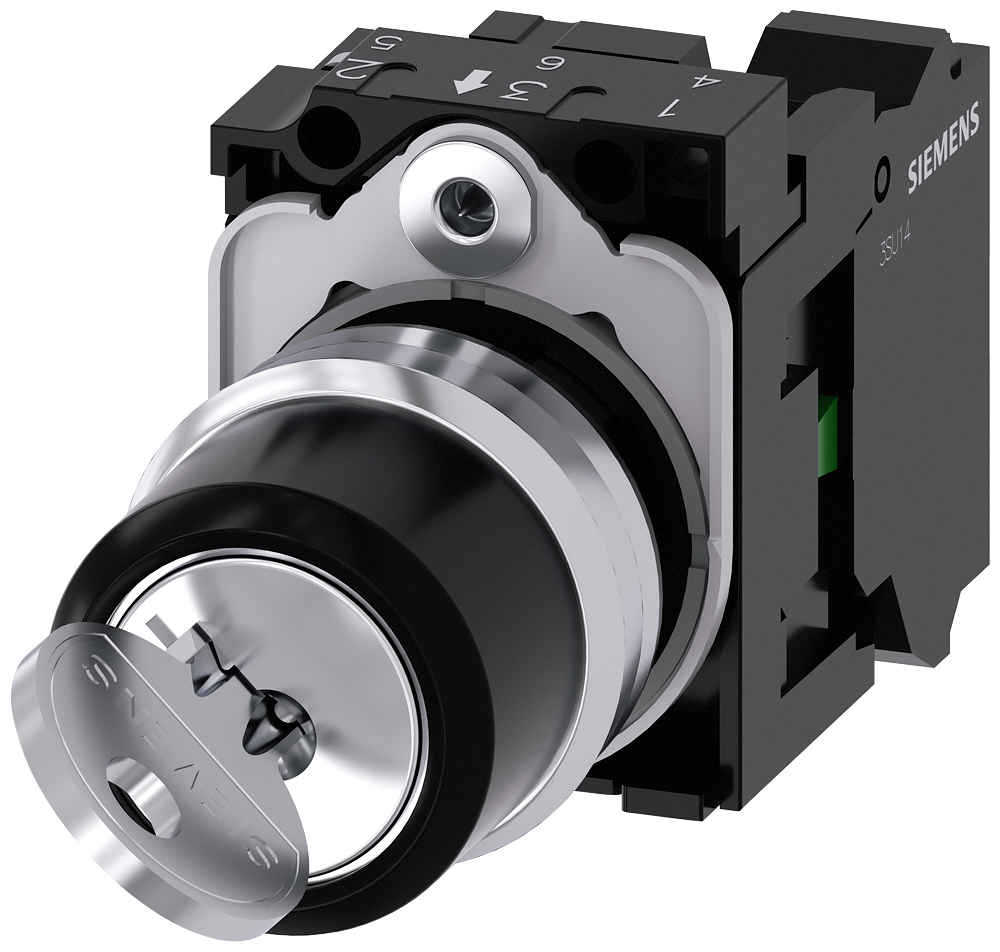

Siemens SIRIUS ACT RONIS key-operated switch, 22 mm, round, metal, shiny, lock number SB30, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30H/13:30H, key removal O+I, with holder, 1 NO, spring-type terminal, possible special locks: SB31, 421, 455

Siemens 3SU1150-4BF11-3BA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT compact key-operated switch actuator, RONIS.

Manufacturer part number (MPN)

3SU1150-4BF11-3BA0

EAN / GTIN

4011209956605

Sales unit

pcs

Product brand name

SIRIUS ACT

Product designation

Key-operated switches

Design of the product

Complete unit

Product type designation

3SU1

Product line

Metal, shiny, 22 mm

Shape of the enclosure front

round

Number of command points

1

Principle of operation of the actuating element

latching, 90° (10:30 h/13:30 h)

Color of the actuating element

silver

Material of the actuating element

metal

Shape of the actuating element

Key

Outer diameter of the actuating element

29.5 mm

Number of contact modules

1

Number of switching positions

2

Switch position for key distraction

O+I

Actuating angle — clockwise

90°

Lock make

RONIS

Key number

SB30

Design of the front ring

Standard

Material of the front ring

Metal, high gloss

Insulation voltage rated value

500 V

Degree of pollution

3

Type of voltage of the operating voltage

AC/DC

Surge voltage resistance rated value

6 kV

Protection class IP

IP66, IP67, IP69(IP69K)

Protection class IP of the terminal

IP20

Degree of protection NEMA rating

1, 2, 3, 3R, 4, 4X, 12, 13

Shock resistance — according to IEC 60068-2-27

sinusoidal half-wave 15 g / 11 ms

Vibration resistance — according to IEC 60068-2-6

10 ... 500 Hz: 5 g

Operating frequency maximum

1 800 1/h

Mechanical service life (operating cycles) typical

300 000

Electrical endurance (operating cycles) typical

10 000 000

Thermal current

10 A

Continuous current of the C characteristic MCB

10 A; for a short-circuit current smaller than 400 A

Continuous current of the quick DIAZED fuse link

10 A

Continuous current of the DIAZED fuse link gG

10 A

General technical data — Net Weight

108 g

Operating voltage — rated value

5 ... 500 V

At AC — at 50 Hz rated value

5 ... 500 V

At AC — at 60 Hz rated value

5 ... 500 V

At AC — at DC rated value

5 ... 500 V

Contact reliability

One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Design of the contact of auxiliary contacts

Silver alloy

Number of NC contacts for auxiliary contacts

0

Number of NO contacts for auxiliary contacts

1

Type of electrical connection — of modules and accessories

Spring-type terminal

Type of connectable conductor cross-sections — solid without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — finely stranded with core end processing

2x (0.25 ... 0.75 mm²)

Type of connectable conductor cross-sections — finely stranded without core end processing

2x (0.25 ... 1.5 mm²)

Type of connectable conductor cross-sections — for AWG cables

2x (24 ... 16)

Tightening torque of the screws in the bracket

1 ... 1.2 N·m

Ambient temperature — during operation

-25 ... +70 °C

Ambient temperature — during storage

-40 ... +80 °C

Installation/ mounting/ dimensions — height

40 mm

Installation/ mounting/ dimensions — width

30 mm

Mounting diameter

22.3 mm

Positive tolerance of installation diameter

0.4 mm

Mounting height

49.4 mm

Installation width

29.5 mm

Installation depth

49.7 mm

Hole diameter

22.3 mm

Colour button

Silver

Number of switch positions

2

Width opening

29.5 mm

Height opening

49.4 mm

Degree of protection (IP)

IP67/IP69K

Number of contacts as normally open contact

1

Country of origin

Germany

HS Code

8536.50
