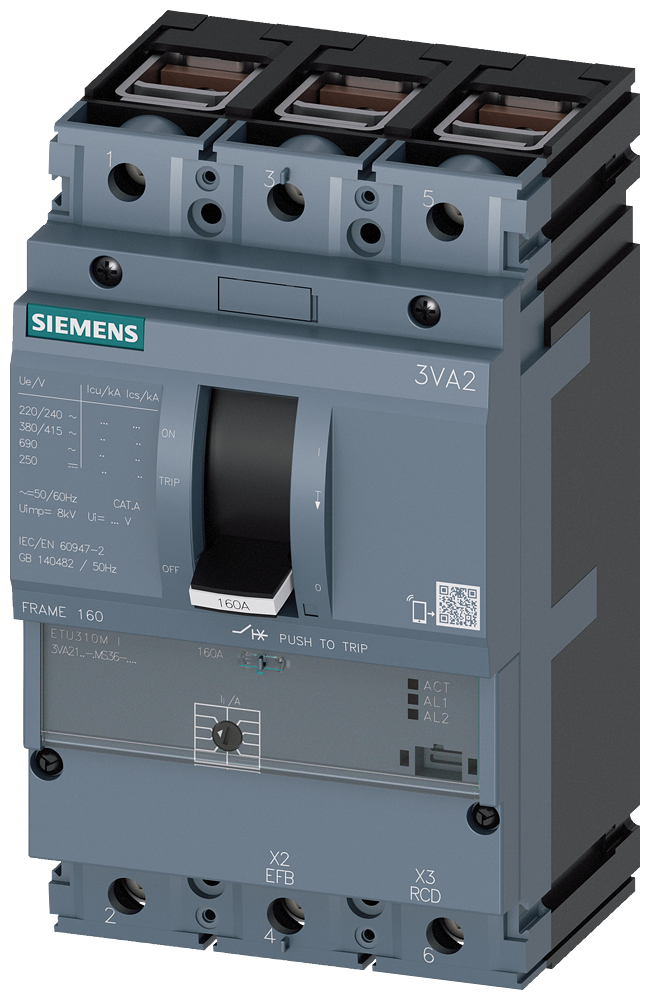

Siemens 3VA21, ETU310M, 3P, 100A, frame clamps for Cu,70KA, II=300-1500A,short-circuit protection/starter protection
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA2110-7MS36-0AA0 3VA21, ETU310M, 3P, 100A, frame clamps for Cu,70kA, II=300-1500A,short-circuit protection/starter protection.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2110-7MS36-0AA0
- EAN / GTIN
- 4042948831212
- Sales unit
- pcs
- Rated current
- 100 A
- Number of poles
- 3P
- Breaking capacity
- 70 kA
- Rated permanent current Iu
- 100 A
- With integrated under voltage release
- No
- Rated voltage
- 690 V
- Power loss
- 10 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Frame clamp
- Type of control element
- Rocker lever
- With switched-off indicator
- Yes
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 110 kA
- Adjustment range undelayed short-circuit release
- 300–1500 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- Yes
- Device construction
- Built-in device fixed built-in technique
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4042948831212
- SAP 1200358550
- Code 82369678
Product Documentation
More from Siemens
Siemens

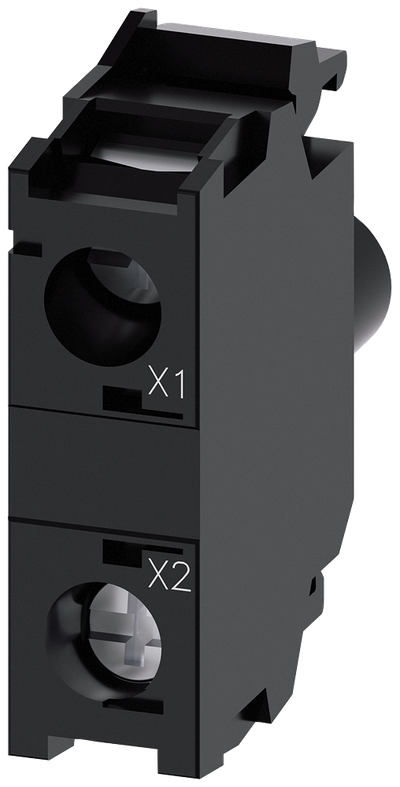

Siemens SIRIUS ACT LED module with integrated LED 230 V AC, green, screw terminal, for front plate mounting
3SU1401-1BF40-1AA0
Siemens

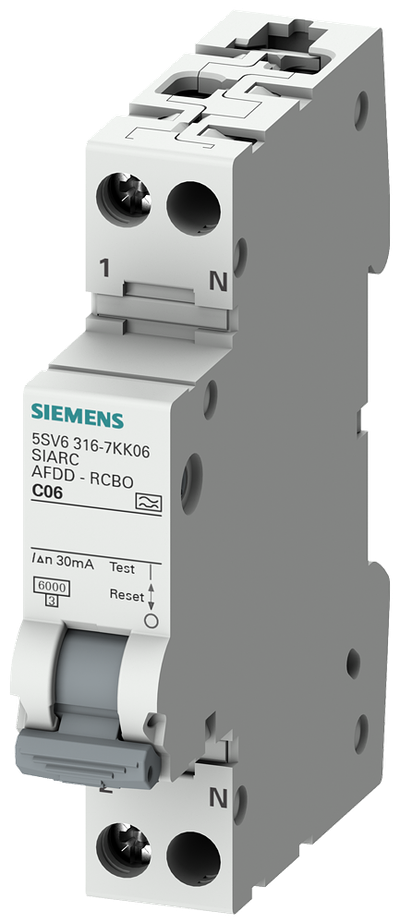

Siemens Residual current circuit breaker with overcurrent+afd, TN, 6KA, 18mm, C25
5SV6316-7KK25
Siemens

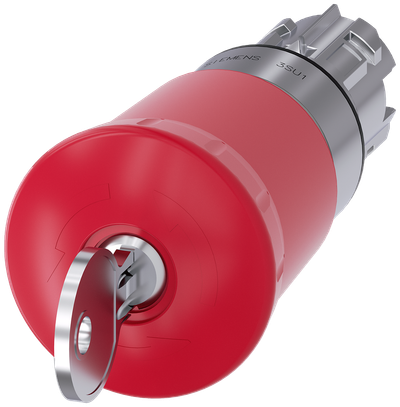

Siemens SIRIUS ACT EMERGENCY-OFF mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, with Siemens lock, C, lock number S-10-CG, positive latching, according to DIN EN ISO 13850, key-operated release
3SU1050-1HR20-0AA0
Siemens

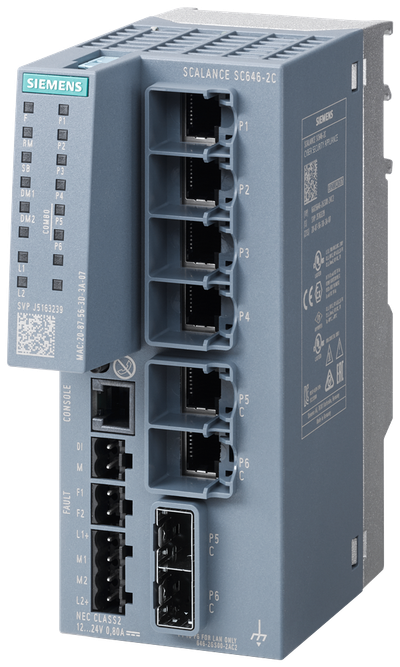

Siemens SCALANCE SC646-2C;4X10/100/1000MBPS RJ45 porter+2X10/100/1000 Mbps RJ45 porter OR100/1000 MbpsSFP
6GK5646-2GS00-2AC2
Siemens

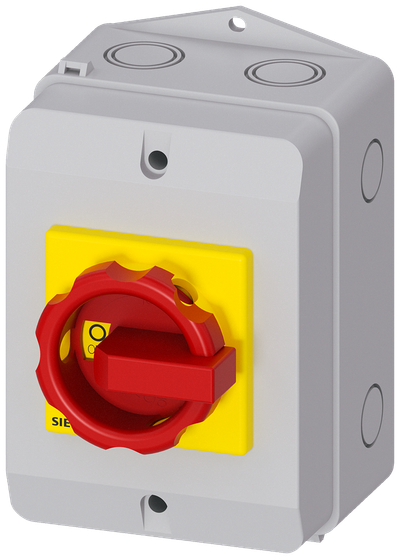

Siemens 3LD, EMERGENCY-STOP switch, 3-P, Iu:25 A, AC-23/400V: 9,5 kW, plastic IP65, rotary switch, r/g
3LD2164-0TB53
Siemens

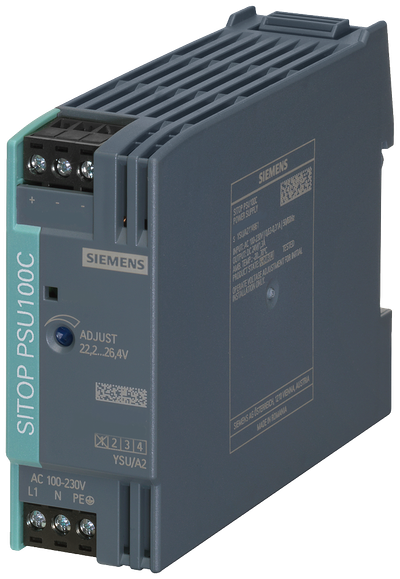

Siemens SITOP DC power supply 6EP1321-5BA00
Siemens
Siemens 5SM2322-6 RC Unit for 5SY Miniature Circuit Breaker — 2-Pole, Type A, in 40 A, 30 mA, 230 V AC
Siemens

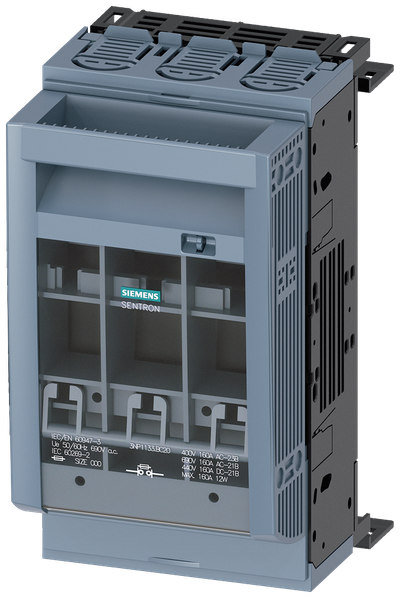

Siemens Fuse switch-disconnector 3NP1133-1BC20
