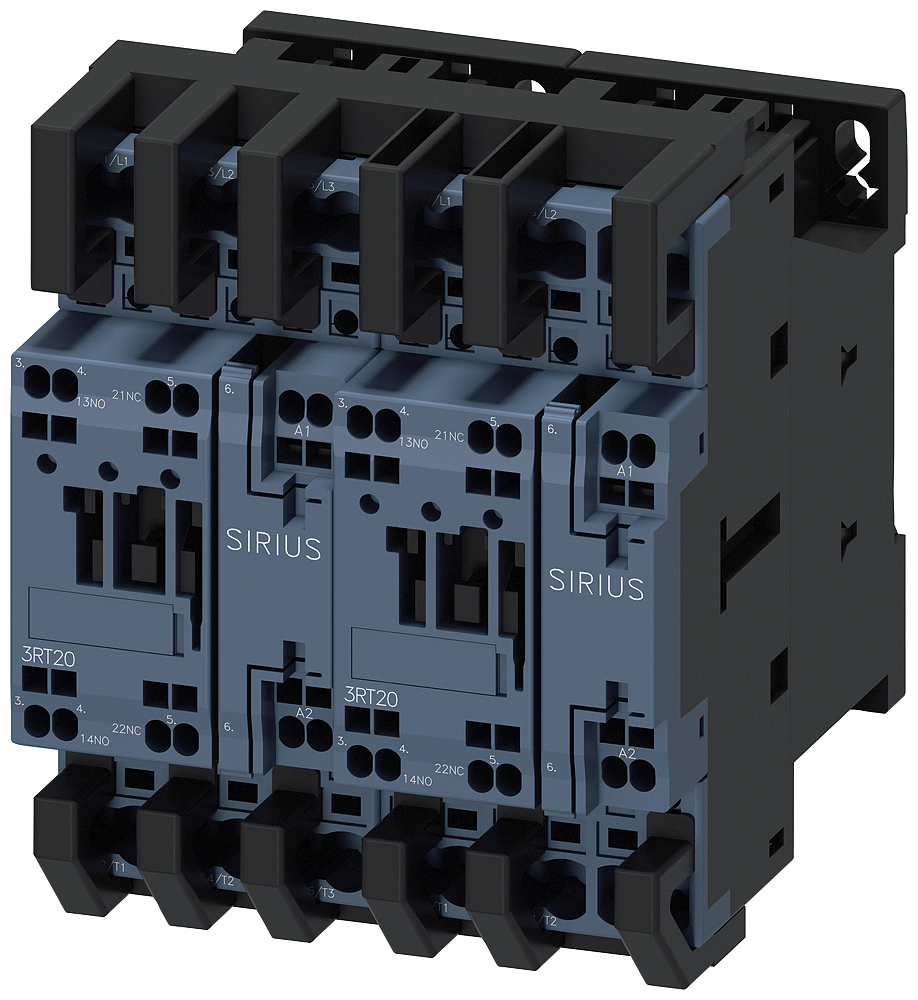

Siemens SIRIUS Reversing contactor assembly, AC-3E/AC-3, 17 A, 7.5 kW / 400 V, 3-Pole, 24 V AC, 50/60 Hz, spring-loaded terminal, electrical and mechanical interlock, auxiliary contacts: 2 x 1

Siemens 3RA2325-8XB30-2AC2 Dreieretningsvender7.5KW 24V AC50/60 S0 Spring terminals 2NO.

Manufacturer part number (MPN)

3RA2325-8XB30-2AC2

EAN / GTIN

4011209836204

Sales unit

pcs

Product brand name

SIRIUS

Product designation

Reversing contactor assembly

Product type designation

3RA23

Manufacturer's article number — 1 of the supplied contactor

3RT2025-2AC20

Manufacturer's article number — 2 of the supplied contactor

3RT2025-2AC20

Manufacturer's article number — of the supplied RH assembly kit

3RA2923-2AA2

Size of contactor

S0

Product extension auxiliary switch

Yes

Shock resistance at rectangular impulse — at AC

7,5 g / 5 ms, 4,7 g / 10 ms

Shock resistance at rectangular impulse — at DC

10g / 5 ms, 7,5g / 10 ms

Shock resistance with its pulse — at AC

11,8 g / 5 ms, 7,4 g / 10 ms

Shock resistance with its pulse — at DC

15 g / 5 ms, 10 g / 10 ms

Mechanical service life (operating cycles) — of contactor typical

10 000 000

Mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical

10 000 000

Reference code according to IEC 81346-2

Q

General technical data — Net Weight

1.039 kg

Installation altitude at height above sea level maximum

2 000 m

Ambient temperature — during operation

-25 ... +60 °C

Ambient temperature — during storage

-55 ... +80 °C

Number of poles for main current circuit

3

Number of NO contacts for main contacts

3

Number of NC contacts for main contacts

0

Operating voltage — at AC-3 rated value maximum

690 V

Operating voltage — at AC-3e rated value maximum

690 V

At AC-3 — at 400 V rated value

17 A

At AC-3 — at 500 V rated value

17 A

At AC-3 — at 690 V rated value

13 A

At AC-3e — at 400 V rated value

17 A

At AC-3e — at 500 V rated value

17 A

At AC-3e — at 690 V rated value

13 A

At AC-3e — at AC-4 at 400 V rated value

7.5 kW

Operating frequency — at AC-3 maximum

1 000 1/h

Operating frequency — at AC-3e maximum

1 000 1/h

Type of voltage of the control supply voltage

AC

Control supply voltage 1 at AC — at 50 Hz rated value

24 V

Control supply voltage 1 at AC — at 60 Hz rated value

24 V

Operating range factor control supply voltage rated value of magnet coil at AC — at 50 Hz

0.8 ... 1.1

Operating range factor control supply voltage rated value of magnet coil at AC — at 60 Hz

0.8 ... 1.1

Apparent pick-up power of magnet coil at AC — at 50 Hz

65 VA

Inductive power factor with closing power of the coil — at 50 Hz

0.82

Apparent holding power of magnet coil at AC — at 50 Hz

8.5 VA

Inductive power factor with the holding power of the coil — at 50 Hz

0.25

Number of NO contacts for auxiliary contacts — per direction of rotation

1

Number of NO contacts for auxiliary contacts — instantaneous contact

2

Contact reliability of auxiliary contacts

< 1 error per 100 million operating cycles

Full-load current (FLA) for 3-phase AC motor — at 480 V rated value

14 A

Full-load current (FLA) for 3-phase AC motor — at 600 V rated value

17 A

Yielded mechanical performance [hp] for 3-phase AC motor — at 220/230 V rated value

5 hp

Yielded mechanical performance [hp] for 3-phase AC motor — at 460/480 V rated value

10 hp

Yielded mechanical performance [hp] for 3-phase AC motor — at 575/600 V rated value

15 hp

Contact rating of auxiliary contacts according to UL

A600 / Q600

For short-circuit protection of the main circuit — with type of coordination 1 required

gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 63 A

For short-circuit protection of the main circuit — with type of coordination 2 required

gG NH 3NA, DIAZED 5SB, NEOZED 5SE: 25 A

For short-circuit protection of the main circuit — for short-circuit protection of the auxiliary switch required

fuse gG: 10 A

Mounting position

+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

Fastening method

screw and snap-on mounting onto 35 mm DIN rail

Installation/ mounting/ dimensions — height

114 mm

Installation/ mounting/ dimensions — width

90 mm

Installation/ mounting/ dimensions — depth

97 mm

With side-by-side mounting — forwards

6 mm

With side-by-side mounting — backwards

0 mm

With side-by-side mounting — upwards

6 mm

With side-by-side mounting — downwards

6 mm

With side-by-side mounting — at the side

6 mm

For grounded parts — forwards

6 mm

For grounded parts — backwards

0 mm

For grounded parts — upwards

6 mm

For grounded parts — at the side

6 mm

For grounded parts — downwards

6 mm

For live parts — forwards

6 mm

For live parts — backwards

0 mm

For live parts — upwards

6 mm

For live parts — downwards

6 mm

For live parts — at the side

6 mm

Type of electrical connection — for main current circuit

spring-loaded terminals

Type of electrical connection — for auxiliary and control circuit

spring-loaded terminals

Type of electrical connection — at contactor for auxiliary contacts

Spring-type terminals

Type of electrical connection — of magnet coil

Spring-loaded terminal

Type of connectable conductor cross-sections for main contacts — solid

2x (1 ... 10 mm²)

Type of connectable conductor cross-sections for main contacts — solid or stranded

2x (1 ... 10 mm²)

Type of connectable conductor cross-sections for main contacts — finely stranded with core end processing

2x (1 ... 6 mm²)

Type of connectable conductor cross-sections for main contacts — finely stranded without core end processing

2x (1 ... 6 mm²)

For auxiliary contacts — solid or stranded

2x (0.5 ... 2.5 mm²)

For auxiliary contacts — finely stranded with core end processing

2x (0.5 ... 1.5 mm²)

For auxiliary contacts — finely stranded without core end processing

2x (0.5 ... 1.5 mm²)

For auxiliary contacts — for AWG cables for auxiliary contacts

2x (20 ... 14)

Product function suitable for safety function

Yes

Protection class IP on the front according to IEC 60529

IP20

Touch protection on the front according to IEC 60529

finger-safe, for vertical contact from the front

Product function bus communication

Yes

Protocol is supported AS-Interface protocol

No

Product function control circuit interface with IO link

No

Width

90 mm

Function

Reversing contactor

Height

114 mm

Depth

97 mm

Rated operation power at AC-3, 400 V

7.5 kW

Number of normally open contacts as main contact

3

Rated operation current Ie at AC-3, 400 V

17 A

Degree of protection (IP)

IP20

Type of electrical connection of main circuit

Spring clamp connection

Voltage type for actuating

AC

Rated operation power NEMA

10 kW

Country of origin

Germany

HS Code

8536.49
