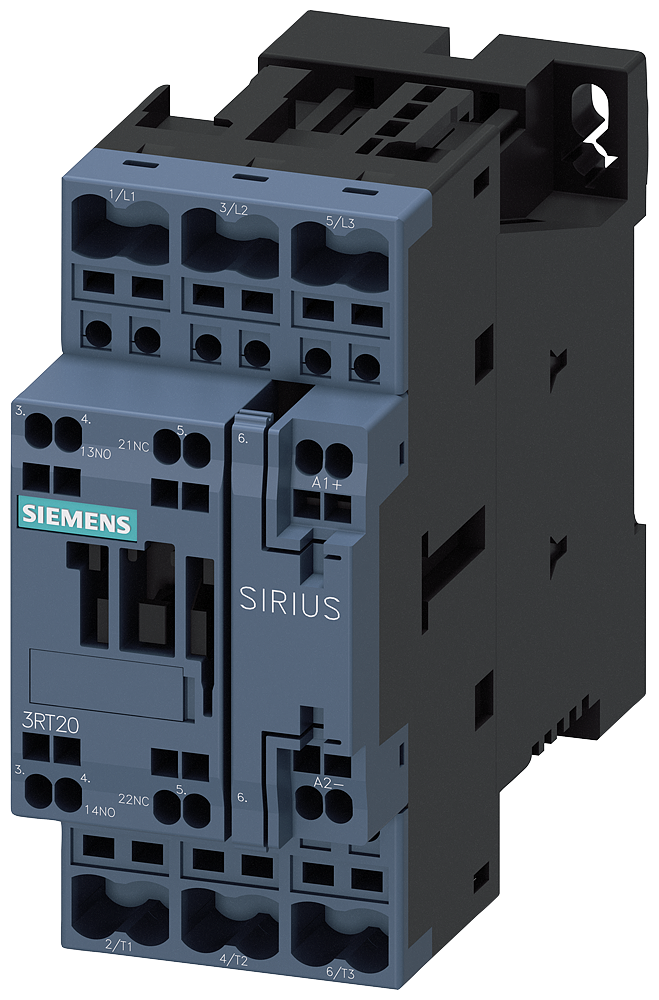

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2025-2NB30
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2025-2NB30 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 7.5KW,1NO 1NC, UC 21-28V S0 Spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2025-2NB30
- EAN / GTIN
- 4011209834286
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 102 mm
- Depth
- 107 mm
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 17 A
- Rated operation current Ie at AC-1, 400 V
- 40 A
- Type of electrical connection of main circuit
- Spring clamp connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 15.5 A
- Rated operation power at AC-4, 400 V
- 7.5 kW
- Rated operation power NEMA
- 10 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209834286
- SAP 1000270916
- Code 81165223
Product Documentation
More from Siemens
Siemens
Siemens Micromaster 4 braking resistor 400V 100W
6SE6400-4BD11-0AA0
Siemens
Siemens Section division main busbar: top, H: 1600 mm D: 800 mm
8PQ3000-1BA34
Siemens
Siemens MCCB_3VA24_4P_55KA_ETU350,LSI,IN=400A,IR=160A-400A,ISD=1,5-10XIR,II=12XIN,,B
3VA2440-5HN42-0AA0
Siemens
Siemens Alpha 400/630 Din mounting Set for Terminal blockr Vertical, H=600 B=750
8GK4402-4KK32
Siemens
Siemens S3, Motor Protection Circuit Breaker FOR Motorprotection 3RV2742-5AD10
Siemens
Siemens Residual current circuit breaker, 4-Pole, type A, In: 80 A, 500 mA, Un AC: 400 V
5SV3747-6
Siemens
Siemens SENTRON 3VA9254-0JA12 — Copper (Cu) box terminal, 50–185 mm², 3VA12
Siemens
Siemens Contact Block Side S00 2NC Spring terminals
3RH2911-2DA02
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RT2025-2NB30?
- 3RT2025-2NB30 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RT2025-2NB30.
- What is the HS code for 3RT2025-2NB30?
- The customs tariff (HS) code for 3RT2025-2NB30 is 8536.90.
- Who manufactures 3RT2025-2NB30?
- 3RT2025-2NB30 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RT2025-2NB30?
- Yes — the 3RT2025-2NB30 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RT2025-2NB30?
- The minimum order quantity is 1.
- Is 3RT2025-2NB30 available?
- Yes — 3RT2025-2NB30 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
