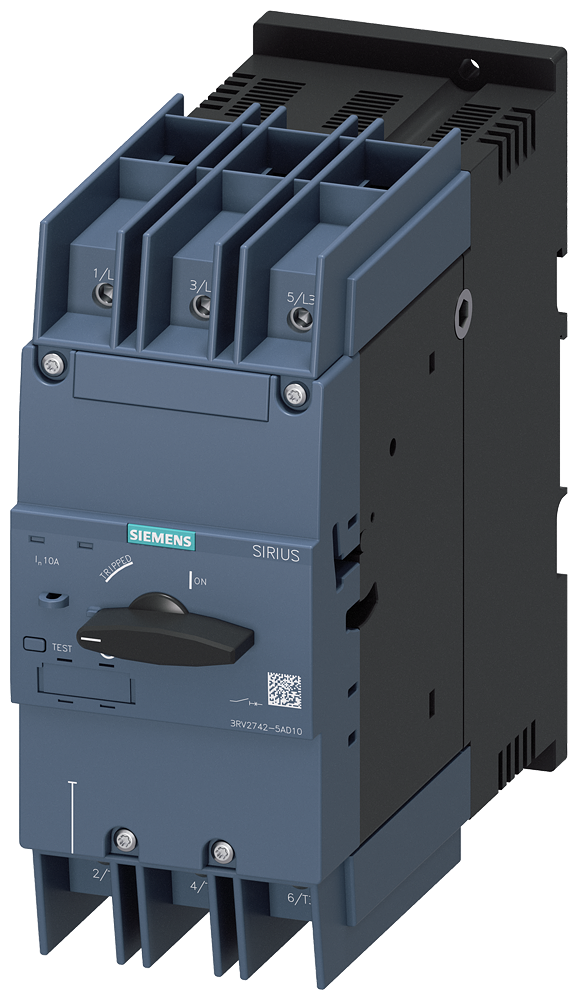

Siemens S3, Motor Protection Circuit Breaker FOR Motorprotection 3RV2742-5AD10
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RV2742-5AD10 S3, MOTOR PROTECTION CIRCUIT BREAKER FOR motor protection.
Technical Specifications
- Manufacturer part number (MPN)
- 3RV2742-5AD10 EAN / GTIN: 4047621014449 HS code: 8536.90 Sales unit: pcs Width: 70 mm Height: 170 mm Depth: 176 mm With integrated auxiliary switch: No Rated permanent current Iu: 10 A With integrated under voltage release: No Number of poles: 3 Rated operating voltage: 600 V Power loss: 10 W Degree of protection (IP): IP20 With thermal overload protection: Yes Type of electrical connection of main circuit: Screw connection Switch off technique: Magnetic Rated short-circuit breaking capacity Icu at 400 V, AC: 100 kA Adjustment range undelayed short-circuit release: 150 A Phase failure sensitive: No Device construction: Built-in device fixed built-in technique Country of origin: Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4047621014449
- SAP 1200014092
- Code 81383679
Product Documentation
More from Siemens
Siemens
Siemens Residual current circuit breaker, 4-Pole, type A, In: 80 A, 500 mA, Un AC: 400 V
5SV3747-6
Siemens
Siemens SENTRON 3VA9254-0JA12 — Copper (Cu) box terminal, 50–185 mm², 3VA12
Siemens
Siemens Contact Block Side S00 2NC Spring terminals
3RH2911-2DA02
Siemens
Siemens S12 Vacuum contactor, 200KW/400 3RT1275-6NP36
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 1100 mm, W: 800 mm, D: 210 mm, RAL 9016
8GK1132-5KA32
Siemens
Siemens SIRIUS 3RB3 Electronic Overload Relay 1...4 A, Size S00, Class 20E, Main Spring-type, Aux Spring-type
3RB3016-2PE0
Siemens
Siemens MCCB_3VA21_4P_55KA_ETU850,LSI,IN=100A,IR=40A-100A,ISD=0,6-10XIN,II=1,5-12XIN,B
3VA2110-5KP42-0AA0
Siemens
Siemens SIRIUS Twin pushbutton, 22 mm, round, plastic, white: arrow pointing left, white: Arrow pointing right, pushbuttons, flat
3SU1000-3AB66-0AM0
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RV2742-5AD10?
- 3RV2742-5AD10 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RV2742-5AD10.
- What is the HS code for 3RV2742-5AD10?
- The customs tariff (HS) code for 3RV2742-5AD10 is 8536.90.
- Who manufactures 3RV2742-5AD10?
- 3RV2742-5AD10 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3RV2742-5AD10?
- Yes — the 3RV2742-5AD10 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RV2742-5AD10?
- The minimum order quantity is 1.
- Is 3RV2742-5AD10 available?
- Yes — 3RV2742-5AD10 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
