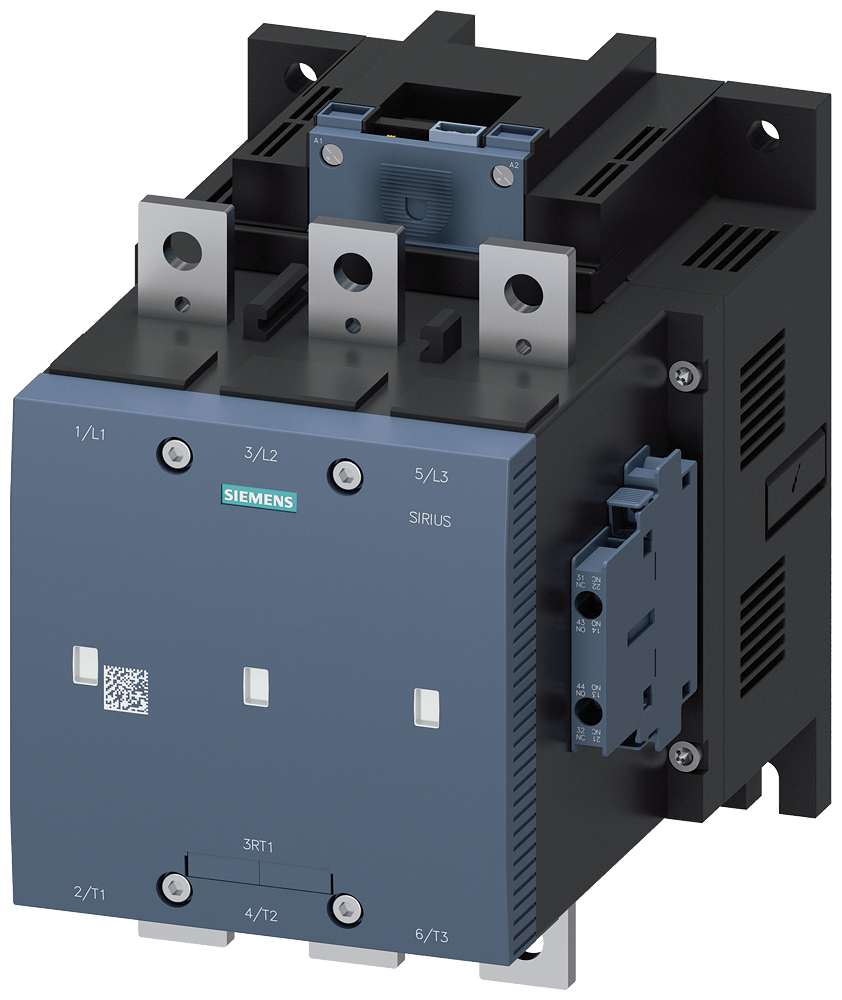

Siemens S12 Vacuum contactor, 200KW/400 3RT1275-6NP36
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT1275-6NP36 S12 Vacuum Contactor, 200KW/400.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT1275-6NP36
- EAN / GTIN
- 4011209509429
- Sales unit
- pcs
- Power
- 200 kW
- Width
- 160 mm
- Height
- 217 mm
- Depth
- 225 mm
- Rated operation power at AC-3, 400 V
- 200 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 2
- Number of auxiliary contacts as normally closed contact
- 2
- Rated operation current Ie at AC-3, 400 V
- 400 A
- Rated operation current Ie at AC-1, 400 V
- 610 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation current Ie at AC-4, 400 V
- 350 A
- Rated operation power at AC-4, 400 V
- 200 kW
- Rated operation power NEMA
- 300 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4011209509429
- SAP 1000526637
- Code 8641721
Product Documentation
More from Siemens
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 1100 mm, W: 800 mm, D: 210 mm, RAL 9016
8GK1132-5KA32
Siemens
Siemens SIRIUS 3RB3 Electronic Overload Relay 1...4 A, Size S00, Class 20E, Main Spring-type, Aux Spring-type
3RB3016-2PE0
Siemens
Siemens MCCB_3VA21_4P_55KA_ETU850,LSI,IN=100A,IR=40A-100A,ISD=0,6-10XIN,II=1,5-12XIN,B
3VA2110-5KP42-0AA0
Siemens
Siemens SIRIUS Twin pushbutton, 22 mm, round, plastic, white: arrow pointing left, white: Arrow pointing right, pushbuttons, flat
3SU1000-3AB66-0AM0
Siemens
Siemens SENTRON 3KD Switch-Disconnector 3KD3642-0PE10-0, 200 A, 4-Pole, Front Operated Left, without Rotary Handle
Siemens

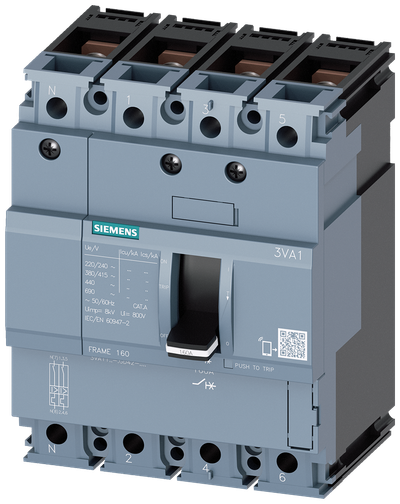

Siemens 3VA11 MCCB 4-Pole, 50 A, 25 kA, TM210 Thermal/Magnetic
3VA1150-3GD42-0AA0
Siemens
Siemens MCCB_3VA25_3P_55KA_ETU860,LI,IN=630A,IR=250A-630A,Ii=10XIN,bolt
3VA2563-5KQ32-0AA0
Siemens

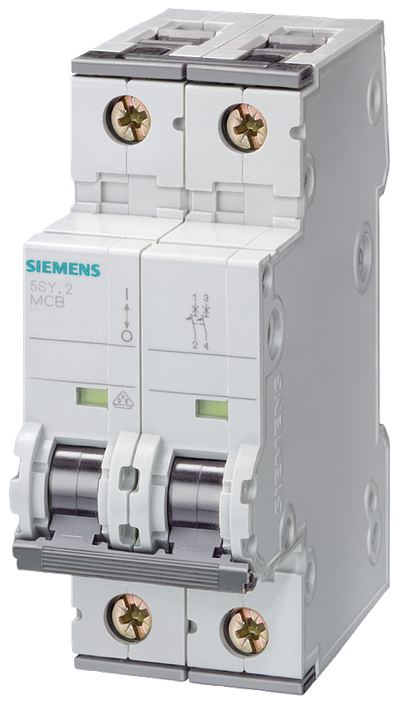

Siemens SENTRON 5SY7215-7 Miniature Circuit Breaker 2-Pole C1.6A 15KA
