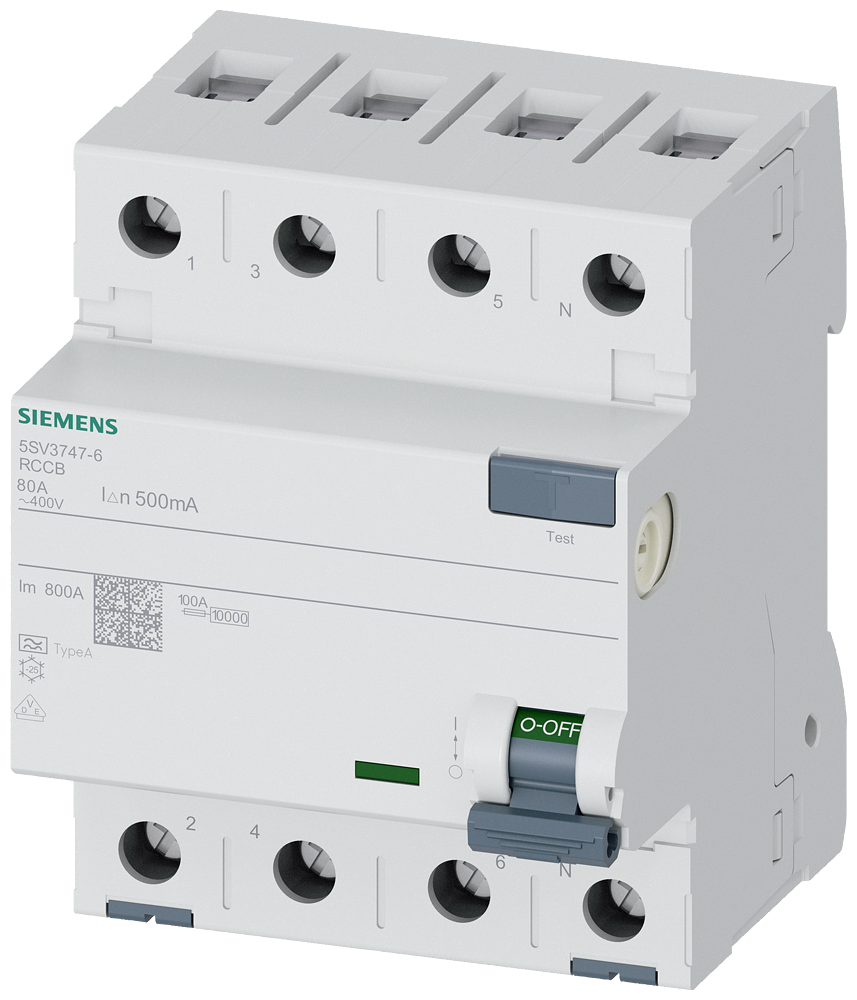

Siemens Residual current circuit breaker, 4-Pole, type A, In: 80 A, 500 mA, Un AC: 400 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 5SV3747-6. Residual current circuit breaker type A, instantaneous, 4/80 500MA, tightening torque 2,5 Nm.
Technical Specifications
- Manufacturer part number (MPN)
- 5SV3747-6
- EAN / GTIN
- 4001869427911
- HS code
- 8536.90
- Sales unit
- pcs
- Mounting method
- DIN rail
- Voltage type
- AC
- Built-in depth
- 70 mm
- Rated current
- 80 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 2000 V
- Number of poles
- 4
- Rated fault current
- 500 A
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10 kA
- Surge current capacity
- 1 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 4.1 W
- Frequency
- 50 Hz
- Degree of protection (IP)
- IP20
- Device width
- 72 mm
- Device height
- 90 mm
- Device depth
- 70 mm
- Rated impulse withstand voltage Uimp
- 6000 kV
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4001869427911
- SAP 1000502974
- Code 8619643
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 3VA9254-0JA12 — Copper (Cu) box terminal, 50–185 mm², 3VA12
Siemens
Siemens Contact Block Side S00 2NC Spring terminals
3RH2911-2DA02
Siemens
Siemens S12 Vacuum contactor, 200KW/400 3RT1275-6NP36
Siemens
Siemens ALPHA 400, wall-mount cabinet, IP43, safety class 2, H: 1100 mm, W: 800 mm, D: 210 mm, RAL 9016
8GK1132-5KA32
Siemens
Siemens SIRIUS 3RB3 Electronic Overload Relay 1...4 A, Size S00, Class 20E, Main Spring-type, Aux Spring-type
3RB3016-2PE0
Siemens
Siemens MCCB_3VA21_4P_55KA_ETU850,LSI,IN=100A,IR=40A-100A,ISD=0,6-10XIN,II=1,5-12XIN,B
3VA2110-5KP42-0AA0
Siemens

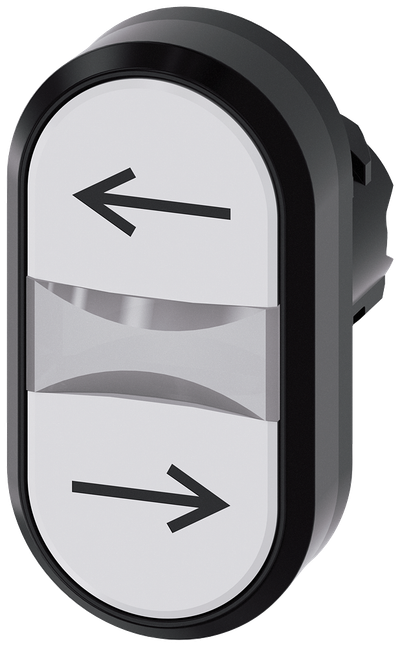

Siemens SIRIUS Twin pushbutton, 22 mm, round, plastic, white: arrow pointing left, white: Arrow pointing right, pushbuttons, flat
3SU1000-3AB66-0AM0
Siemens

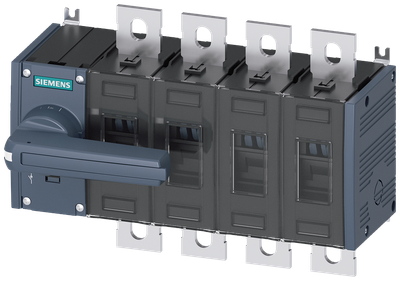

Siemens SENTRON 3KD Switch-Disconnector 3KD3642-0PE10-0, 200 A, 4-Pole, Front Operated Left, without Rotary Handle
