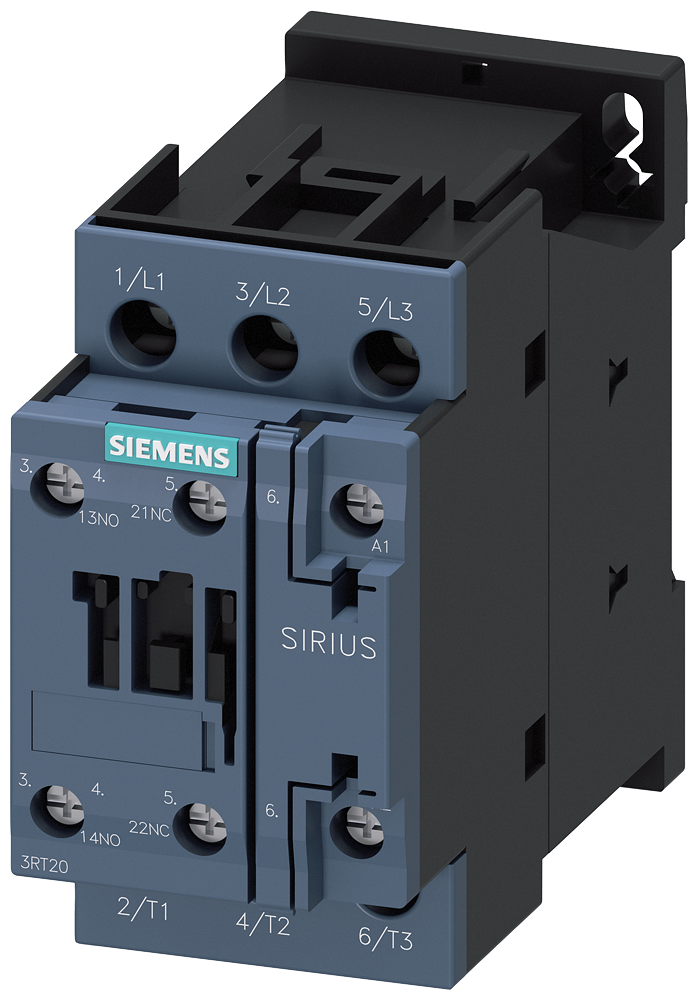

Siemens SIRIUS 3RT20 contactor, frame size S0 3RT2027-1AB00
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RT2027-1AB00 — SIRIUS 3RT20 contactor, frame size S0. AC-3 rated up to 38 A at 400 V, 3-pole. Contactor 32A, 24V AC 1NO+1NC.
Technical Specifications
- Manufacturer part number (MPN)
- 3RT2027-1AB00
- EAN / GTIN
- 4011209833500
- HS code
- 8536.90
- Sales unit
- pcs
- Frame size
- S0
- Width
- 45 mm
- Height
- 85 mm
- Depth
- 97 mm
- Rated operation power at AC-3, 400 V
- 15 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 32 A
- Rated operation current Ie at AC-1, 400 V
- 50 A
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- AC
- Rated operation current Ie at AC-4, 400 V
- 22 A
- Rated operation power at AC-4, 400 V
- 11 kW
- Rated operation power NEMA
- 20 kW
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4011209833500
- SAP 1000097742
- Code 8591496
Product Documentation
More from Siemens
Siemens
Siemens SENTRON 5SY7201-7 Miniature Circuit Breaker 2-Pole C1A 15KA
Siemens
Siemens SENTRON 3VA9487-0GA80 — Shaft rotary operating mechanism, 3VA2
Siemens
Siemens MCCB_3VA25_4P_55KA_ETU350,LSI PROTECTION, IN=1000A, IR=400A-1000A, ISD=1,5-10XIR, II=10XIN, bolt
3VA2510-5HN420-0AA0
Siemens
Siemens Current transformer 200/5A 5VA K0,5
4NC5122-2DE21
Siemens
Siemens Contactor, AC3: 55KW/400V, 1NO+1NC, 20-33VAC/DC, 3-Pole, 3NO 3RT2047-1NB30
Siemens
Siemens SIRIUS Selector switch, illuminable, 22 mm, round, plastic, blue, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30H/13:30H
3SU1002-2BF50-0AA0
Siemens
Siemens SIRIUS 3RM1 Reversing Starter, 1.6-7.0A, 3 kW / 400 V, 110-230V, Spring Terminals
3RM1207-2AA14
Siemens

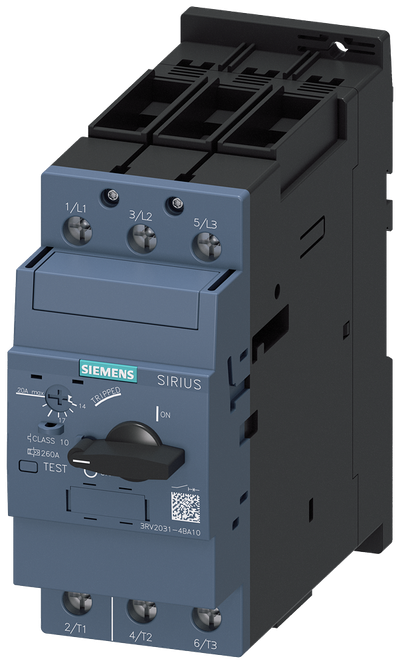

Siemens SIRIUS Motor protection circuit breaker,14 3RV2031-4BA10
