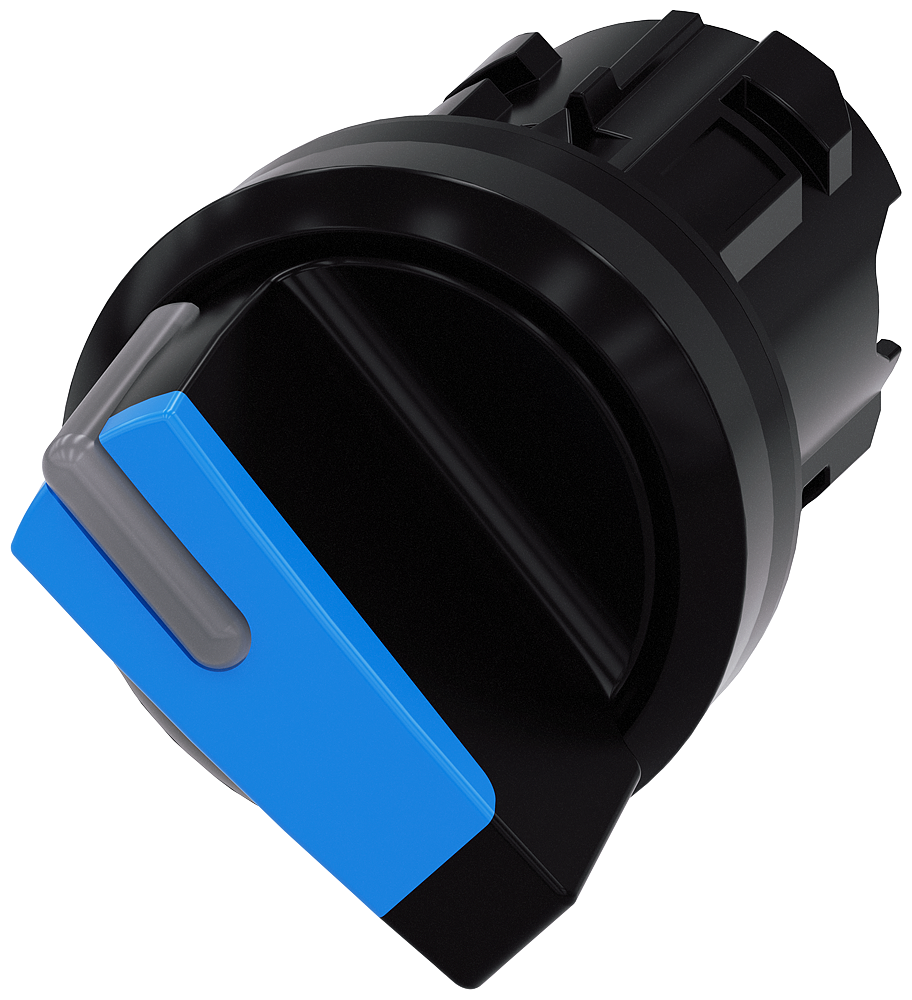

Siemens SIRIUS Selector switch, illuminable, 22 mm, round, plastic, blue, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30H/13:30H
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3SU1002-2BF50-0AA0 — SIRIUS ACT 22 mm command and signalling device. Panel-mount pushbutton, indicator lamp or emergency-stop actuator in the 22 mm cutout family. SIRIUS ACT 22mm black rigid plastic design Selector Switch Head -blue.
Technical Specifications
- Manufacturer part number (MPN)
- 3SU1002-2BF50-0AA0
- EAN / GTIN
- 4011209956186
- Sales unit
- pcs
- Product brand name
- SIRIUS ACT
- Product designation
- Selector switches
- Design of the product
- Actuating/signaling element
- Product type designation
- 3SU1
- Product line
- Plastic, black, 22 mm
- Number of command points
- 1
- Design of the actuating element
- Selector, short
- Principle of operation of the actuating element
- latching, 90° (10:30 h/13:30 h)
- Product extension optional — light source
- Yes
- Product extension optional — contact module
- Yes
- Color of the actuating element
- blue
- Material of the actuating element
- plastic
- Shape of the actuating element
- Handle
- Outer diameter of the actuating element
- 32.3 mm
- Number of switching positions
- 2
- Actuating angle — clockwise
- 90°
- Product component front ring
- Yes
- Design of the front ring
- standard
- Material of the front ring
- plastic
- Color of the front ring
- black
- Protection class IP
- IP66, IP67, IP69(IP69K)
- Degree of protection NEMA rating
- 1, 2, 3, 3R, 4, 4X, 12, 13
- Shock resistance — according to IEC 60068-2-27
- sinusoidal half-wave 15 g / 11 ms
- Shock resistance — for railway applications according to EN 61373
- Category 1, Class B
- Vibration resistance — according to IEC 60068-2-6
- 10 ... 500 Hz: 5 g
- Vibration resistance — for railway applications according to EN 61373
- Category 1, Class B
- Operating frequency maximum
- 1 800 1/h
- Mechanical service life (operating cycles) typical
- 1 000 000
- Reference code according to IEC 81346-2
- S
- General technical data — Net Weight
- 21 g
- Proportion of dangerous failures — with low demand rate according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NC contact according to SN 31920
- 20 %
- Proportion of dangerous failures — with high demand rate per NO contact according to SN 31920
- 50 %
- B10 value with high demand rate according to SN 31920
- 100 000
- Failure rate [FIT] with low demand rate per NC contact according to SN 31920
- 100 FIT
- T1 value for proof test interval or service life according to IEC 61508
- 20 a
- Ambient temperature — during operation
- -25 ... +70 °C
- Ambient temperature — during storage
- -40 ... +80 °C
- Installation/ mounting/ dimensions — height
- 32.3 mm
- Installation/ mounting/ dimensions — width
- 32.3 mm
- Shape of the installation opening
- round
- Mounting diameter
- 22.3 mm
- Positive tolerance of installation diameter
- 0.4 mm
- Mounting height
- 28.8 mm
- Installation width
- 32.3 mm
- Installation depth
- 25.4 mm
- Hole diameter
- 22.3 mm
- Number of switch positions
- 2
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP68
- Width opening
- 32.3 mm
- Height opening
- 28.8 mm
- Material front ring
- Plastic
- Construction type lens
- Rectangular
- Type of control element
- Wing knob
- Colour indicator light cap
- Blue
- Colour control element
- Blue
- Degree of protection (NEMA)
- 4X
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011209956186
- SAP 1000688581
- Code 8297304
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS 3RM1 Reversing Starter, 1.6-7.0A, 3 kW / 400 V, 110-230V, Spring Terminals
3RM1207-2AA14
Siemens
Siemens SIRIUS Motor protection circuit breaker,14 3RV2031-4BA10
Siemens

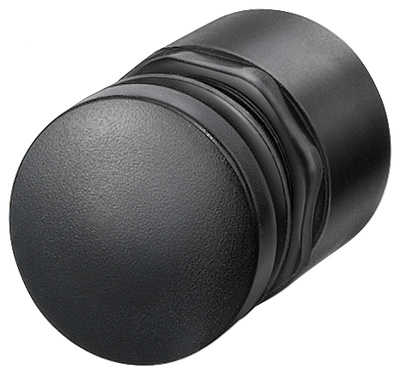

Siemens Blanking Plug black
3SB29083AA
Siemens

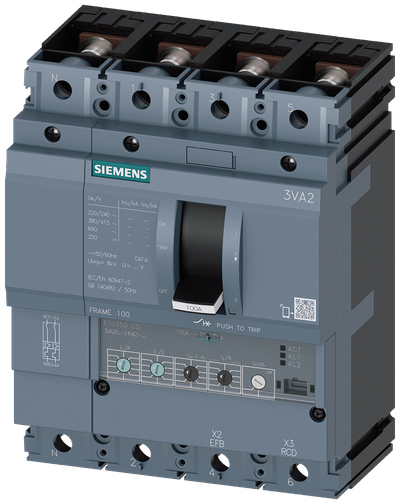

Siemens MCCB_3VA20_4P_55KA_ETU350,LSI,IN=25A,IR=10A-25A,ISD=1,5-10XIR,II=12XIN,B
3VA2025-5HN42-0AA0
Siemens

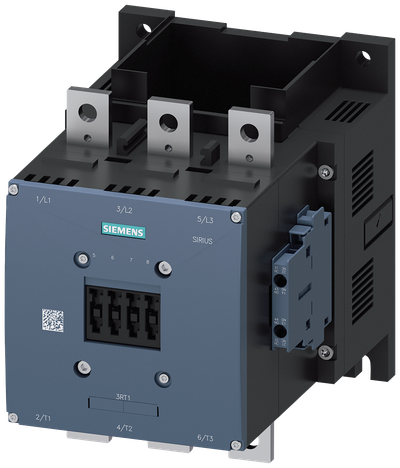

Siemens S12 contactor, 200KW/400V/AC-3 3RT1075-6LA06
Siemens

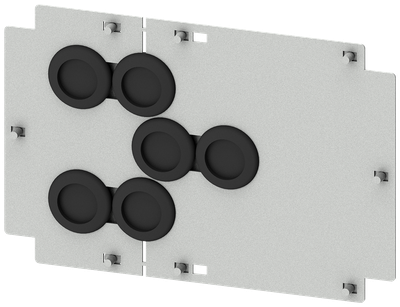

Siemens Sivacon S4 Cover Cable Terminal 3VL4 3 POLE FAST Mounting PL H200
8PQ5000-3BA73
Siemens

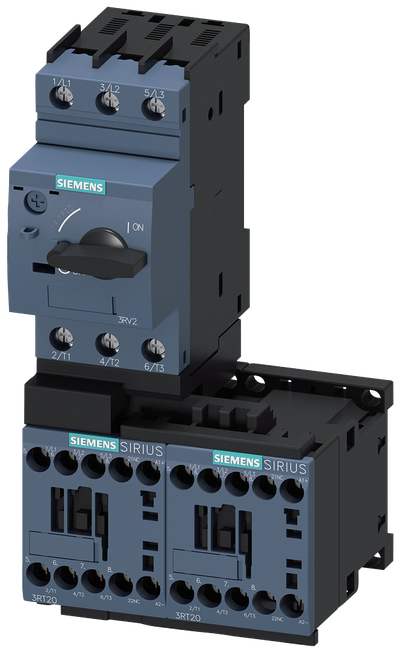

Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 0.28...0.40 A 24 V DC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NC (contactor)
3RA2210-0EA15-2BB4
Siemens

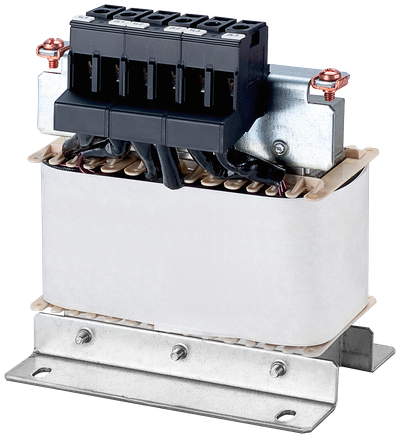

Siemens Mains choke for Sinamics 6SL3203-0CE21-0AA0
