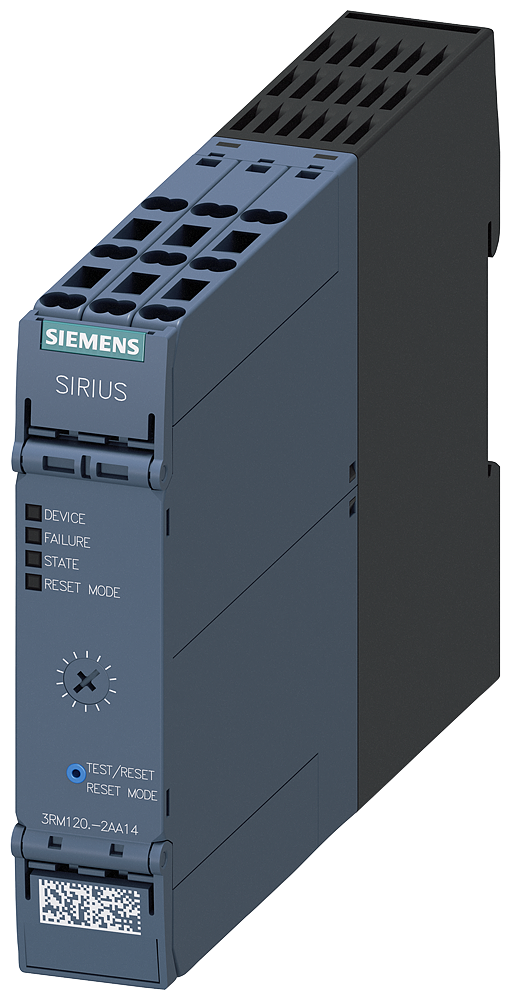

Siemens SIRIUS 3RM1 Reversing Starter, 1.6-7.0A, 3 kW / 400 V, 110-230V, Spring Terminals
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3RM1207-2AA14 Reversing switch 1.6-7.0A, 110-230V spring terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 3RM1207-2AA14
- EAN / GTIN
- 4011209914919
- Sales unit
- pcs
- Width
- 22.5 mm
- Height
- 100 mm
- Depth
- 141.6 mm
- Rated operation power at AC-3, 400 V
- 3 kW
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Suitable for emergency stop
- No
- Rated operation current Ie
- 7 A
- Number of indicator lights
- 4
- Supporting protocol for LON
- No
- Supporting protocol for TCP/IP
- No
- Supporting protocol for ASI
- No
- Supporting protocol for PROFIBUS
- No
- Supporting protocol for CAN
- No
- Supporting protocol for INTERBUS
- No
- Supporting protocol for Modbus
- No
- Supporting protocol for Data-Highway
- No
- Supporting protocol for DeviceNet
- No
- Supporting protocol for SUCONET
- No
- Supporting protocol for other bus systems
- No
- External reset possible
- Yes
- Suitable for rail mounting
- Yes
- Degree of protection (IP)
- IP20
- Supporting protocol for SERCOS
- No
- Supporting protocol for INTERBUS-Safety
- No
- Release class
- CLASS 10 A
- Supporting protocol for AS-Interface Safety at Work
- No
- Supporting protocol for DeviceNet Safety
- No
- Supporting protocol for EtherNet/IP
- No
- Supporting protocol for Foundation Fieldbus
- No
- Supporting protocol for PROFINET CBA
- No
- Supporting protocol for PROFINET IO
- No
- Supporting protocol for PROFIsafe
- No
- Supporting protocol for SafetyBUS p
- No
- Voltage type for actuating
- AC/DC
- Rated operation power at AC-3, 230 V, 3-phase
- 1.5 kW
- Rated power, 460 V, 60 Hz, 3-phase
- 2.206 kW
- Rated operation current at AC-3, 400 V
- 7 A
- Ambient temperature, upper operating limit
- 50 °C
- Temperature compensated overload protection
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 4011209914919
- SAP 1000333474
- Code 81077941
Product Documentation
More from Siemens
Siemens
Siemens SIRIUS Motor protection circuit breaker,14 3RV2031-4BA10
Siemens
Siemens Blanking Plug black
3SB29083AA
Siemens
Siemens MCCB_3VA20_4P_55KA_ETU350,LSI,IN=25A,IR=10A-25A,ISD=1,5-10XIR,II=12XIN,B
3VA2025-5HN42-0AA0
Siemens
Siemens S12 contactor, 200KW/400V/AC-3 3RT1075-6LA06
Siemens
Siemens Sivacon S4 Cover Cable Terminal 3VL4 3 POLE FAST Mounting PL H200
8PQ5000-3BA73
Siemens
Siemens SIRIUS Load feeder fuseless, Reversing duty 400 V AC, Size S00 0.28...0.40 A 24 V DC screw terminal for installation on standard mounting rail (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NC (contactor)
3RA2210-0EA15-2BB4
Siemens
Siemens Mains choke for Sinamics 6SL3203-0CE21-0AA0
Siemens
Siemens SITRANS pressure transmitter 7MF1572-8AB
Technical guides
- Motor Starter Finder — Direct-On-Line, Reversing, Star-Delta and Hybrid Starters (Siemens SIRIUS 3RA2 / 3RM1, Schneider TeSys LE1D / TeSys U, Eaton EMS2, Phoenix Contact ELR) by Current Setting
- Siemens SIRIUS 3RV / 3RT Motor Starter Coordination (IEC 60947-4-1)
- Siemens Low-Voltage Code Decoder — 3RT, 3RV, 3RU, 3VA, 5SL and 3SU Explained
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3RM1207-2AA14?
- 3RM1207-2AA14 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3RM1207-2AA14.
- What is the HS code for 3RM1207-2AA14?
- The customs tariff (HS) code for 3RM1207-2AA14 is 8537.10.
- Who manufactures 3RM1207-2AA14?
- 3RM1207-2AA14 is a Siemens product in the Drives & Controllers range.
- Is a datasheet available for 3RM1207-2AA14?
- Yes — the 3RM1207-2AA14 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3RM1207-2AA14?
- The minimum order quantity is 1.
- Is 3RM1207-2AA14 available?
- Yes — 3RM1207-2AA14 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
