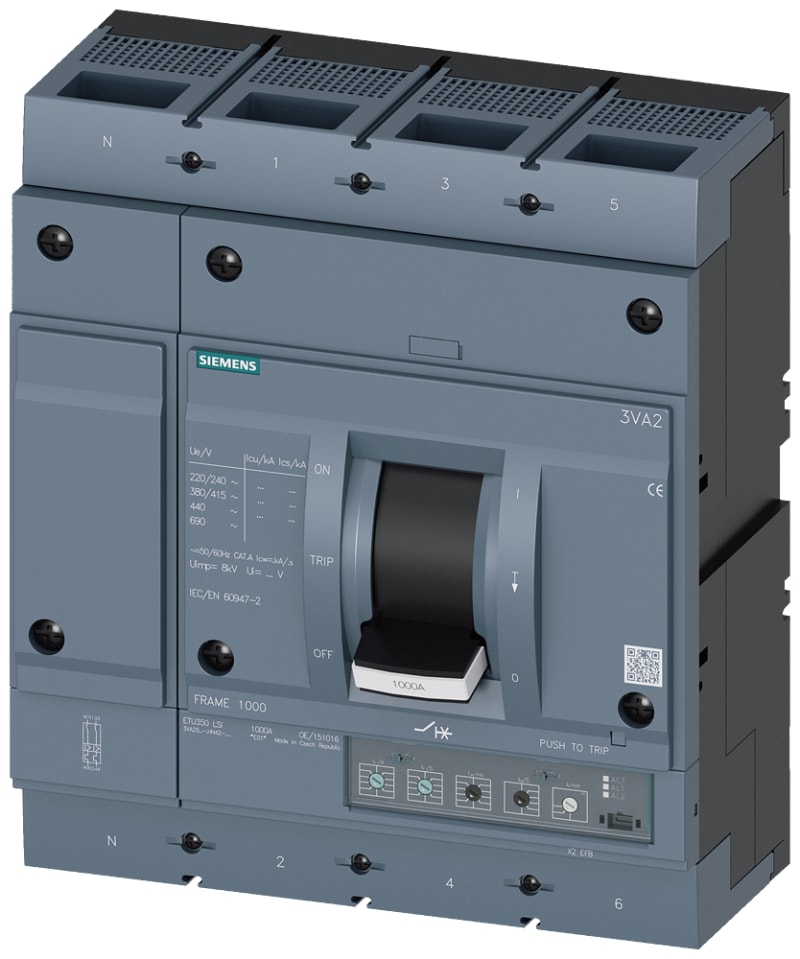

Siemens MCCB_3VA25_4P_55KA_ETU350,LSI PROTECTION, IN=1000A, IR=400A-1000A, ISD=1,5-10XIR, II=10XIN, bolt
Pricing
Request a quote
We reply within 24 hours
Product Description
Siemens 3VA2510-5HN420-0AA0 MCCB_3VA25_4P_55KA_ETU350,LSI PROTECTION, IN=1000A, IR=400A-1000A, ISD=1,5-10xIR, II=10xIN, bolt.
Technical Specifications
- Manufacturer part number (MPN)
- 3VA2510-5HN420-0AA0
- EAN / GTIN
- 4042948836071
- Sales unit
- pcs
- Rated current
- 1000 A
- Rated permanent current Iu
- 1000 A
- With integrated under voltage release
- No
- Number of poles
- 4
- Overload release current setting
- 400–1000 A
- Rated voltage
- 690 V
- Power loss
- 330 W
- Degree of protection (IP)
- IP40
- Position of connection for main current circuit
- Front side
- Motor drive integrated
- No
- Type of electrical connection of main circuit
- Screw connection
- Type of control element
- Rocker lever
- With switched-off indicator
- No
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
- 55 kA
- Adjustment range short-term delayed short-circuit release
- 1500–10000 A
- Adjustment range undelayed short-circuit release
- 10000 A
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Integrated earth fault protection
- No
- Motor drive optional
- No
- Device construction
- Built-in device slide-in technique (withdrawable)
- DIN rail (top hat rail) mounting optional
- Yes
- Complete device with protection unit
- Yes
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 4042948836071
- SAP 1200015718
- Code 81383303
Product Documentation
More from Siemens
Siemens
Siemens Current transformer 200/5A 5VA K0,5
4NC5122-2DE21
Siemens
Siemens Contactor, AC3: 55KW/400V, 1NO+1NC, 20-33VAC/DC, 3-Pole, 3NO 3RT2047-1NB30
Siemens
Siemens SIRIUS Selector switch, illuminable, 22 mm, round, plastic, blue, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30H/13:30H
3SU1002-2BF50-0AA0
Siemens
Siemens SIRIUS 3RM1 Reversing Starter, 1.6-7.0A, 3 kW / 400 V, 110-230V, Spring Terminals
3RM1207-2AA14
Siemens
Siemens SIRIUS Motor protection circuit breaker,14 3RV2031-4BA10
Siemens
Siemens Blanking Plug black
3SB29083AA
Siemens
Siemens MCCB_3VA20_4P_55KA_ETU350,LSI,IN=25A,IR=10A-25A,ISD=1,5-10XIR,II=12XIN,B
3VA2025-5HN42-0AA0
Siemens
Siemens S12 contactor, 200KW/400V/AC-3 3RT1075-6LA06
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3VA2510-5HN420-0AA0?
- 3VA2510-5HN420-0AA0 can be ordered from cballast.com as a Siemens catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Siemens product?
- The manufacturer part number is 3VA2510-5HN420-0AA0.
- What is the HS code for 3VA2510-5HN420-0AA0?
- The customs tariff (HS) code for 3VA2510-5HN420-0AA0 is 8536.20.
- Who manufactures 3VA2510-5HN420-0AA0?
- 3VA2510-5HN420-0AA0 is a Siemens product in the Electrical Components range.
- Is a datasheet available for 3VA2510-5HN420-0AA0?
- Yes — the 3VA2510-5HN420-0AA0 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3VA2510-5HN420-0AA0?
- The minimum order quantity is 1.
- Is 3VA2510-5HN420-0AA0 available?
- Yes — 3VA2510-5HN420-0AA0 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
